Каталог запасных частей к технике: Yuchai YC6B125-T21. 1640H-1010000/08 Oil Collector Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B7615-1002000/03 Cylinder Block Assembly B7615-1002200/18 Gear Housing Part B7605-1003000/09 Cylinder Head& Cylinder Head Cover Assembly 340-1004000/03 Piston Connecting Rod Assembly 1640H-1005000/15 Crankshaft and Flywheel Assembly 630-1006000A/02 Camshaft Assembly 330-1007000/08 Valve Tappet Assembly 1640H-1009000/08 Oil Sump Assembly 1640H-1010000/08 Oil Collector Assembly B3000-1011000/06 Oil Pump Subassembly 1640H-1012000/06 Oil Strainer Assembly 1640H-1013000/17 Oil Radiator Assembly 1640H-1600000/03 Flywheel Housing Assembly 311-1014000/05 Breather Parts 311-1008100/07 and B7615-1008500/07 Intake Pipe and Intake Connecting Pipe Part 640-1008200/05 Exhaust Pipe Part 1640H-1201000/07 Muffler Assembly B7615-1104000/08 Fuel Pipeline Assembly B7735-1105000/06 Fuel Filter Assembly B7663-1109000/06 Air Filter Assembly B7606-1111000/08 Fuel Injection Pump Assembly J3400-1112000/04 Injector Assembly 1640H-1303000/13 Water Outlet Pipe Assembly 6105QA-1305000/08 Water Outlet Valve Assembly 340-1306000/02 Thermostat Assembly 1640H-1307000/06 Water Pump Subassembly 310-1308000/04 Fan Parts 340-3509000/12 Pneumatic Air Compressor Assembly B8601-3701000/01 Alternator Assembly 340-3708000/10 Starter Assembly BB600-3904000/01 Nameplate

1

2

3

4

5

6

7

8

9

10

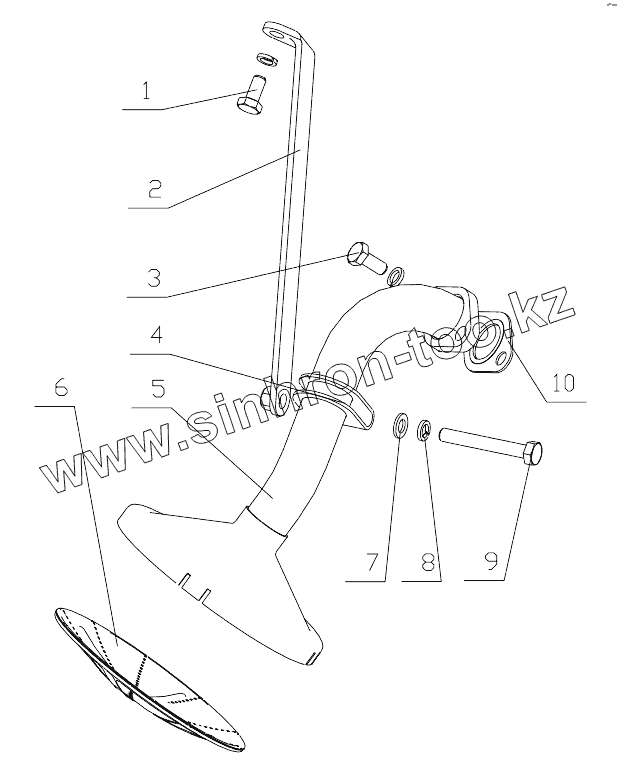

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Q/YC1820816TF2		Bolt
2	641-1010150		Сварной узел кронштейна трубного хомута
3	Q/YC1820820TF2		Бoлт M8x20
4	430-1010002		Трубный хомут
5	1640H-1010100		Oil suction pipe part
6	6105QA-1010130B		Сетка маслоприёмника в сборе
7	Q40008		Шайба 8
8	Q40308		Шайба 8
9	Q150B0860TF2		Болт М8х60
10	B7503-1010150		Gasket union part

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
