Каталог запасных частей к технике: Yuchai YC6B125-T20. 340-1004000/02 Piston Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B7626-1001000/02 Engine Suspension Assembly B8600-1002000/10 Cylinder Block Assembly BB0G4-1002200/03 Gear Housing Part B7605-1003000/04 Cylinder Head & Cylinder Head Cover Assembly 340-1004000/02 Piston Connecting Rod Assembly B7637-1005000/03 Crankshaft Vibration Damper Assembly 630-1006000A/03 Camshaft Assembly 330-1007000/07 Valve Tappet Assembly 311-1008100/03 & B7615-1008500/05 Inlet pipe & inlet connecting pipe parts 640-1008200/06 Exhaust Pipe Part 340-1009000/05 Oil Sump Assembly 340-1010000/05 Oil Collector Assembly B3000-1011000/05 Oil Pump Subassembly 1640H-1012000/06 Oil Strainer Assembly B7604-1013000/11 Oil Radiator Assembly 311-1014000/05 Breather Part B7626-1104000/11 Fuel Pipeline Assembly B7735-1105000/06 Fuel Filter Assembly B7652-1109000/03 Air Filter Assembly 340-1111000/11 Fuel Injection Pump Assembly J3400-1112000/04 Injector Assembly B7626-1201000/05 Muffler Assembly B7604-1303000/12 Radiator Water Pipe & Hose Assembly 6105QA-1305000/06 Water Outlet Valve Assembly 340-1306000/03 Thermostat Assembly 311-1307000/04 Water Pump Assembly 310-1308000/05 Fan Parts 313-1600000/03 Power Output Assembly 340-3509000/12 Pneumatic Air Compressor Assembly B7641-3701000/02 Generator Assembly B7641-3708000/03 Starter Assembly BB000-3904000/01 Data Plate

330-1004016

1

2

3

4

5

6

7

8

9

10

11

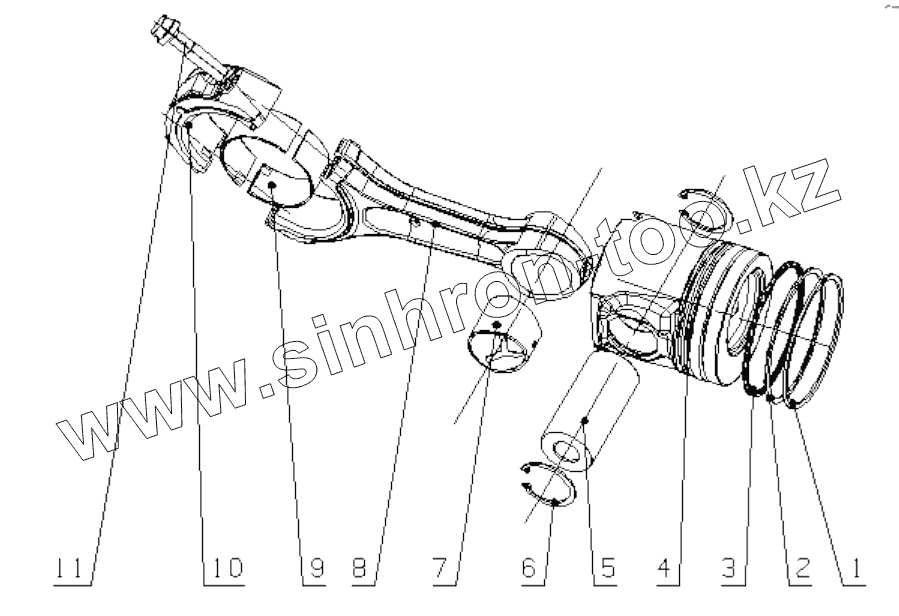

Позиция на иллюстрации	Заводской номер детали		Название детали
330-1004016	330-1004016		Узел поршневых колец
1	B3000-1004016		Piston ring subassembly
2	B3000-1004017		Second air ring
3	B3000-1004030		Oil ring assembly
4	340-1004001		Поршень
5	6105Q-1004019B		Поршневой палец
6	Q43038		Стопорное кольцо 40
7	630-1004052		Connecting rod bushing
8	6105QA-1004051B		Connecting rod shank
9	330-1004022		Шатунный вкладыш
10	6105Q-1004053A		Connecting rod cap
11	6105Q-1004053B		Connecting rod bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
