Каталог запасных частей к технике: Yuchai YC6B125-T11. B7615-3701000/03 Generator Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B7615-1002000/07 Cylinder Block Assembly B7615-1002200/18 Gear Housing Part B7605-1003000/09 Cylinder Head and Cylinder Head Cover Assembly 340-1004000/03 Piston Connecting Rod Assembly 1640H-1005000/15 Crankshaft and Flywheel Assembly 630-1006000A/02 Camshaft Assembly 330-1007000/08 Valve Tappet Assembly 1640H-1009000/08 Oil Sump Assembly 1640H-1010000/08 Oil Collector Assembly B3000-1011000/06 Oil Pump Subassembly 1640H-1012000/06 Oil Strainer Assembly 1640H-1013000/17 Oil Radiator Assembly 1640H-1600000/03 Flywheel Housing Assembly 311-1014000/05 Breather Parts 311-1008100/07 and B7615-1008500/07 Intake Pipe and Intake Connecting Pipe Part 640-1008200/07 Exhaust Pipe Part B7615-1201000/04 Muffler Assembly B7615-1104000/08 Fuel Pipeline Assembly B7735-1105000/06 Fuel Filter Assembly B7615-1109000/02 Air Filter Assembly B7606-1111000/08 Fuel Injection Pump Assembly J3200-1112000/05 Injector Assembly B7615-1115000/01 Fuel Shut-off Mechanism Assembly 1640H-1303000/13 Water Outlet Pipe Assembly 6105QA-1305000/08 Water Outlet Valve Assembly 340-1306000/02 Thermostat Assembly 1640H-1307000/06 Water Pump Subassembly 310-1308000/04 Fan Parts 340-3509000/12 Pneumatic Air Compressor Assembly B7615-3701000/03 Generator Assembly 340-3708000/09 Starter Assembly B7615-3800000/01 Instrument Sensor Assembly B9D00-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

11

12

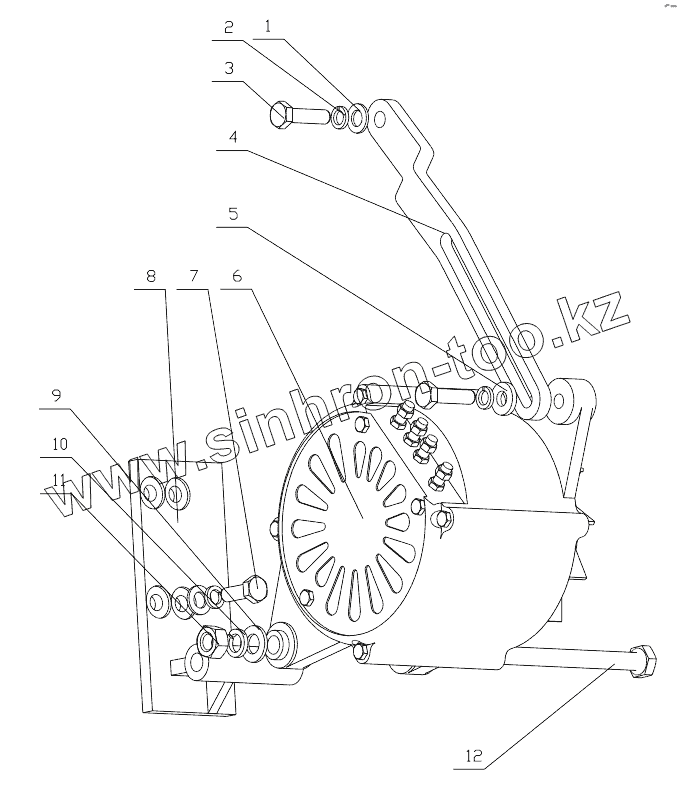

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Q40108		Шайба 8
2	Q40308		Шайба 8
3	Q150B0830		Бoлт M8x30
4	6QA6-3701032		Установочная планка генератора
5	6105Q-3509013		Шайба
6	397-3701100		Alternator
7	Q150B0822		Болт M8x22
8	6QA6-3701020A		Сварной узел кронштейна генератора
9	Q40110		Шайба 10
10	Q40310		Шайба 10
11	Q340B10		Гайка М10
12	Q150B10130		Болт М10х130
13	Q150B0840		Болт M8x40
14	Q340B08		Гайка М8

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
