Каталог запасных частей к технике: Yuchai YC4G190N-50. G3R00-1004000/03 Piston & Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано G0899-1001000/02 Engine Suspension Assembly G2RJA-1002000/03 Cylinder Block Assembly G2RJA-1002200/02 Timing Gear Housing Assembly G2S0B-1003000/01 Cylinder Head & Cylinder Head Cover Assembly G3R00-1004000/03 Piston & Connecting Rod Assembly G2RYB-1005000/01 Crankshaft Vibration Damper Assembly G2K00-1006000/01 Camshaft Assembly G2R00-1007000/01 Valve Train System Assembly G2S0B-1008100/01 & G2K00-1008500/04 Intake Manifold Parts & Intake Connecting Pipe Parts E05FA-1008200/03 E05FA-1008400/03 Exhaust Manifold Parts & Exhaust Manifold Cover Parts G0226-1009000/04 Oil Sump Assembly G2JYB-1028000/02 Oil Dipstick Assembly G08S1-1010000/04 Oil Strainer Assembly G2000-1011000/01 Oil Pump Assembly G2HXB-1012000/01 Oil Filter Assembly G2JYB-1013000/02 Oil Cooler Assembly G2S0B-1014000/02 Crankcase Ventilation Device Assembly G2S0B-1107000/01 Low Pressure Gas Strainer Assembly J5700-1107000/08 Low Pressure Gas Strainer Assembly G2S0B-1113000/03 Gas Supply Device Assembly G2S0B-1118000/03 Turbocharger Assembly D4AYA-1205000/02 Catalytic Convertor Assembly G2RJA-1305000/03 Water Drain Cock Assembly G2S0B-1306000/01 Thermostat Assembly G2S0B-1307000/01 Water Pump Assembly G2S0B-1308000/01 Fan Assembly G2S0B-1600000/03 Power Output Assembly G2S0B-3407000/01 Steering Pump Assembly G2S0B-3509000/02 Pneumatic Air Compressor Assembly G2R00-3705000/03 Ignition System Assembly G2S0B-3701000/01 Alternator Assembly G2HSA-3708000/01 Starter Assembly G2S0B-3823000/02 Control System Assembly G2S0B-3800000/03 Instrument & Sensor Assembly C0000-3904000/01 Nameplate Assembly

1

2

3

3

4

5

6

7

8

9

10

11

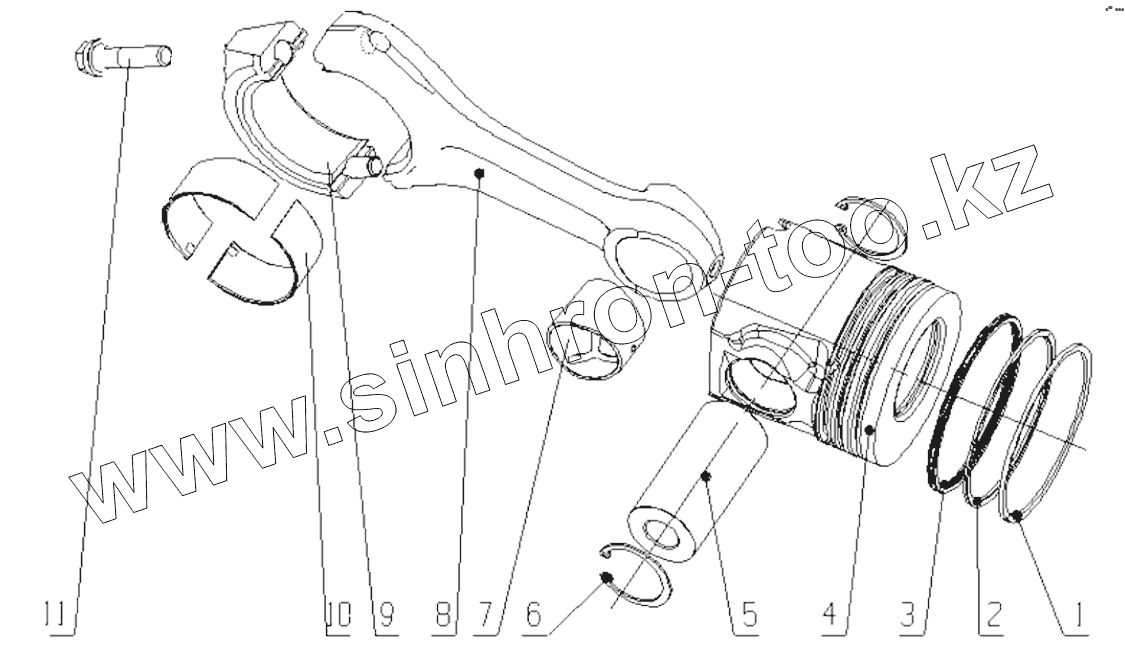

Позиция на иллюстрации	Заводской номер детали		Название детали
1	G6400-1004002C		Air ring
2	G6400-1004003		Кольцо маслосъемное
3	G6400-1004100		Кольцо
3	G6400-1004002C		Air ring
4	G3R00-1004001SF2		Piston
5	G3R00-1004004		Piston pin
6	Q43040		Стопорное кольцо 40
7	G3R00-1004202		Connecting rod bushing
8	G3R00-1004201		Connecting rod shank
9	EG200-1004007		Connecting rod bearing shell
10	G4700-1004019A		Корпус подшипника шатуна
11	G3R00-1004204		Connecting rod bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
