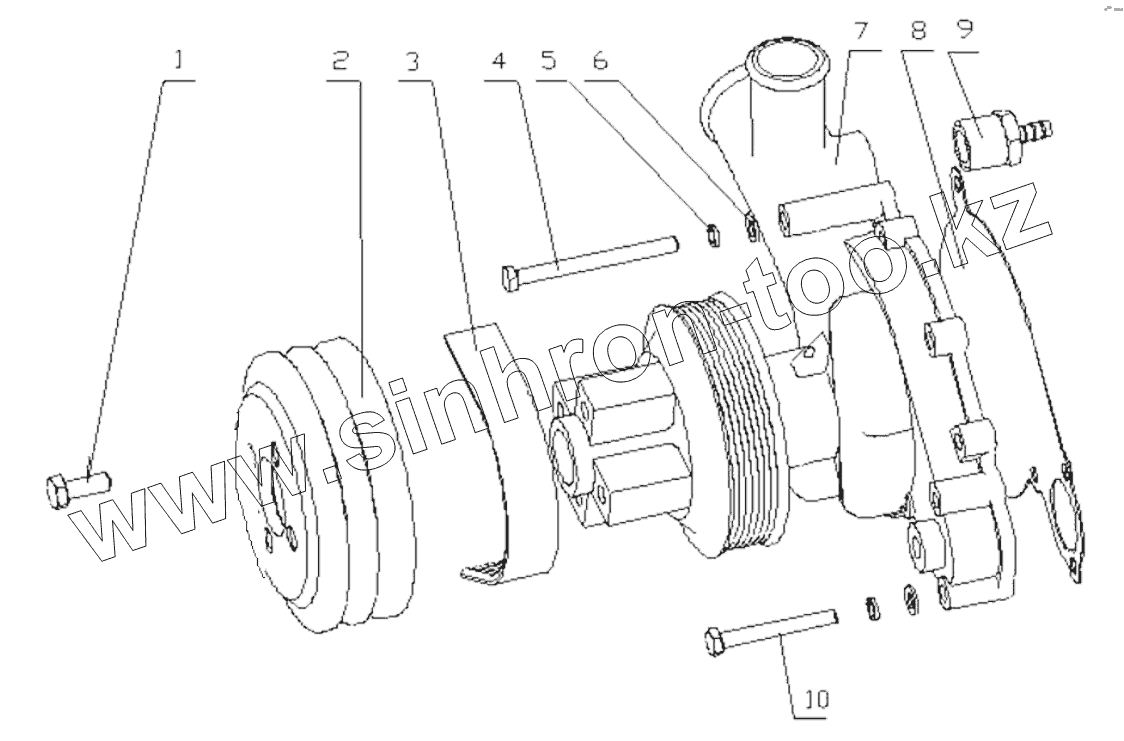

Каталог запасных частей к технике: Yuchai YC4G180N-40. G2BHA-1307000/09 Water Pump Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано G2CLA-1002000/05 Cylinder Block Assembly G2CYA-1002200A/02 Timing Gear Housing Assembly G2BHA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly G6400-1004000/08 Piston and Connecting Rod G2C0B-1005000/03 Crankshaft Vibration Damper Assembly G2J00-1006000/02 Camshaft Assembly G2C00-1007000/01 Valve Train System Assembly G2J00-1008100/07 and G2J00-1008500/03 Intake Manifold Parts and Intake Connecting Pipe Parts G2J00-1008200/05 and G2J00-1008400/01 Exhaust Manifold Parts and Exhaust Pipe Shield Parts G1200-1009000/02 Oil Sump Assembly E0817-1028000/01 Oil Dipstick Assembly G0100-1010000/08 Oil Strainer G2000-1011000/01 Oil Pump Assembly A3100-1012000/02 Oil Filter Assembly G0100-1013000/05 Oil Cooler Assembly G2B00-1014000/02 Crankcase Ventilation Assembly G040J-1001000/02 Engine Suspension Assembly G2J0D-1205000/01 Catalytic Convertor Assembly G2JFA-1113000/03 Gas Supply Device Assembly G2JFA-1118000/01 Turbocharger Assembly J5700-1107000/08 Low Pressure Gas Filter Assembly J5400-1107000/06 Gas Filter Assembly G0206-1305000/10 Water Drain Cock Assembly G2C97-1306000/03 Thermostat Assembly G2BHA-1307000/09 Water Pump Assembly G08YB-1600000/03 Power Output Assembly G2HFA-3407000/05 Steering Pump Assembly G2G0B-3509000/04 Pneumatic Air Compressor Assembly G0804-3701000/11 Alternator Assembly G2C00-3705000/21 Ignition System Assembly E24FH-3708000/01 Starter Assembly E0807-3800000/01 Instrument and Sensor Assembly G2J86-3823000/01 Control System Assembly G2J00-3904000/01 Nameplate Assembly

1

2

3

4

5

6

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	Q1841025TF2		Болт М10х25
2	G0211-1307104		Water pump additional belt pulley
3	G0206-1307012A		Ремень мультиклина 8PK1074
4	Q150B0890TF2		Болт M8x90
5	Q40108		Шайба 8
6	Q40308		Шайба 8
7	G2C00-1307020B		Water pump
8	G1000-1307001		Water pump washer
9	G6800-1307042		Трубка сустава нагретой воды I
10	Q150B0865TF2		Болт M8x65

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
