G08YB-1600000/03 Power Output Assembly

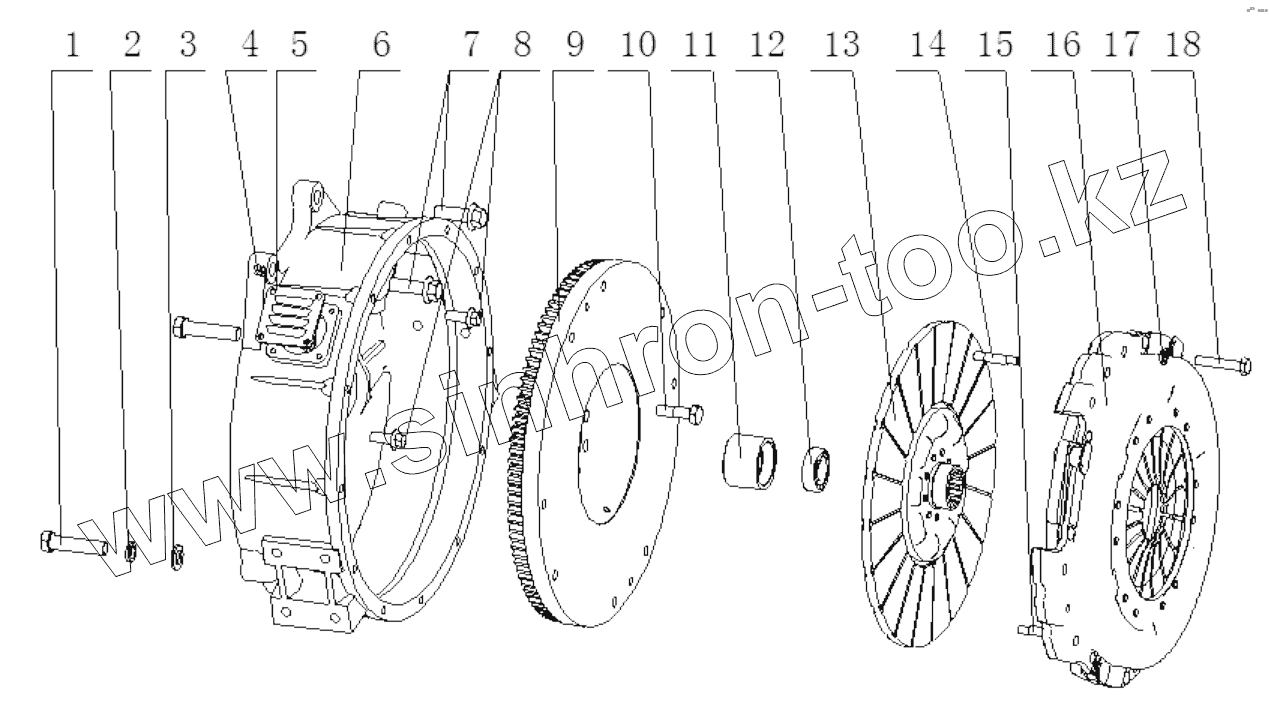

Каталог запасных частей к технике: Yuchai YC4G180N-40. G08YB-1600000/03 Power Output Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
G2CLA-1002000/05 Cylinder Block Assembly
G2CYA-1002200A/02 Timing Gear Housing Assembly
G2BHA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly
G6400-1004000/08 Piston and Connecting Rod
G2C0B-1005000/03 Crankshaft Vibration Damper Assembly
G2J00-1006000/02 Camshaft Assembly
G2C00-1007000/01 Valve Train System Assembly
G2J00-1008100/07 and G2J00-1008500/03 Intake Manifold Parts and Intake Connecting Pipe Parts
G2J00-1008200/05 and G2J00-1008400/01 Exhaust Manifold Parts and Exhaust Pipe Shield Parts
G1200-1009000/02 Oil Sump Assembly
E0817-1028000/01 Oil Dipstick Assembly
G0100-1010000/08 Oil Strainer
G2000-1011000/01 Oil Pump Assembly
A3100-1012000/02 Oil Filter Assembly
G0100-1013000/05 Oil Cooler Assembly
G2B00-1014000/02 Crankcase Ventilation Assembly
G040J-1001000/02 Engine Suspension Assembly
G2J0D-1205000/01 Catalytic Convertor Assembly
G2JFA-1113000/03 Gas Supply Device Assembly
G2JFA-1118000/01 Turbocharger Assembly
J5700-1107000/08 Low Pressure Gas Filter Assembly
J5400-1107000/06 Gas Filter Assembly
G0206-1305000/10 Water Drain Cock Assembly
G2C97-1306000/03 Thermostat Assembly
G2BHA-1307000/09 Water Pump Assembly
G08YB-1600000/03 Power Output Assembly
G2HFA-3407000/05 Steering Pump Assembly
G2G0B-3509000/04 Pneumatic Air Compressor Assembly
G0804-3701000/11 Alternator Assembly
G2C00-3705000/21 Ignition System Assembly
E24FH-3708000/01 Starter Assembly
E0807-3800000/01 Instrument and Sensor Assembly
G2J86-3823000/01 Control System Assembly
G2J00-3904000/01 Nameplate Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q150B1670TF2
Болт M16x70
2
Q40316
Шайба 16
3
Q40116
Шайба 16
4
Q1840612
Болт
5
B3000-1600021
Крышка
6
G0200-1600015
Картер маховика
7
Q1841645TF2
Болт M16x45
8
Q1841230TF2
Болт М12х30
9
G0200-1005360
Сборочный узел кольца передачи маховика
10
A70A-1005044B
Flywheel bolt
11
G0200-1005065
Опора подшипника
12
GB/T276-6205-2RS1
Ball bearing
13
J4105-1600740C
Clutch and driven plate subassembly
14
A3028-1600202A
Центровочный штифт
15
A3028-1600203A
Центровочный штифт
16
A3028-1600100A
Части кожуха сцепления и нажимного диска
17
Q40312
Шайба 12
18
Q150B1260TF2
Болт M12x60
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
