G0804-3701000/11 Alternator Assembly

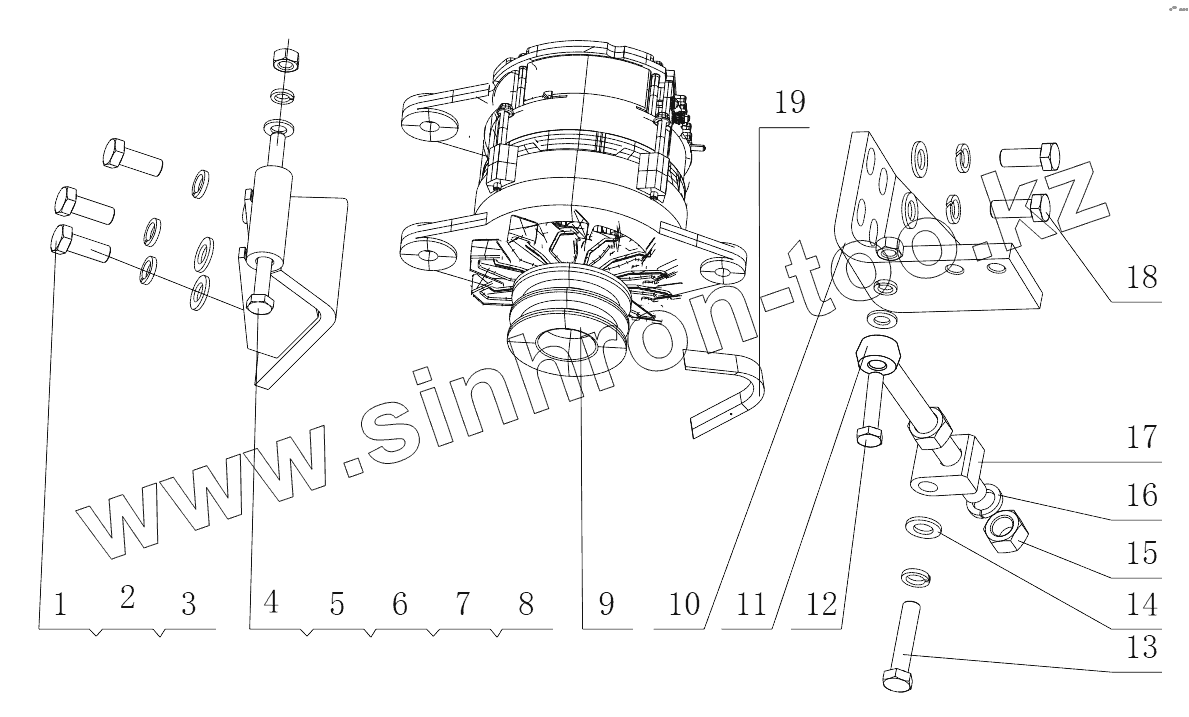

Каталог запасных частей к технике: Yuchai YC4G180N-40. G0804-3701000/11 Alternator Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
G2CLA-1002000/05 Cylinder Block Assembly
G2CYA-1002200A/02 Timing Gear Housing Assembly
G2BHA-1003000/03 Cylinder Head and Cylinder Head Cover Assembly
G6400-1004000/08 Piston and Connecting Rod
G2C0B-1005000/03 Crankshaft Vibration Damper Assembly
G2J00-1006000/02 Camshaft Assembly
G2C00-1007000/01 Valve Train System Assembly
G2J00-1008100/07 and G2J00-1008500/03 Intake Manifold Parts and Intake Connecting Pipe Parts
G2J00-1008200/05 and G2J00-1008400/01 Exhaust Manifold Parts and Exhaust Pipe Shield Parts
G1200-1009000/02 Oil Sump Assembly
E0817-1028000/01 Oil Dipstick Assembly
G0100-1010000/08 Oil Strainer
G2000-1011000/01 Oil Pump Assembly
A3100-1012000/02 Oil Filter Assembly
G0100-1013000/05 Oil Cooler Assembly
G2B00-1014000/02 Crankcase Ventilation Assembly
G040J-1001000/02 Engine Suspension Assembly
G2J0D-1205000/01 Catalytic Convertor Assembly
G2JFA-1113000/03 Gas Supply Device Assembly
G2JFA-1118000/01 Turbocharger Assembly
J5700-1107000/08 Low Pressure Gas Filter Assembly
J5400-1107000/06 Gas Filter Assembly
G0206-1305000/10 Water Drain Cock Assembly
G2C97-1306000/03 Thermostat Assembly
G2BHA-1307000/09 Water Pump Assembly
G08YB-1600000/03 Power Output Assembly
G2HFA-3407000/05 Steering Pump Assembly
G2G0B-3509000/04 Pneumatic Air Compressor Assembly
G0804-3701000/11 Alternator Assembly
G2C00-3705000/21 Ignition System Assembly
E24FH-3708000/01 Starter Assembly
E0807-3800000/01 Instrument and Sensor Assembly
G2J86-3823000/01 Control System Assembly
G2J00-3904000/01 Nameplate Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q150B1230TF2
Болт M12x30
2
Q40312
Шайба 12
3
A30-1007092
Шайба
4
Q150B10130
Болт М10х130
5
294-3701020A
Кронштеин стартера
6
Q40110
Шайба 10
7
Q40310
Шайба 10
8
Q340B10
Гайка М10
9
A4137-3701010
Генератор
10
G0812-3701250
Сборочный узел сварной устанновленной пластины
11
294-3701031
Регулировочный болт
12
Q150B1045TF2
Болт M10x45
13
Q150B1255TF2
Болт M12x55
14
Q40112
Шайба 12
15
Q340B16
Гайка 16
16
Q40316
Шайба 16
17
497E-3701032
Блок скольжения
18
Q150B1225
Болт М12х25
19
YC80-AV13-1050BG
V-belt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
