F50J1-3701000/01 Alternator Assembly

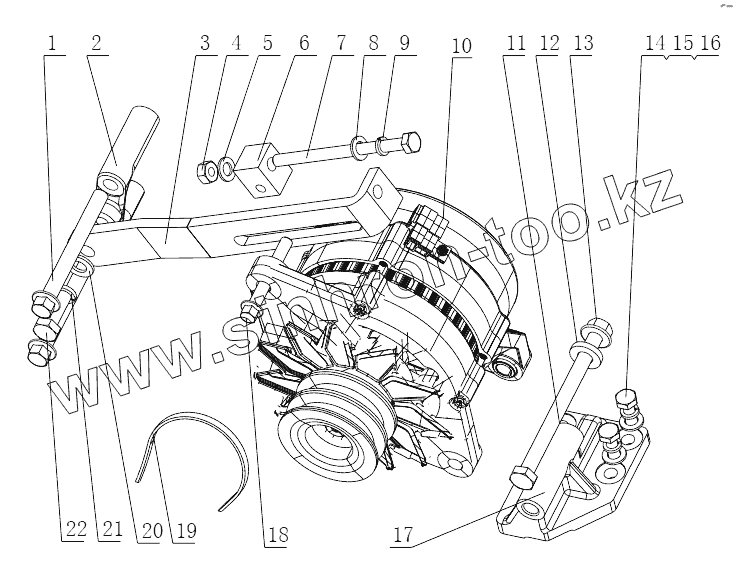

Каталог запасных частей к технике: Yuchai YC4F90-30. F50J1-3701000/01 Alternator Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
YC4108C (D7400) (2010)
YC4108ZG (D7802) (2010)
YC4112ZQ (ZLQ) (2002)
YC4A100-T301 (A515TB) (2021)
YC4A115Z-T20 (2013)
YC4B105Z-T20 (2016)
YC4D (2005)
YC4D120-20 (2008)
YC4D120-20 (D1007) (2010)
YC4D120-30 (D22J1) (2010)
YC4D130-20 (D08FL) (2010)
YC4D130-30 (D2102) (2010)
YC4D140N-50 (2018)
YC4D80-T10 (2009)
YC4D80-T20 (2013)
YC4E135-21 (E02D1) (2010)
YC4E140-20 (E12N2) (2010)
YC4E140-30 (E24FB) (2010)
YC4E150-20 (E05D1) (2010)
YC4E160-20 (E04F1) (2010)
YC4E180-30 (E2100) (2010)
YC4F100-20 (F31D8) (2010)
YC4F115-20 (F30D8) (2010)
YC4F115-30 (F50D1) (2010)
YC4F90-23 (F60LA) (2010)
YC4F90-30 (2008)
YC4F90-30 (F51D1) (2010)
YC4FA130-30 (FC7LA) (2010)
YC4G180-20 (2014)
YC4G180-20 (G0803) (2008)
YC4G180-20 (G0803) (2010)
YC4G180-30 (G2H0B) (2010)
YC4G180N-30 (G2C0H-T1) (2010)
YC4G180N-40 (2014)
YC4G190N-50 (2014)
YC4G200-30 (G2GQA) (2010)
YC4G220-20 (G20JA) (2010)
YC4ND27-90-30 (FD2D1) (2010)
YC6108G (2008)
YC6A240-20 (A3515) (2010)
YC6A240-30 (A68SA) (2010)
YC6A260-20 (A44AB) (2010)
YC6A260-30 (A64YA) (2010)
YC6B125-T10 (B7626) (2010)
YC6B125-T11 (2016)
YC6B125-T20 (2010)
YC6B125-T21 (2016)
YC6G220P-30 (G3FQA) (2010)
YC6G230N-30 (G69MA) (2010)
YC6G240-20 (G52MA) (2010)
YC6G240-30 (2008)
YC6G240-30 (G5BSB-T2) (2010)
YC6G260N-20 (G64HA) (2010)
YC6G260N-30 (G66YA-T12) (2010)
YC6G260N-50 (2015)
YC6G270-20 (G46MB) (2010)
YC6G270-30 (G65QA) (2010)
YC6G300-20 (G4704) (2010)
YC6J125Z-T20 (2010)
YC6J125Z-T21 (2015)
YC6J125Z-T22 (2014)
YC6J180-21 (J49D1) (2010)
YC6J190-20 (J41D7) (2010)
YC6J190-T301 (2021)
YC6J210-20 (J42SA) (2010)
YC6J210N-20 (J530C) (2010)
YC6J210N-52 (2018)
YC6J220-50 (2017)
YC6J225N-52 (2014)
YC6J230-20 (J4090) (2010)
YC6J245-30 (J61LA) (2010)
YC6J245-42 (J010N-T1) (2010)
YC6J245-50 (2017)
YC6K (2019)
YC6K440N-50 (2013)
YC6L250L-D30 (L7001) (2010)
YC6L260-30 (2008)
YC6L280-30 (L38MA) (2010)
YC6L280N-52 (2014)
YC6L310-30 (L360A) (2010)
YC6L310-50 (2017)
YC6L330-20 (L33YA) (2010)
YC6L330-30 (L47SA) (2010)
YC6L350-20 (L30JA) (2010)
YC6M220G (M3020) (2010)
YC6M280-20 (M36T1) (2010)
YC6M290N-30 (M2CD1) (2010)
YC6M290N-30 (M2CE1) (2010)
YC6M320N-30 (M2BD1) (2010)
YC6M340-20 (2009)
YC6M340N-30 (M2AE1) (2010)
YC6M360-30 (M6298) (2010)
YC6M390-30 (M6000) (2010)
YC6MK320N-50 (2013)
YC6MK340N-50 (2013)
YC6MK375N-40 (2014)
Схема
>
Не выбрано
F50D1-1002000/05 Cylinder Block Assembly
F6000-1002100/04 Cylinder Block Parts
F50D1-1002200/08 Gear Housing Parts
F5001-1003000/01 Cylinder Head and Cylinder Head Cover Assembly
F5000-1004000/03 Piston and Connecting Rod Assembly
F51J1-1005000/01 Crankshaft Vibration Damper Assembly
F3700-1006000/05 Camshaft Assembly
F3000-1007000/11 Valve Train System Assembly
F31L1-1009000/03 Oil Sump Assembly
F39L1-1028000/01 Oil Dipstick Assembly
F3000-1010000A/05 Strainer Assembly
F3000-1011000/05 Oil Pump Assembly
186-1012000/04 Oil Filter
F50J1-1013000/04 Oil Cooler Assembly
F50D1-1014000/05 Crankcase Ventilation Device Assembly
F5000-1015000/06 Engine Start Assist Equipment Assembly
F30J1-1001000/01 Engine Suspension Assembly
F50J1-1104000/05 Supply System Pipeline Assembly
F50J1-1105000/09 Fuel Filter Assembly
F5000-1111000/09 Injection Pump Assembly
F5000-1112000/03 Injector Assembly
F51J1-1118000/01 Turbocharger Assembly
F50D1-1008100/05 and F50J1-1008500/03 Intake Pipe Parts and Intake Connecting Pipe Parts
F30J1-1008200/06 F3000-1008400/05 Exhaust Pipe Parts and Exhaust Pipe Cover Parts
231-1305000/06 Water Drain Switch
F50J1-1306000/07 Thermostat Assembly
F31D1-1307000/04 Water Pump Assembly
F30D3-1308000/03 Fan Assembly
F51J2-1600000/01 Power Output Assembly
F50J1-3407000/01 Steering Pump Assembly
F50D1-3509000/03 Pneumatic Air Compressor Assembly
F50J1-3701000/01 Alternator Assembly
F7200-3708000/04 Starter Assembly
F51J1-3823000/06 Control System Assembly
F50J1-3800000/02 Instrument and Sensor Assembly
F5100-3904000A/01 Nameplate Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
Позиция на иллюстрации
Заводской номер детали
Название детали
1
Q1841095TF2
Болт M10x95
2
F3100-3701242A
Пластина усилителя
3
F3100-3701241
Кронштеин накладки генератора
4
Q340B08
Гайка М8
5
Q40308
Шайба 8
6
F3100-3701204A
Регулировочный блок скольжения
7
F3100-3701203
Болт растяжения
8
Q40108
Шайба 8
9
Q40308
Шайба 8
10
F50D1-3701100
Alternator
11
Q150B10125
Болт M10x125
12
Q40310
Шайба 10
13
Q340B10
Гайка М10
14
Q40308
Шайба 8
15
Q40108
Шайба 8
16
Q150B0825TF2
Бoлт M8x25
17
F31N1-3701002B
Стойка генератора переменного тока
18
Q18408060TF2
Bolt
19
F3100-3701001
Ремень генератора
20
Q40110
Шайба 10
21
Q40310
Шайба 10
22
Q150B1030TF2
Болт M10x30
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
