Каталог запасных частей к технике: Yuchai YC4D120-20. D0200-1004000 Piston and Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано D0819-1001000 Engine suspending assembly D0708-1002000 Cylinder Block Assembly D0708-1002200 Timing Gear Housing parts D0303-1003000 Cylinder Head and Cylinder Head Cover Assembly D0200-1004000 Piston and Connecting Rod Assembly D08S1-1005000 Crankshaft Vibration Damper Assembly D30-1006000A Camshaft Assembly D30-1007000A Valve Tappet Assembly D08G2-1008000 Intake and exhaust pipe assembly D0811-1009000 Oil Sump Assembly D0302-1010000 Oil Strainer Assembly D30-1011000A Oil Pump Assembly B8800-1012000 Oil Filter Assembly D0135-1013000 Oil Cooler Assembly D1099-1014000 Crank Case Ventilation Device D0811-1104000 Fuel Supply lines Assembly D0200-1105000A Fuel Filter Assembly D0800-1111000 Fuel Injection Pump Assembly D0800-1112000 Injector Assembly D0811-1130000 Fuel Injection Pump Accessory Assembly D0803-1118000 Turbocharger Assembly D0802-1303000 Water Pipe and Hose Assembly for Radiator 631-1305000 Drainage Switch Assembly D12F1-1306000 Thermostat Assembly D0811-1307000 Water Pump Assembly D12F5-1308000 Fan Assembly D0103-1600000 Clutch Assembly D0110-3407000 Steering Pump Assembly D0110-3509000 Pneumatic Air Compressor Assembly D7001-3701000 Alternator Assembly D30-3708000 Starter Assembly D0103-3800000 Intruments and Sensors D1000-3904000 Nameplate assembly

1

2

3

3

4

5

6

7

8

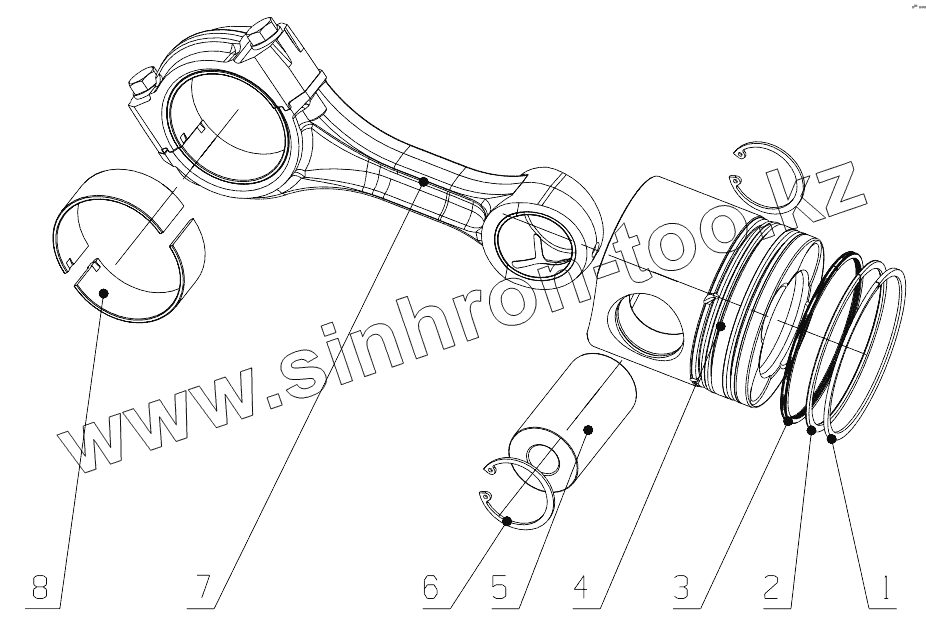

Позиция на иллюстрации	Заводской номер детали		Название детали
1	A30-1004016		Первое газоуплотнительное кольцо
2	A30-1004017		Второе газоуплотнительное кольцо
3	A30-1004030		Пылезащитное уплотнение
3	A30-1004016*		Piston ring subassembly
4	D0200-1004015A		Поршень
5	430-1004019		Штифт поршня
6	Q43040		Стопорное кольцо 40
7	E0200-1004202		Втулка шатуна
8	530-1004050		Часть шатуна

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
