Каталог запасных частей к технике: Yuchai YC4B105Z-T20. 5B8E00-1004000/04 Piston Connecting Rod Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано B8800-1001000/01 Engine Suspension Assembly 2B9XT0-1002000/01 Cylinder Block Assembly 3B9XT0-1002200/05 Gear Housing Parts B8802-1003000/06 Cylinder Head & Cylinder Head Cover Assembly 5B8E00-1004000/04 Piston Connecting Rod Assembly 6B9200-1005000/14 Crankshaft and flywheel Assembly 7D30-1006000A/06 Camshaft Assembly 8B8800-1007000/04 Valve Train Mechanism Assembly 9B9200-1008010/07 Intake Pipe Assembly 10B7NT0-1008200/03 Exhaust Pipe Parts 11B7NT0-1009000/02 Oil Sump Assembly 12B8800-1028000/01 Oil Dipstick Assembly 13B8800-1010000/06 Oil Strainer Assembly 14B8800-1011000/07 Oil Pump Subassembly 15B8805-1012000/02 Oil Filter Assembly 16B9200-1013000/07 Oil Cooler Assembly B8800-1104000/16 Fuel Supply Pipeline Assembly B8800-1105000/12 Fuel Filter Assembly 19B7NT0-1111000/01 Fuel Injection Pump Assembly 20J3200-1112000/05 Injector Assembly 21B9210-1118000/05 Turbocharger Assembly 22A8ET0-1303000/03 & A8ET0-1306000/03 Radiator Water Pipe & Hose Assembly & Thermostat Assembly 23631-1305000/06 Water Drain Cock Assembly 24B8805-1307000/08 Water Pump Assembly 25A8ET0-1308000/01 Fan Assembly 26B8801-1600400/20 Flywheel Case 27B9XT0-3509000/01 Pneumatic Air Compressor Assembly 28B8800-3701000A/13 Generator Assembly 29A8300-3708000/02 Starter Assembly 30B7N00-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

11

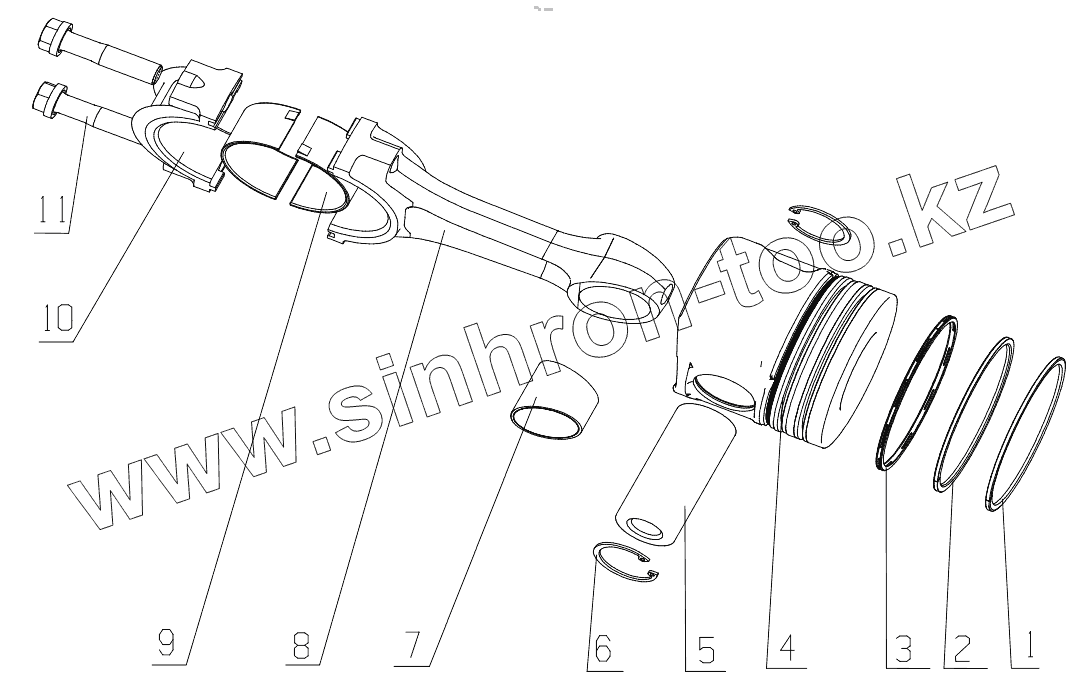

Позиция на иллюстрации	Заводской номер детали		Название детали
B3000-1004016	B3000-1004016		Piston ring subassembly
1	B3000-1004016		Piston ring subassembly
2	B3000-1004017		Second air ring
3	B3000-1004030		Oil ring assembly
4	B8800-1004001		Piston
5	430-1004019		Штифт поршня
6	Q43040		Стопорное кольцо 40
7	A3000-1004202		Втулка головки шатуна
8	A3000-1004201A		Connecting rod shank
9	A8600-1004005		Вкладыш шатуна
10	A3000-1004203		Нижняя крышка шатуна
11	6105Q-1004054		Болт шатуна

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
