Каталог запасных частей к технике: Yuchai YC4A115Z-T20. B9900-1009000/04 Oil Sump Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано YC4108C (D7400) (2010) YC4108ZG (D7802) (2010) YC4112ZQ (ZLQ) (2002) YC4A100-T301 (A515TB) (2021) YC4A115Z-T20 (2013) YC4B105Z-T20 (2016) YC4D (2005) YC4D120-20 (2008) YC4D120-20 (D1007) (2010) YC4D120-30 (D22J1) (2010) YC4D130-20 (D08FL) (2010) YC4D130-30 (D2102) (2010) YC4D140N-50 (2018) YC4D80-T10 (2009) YC4D80-T20 (2013) YC4E135-21 (E02D1) (2010) YC4E140-20 (E12N2) (2010) YC4E140-30 (E24FB) (2010) YC4E150-20 (E05D1) (2010) YC4E160-20 (E04F1) (2010) YC4E180-30 (E2100) (2010) YC4F100-20 (F31D8) (2010) YC4F115-20 (F30D8) (2010) YC4F115-30 (F50D1) (2010) YC4F90-23 (F60LA) (2010) YC4F90-30 (2008) YC4F90-30 (F51D1) (2010) YC4FA130-30 (FC7LA) (2010) YC4G180-20 (2014) YC4G180-20 (G0803) (2008) YC4G180-20 (G0803) (2010) YC4G180-30 (G2H0B) (2010) YC4G180N-30 (G2C0H-T1) (2010) YC4G180N-40 (2014) YC4G190N-50 (2014) YC4G200-30 (G2GQA) (2010) YC4G220-20 (G20JA) (2010) YC4ND27-90-30 (FD2D1) (2010) YC6108G (2008) YC6A240-20 (A3515) (2010) YC6A240-30 (A68SA) (2010) YC6A260-20 (A44AB) (2010) YC6A260-30 (A64YA) (2010) YC6B125-T10 (B7626) (2010) YC6B125-T11 (2016) YC6B125-T20 (2010) YC6B125-T21 (2016) YC6G220P-30 (G3FQA) (2010) YC6G230N-30 (G69MA) (2010) YC6G240-20 (G52MA) (2010) YC6G240-30 (2008) YC6G240-30 (G5BSB-T2) (2010) YC6G260N-20 (G64HA) (2010) YC6G260N-30 (G66YA-T12) (2010) YC6G260N-50 (2015) YC6G270-20 (G46MB) (2010) YC6G270-30 (G65QA) (2010) YC6G300-20 (G4704) (2010) YC6J125Z-T20 (2010) YC6J125Z-T21 (2015) YC6J125Z-T22 (2014) YC6J180-21 (J49D1) (2010) YC6J190-20 (J41D7) (2010) YC6J190-T301 (2021) YC6J210-20 (J42SA) (2010) YC6J210N-20 (J530C) (2010) YC6J210N-52 (2018) YC6J220-50 (2017) YC6J225N-52 (2014) YC6J230-20 (J4090) (2010) YC6J245-30 (J61LA) (2010) YC6J245-42 (J010N-T1) (2010) YC6J245-50 (2017) YC6K (2019) YC6K440N-50 (2013) YC6L250L-D30 (L7001) (2010) YC6L260-30 (2008) YC6L280-30 (L38MA) (2010) YC6L280N-52 (2014) YC6L310-30 (L360A) (2010) YC6L310-50 (2017) YC6L330-20 (L33YA) (2010) YC6L330-30 (L47SA) (2010) YC6L350-20 (L30JA) (2010) YC6M220G (M3020) (2010) YC6M280-20 (M36T1) (2010) YC6M290N-30 (M2CD1) (2010) YC6M290N-30 (M2CE1) (2010) YC6M320N-30 (M2BD1) (2010) YC6M340-20 (2009) YC6M340N-30 (M2AE1) (2010) YC6M360-30 (M6298) (2010) YC6M390-30 (M6000) (2010) YC6MK320N-50 (2013) YC6MK340N-50 (2013) YC6MK375N-40 (2014)

Схема > Не выбрано A8601-1002000/05 Cylinder Block Assembly A8601-1002200/10 Gear Housing Parts A9L00-1003000/01 Cylinder Head and Cylinder Head Cover Assembly A8600-1004000/09 Piston Connecting Rod Assembly A8601-1005000/03 Crankshaft Vibration Damper Assembly A8600-1006000/03 Camshaft Assembly B8800-1007000/04 Valve Train Mechanism Assembly B9900-1009000/04 Oil Sump Assembly A8601-1028000/05 Dipstick Assembly A8601-1010100/03 Оil Strainer Assembly B8800-1011000/07 Oil Pump Subassembly B8800-1012000/03 Oil Filter Assembly A93S0-1013000/01 Oil Cooler Assembly B9V04-1008100/02 and D7E01-1008500/03 Intake Pipe and Intake Connecting Pipe Part D0200-1008200/10 Exhaust Manifold Parts B9900-1104000/07 Fuel Supply Pipeline Assembly A8FW0-1105000/04 Fuel Filter Assembly B7616-1109000/03 Air filter A8Q00-1111000/01 Fuel Injection Pump Assembly 330-1112000/02 Injector Assembly B9903-1113000/02 Injection pump accessory Assembly A8FW1-1118000/02 Turbocharger Assembly A8FW1-1303000/01 Radiator Water Pipe and hose Assembly B8860-1306000/09 Thermostat Assembly 631-1305000/06 Water Drain Cock Assembly A8C03-1307000/05 Water Pump Assembly B7A00-1308000/05 Fan Assembly B9905-1600000/02 Power Takeoff Assembly A8C03-3509000/07 Pneumatic Air Compressor Assembly A8601-3701000/04 Generator Assembly D36G3-3708000/01 Starter Assembly A8601-3407000/02 Steering pump assembly B0000-3904000/01 Data Plate

1

2

3

4

5

6

7

8

9

10

11

12

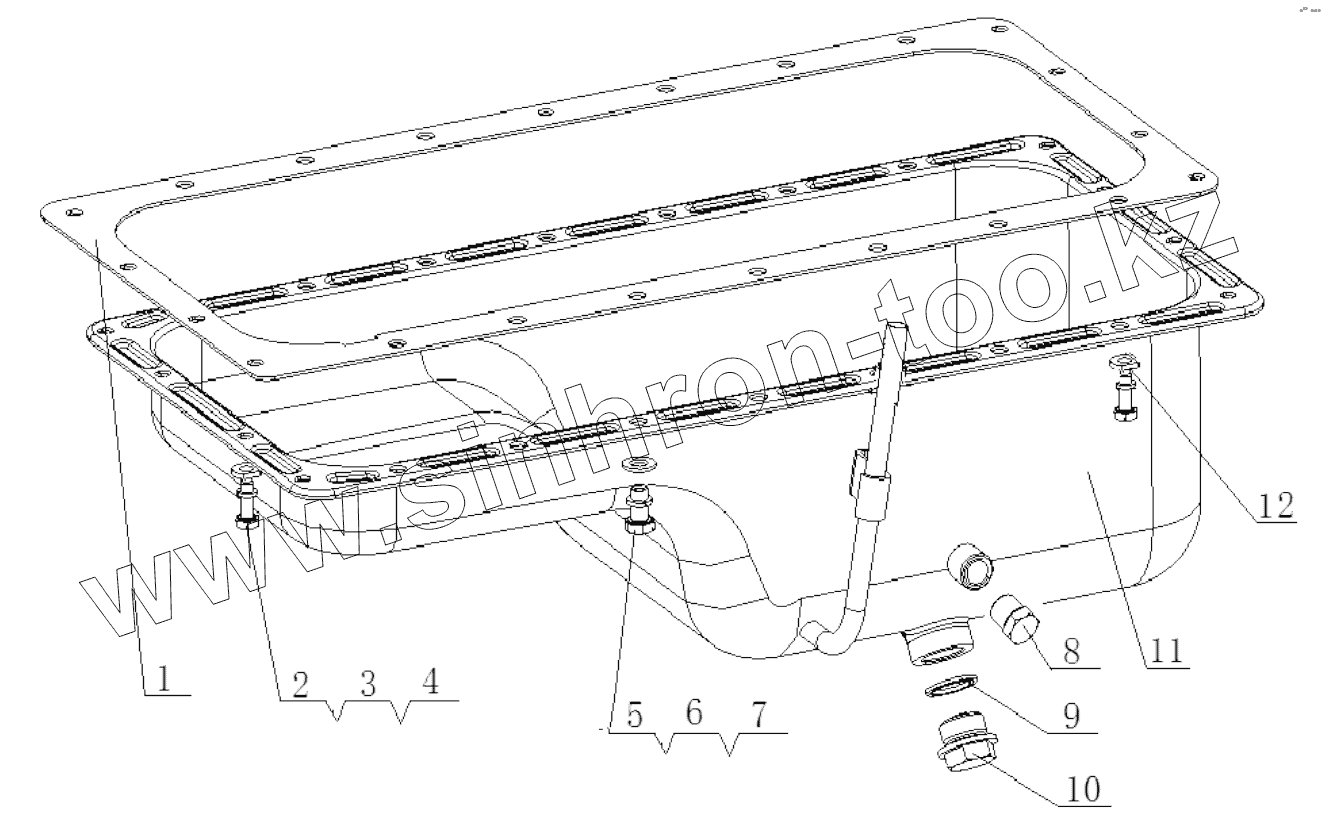

Позиция на иллюстрации	Заводской номер детали		Название детали
1	B8860-1009001		Oil sump gasket
2	Q/YC1820820		Бoлт M8x20
3	Q40308		Шайба 8
4	D30-1009102A		Шайба
5	Q/YC1821022		Bolt M10x22
6	Q40310		Шайба 10
7	Q40110		Шайба 10
8	Q618B03		Пробка NPT3/8
9	Q/YC149-27		Комбинированная уплотнительная шайба 27
10	6105Q-1009030		Сливная пробка в сборе
11	B9900-1009040		Oil sump parts
12	6105Q-3509013		Шайба
