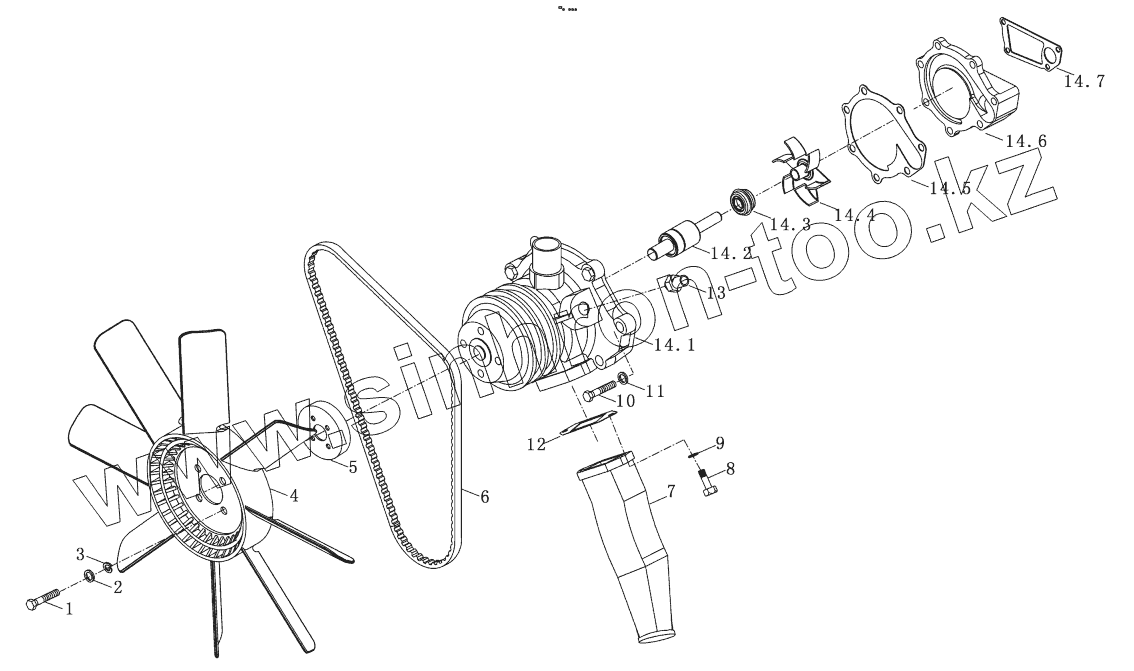

Каталог запасных частей к технике: YTO LR4M5-T73EXA-U2. Water Pump and Fan Assy
1
2
3
4
5
6
7
8
9
10
11
12
13
14.1
14.2
14.3
14.4
14.5
14.6
14.7
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 2 | GB/T93 | Spring washer 8 | |
| 3 | GB/T93 | Spring washer 8 | |
| 4 | Z-490-42-64-7 | Fan assy | |
| 5 | 6RCG38.520006 | Fan block | |
| 6 | 4RG3.520001 | Blet | |
| 7 | 4RCT51.510008 | Water inlet pipe | |
| 8 | GB21 | Bolt M10x20-8.8-Zn.D | |
| 9 | GB/T93 | Spring washer 8 | |
| 10 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 11 | GB/T93 | Spring washer 8 | |
| 12 | 6RZWC51.510005 | Water inlet gasket | |
| 13 | 5147324 | Heating water return connector | |
| 14 | 6RTF.510000-1 | Water pump assy | |
| 14.1 | 6RTF.510201-FE | Pump body | |
| 14.2 | WR2040151 | Shaft even bearing | |
| 14.3 | 1307010-3CK-05 | Seal assembly | |
| 14.4 | 4RCT51.510204FE | Impeller | |
| 14.5 | 6RTF.510000-06 | Bedding face gasket | |
| 14.6 | 6RTF.510000-03 | Pump cover | |
| 14.7 | 3R.510007 | Gasket water pump read cover |
