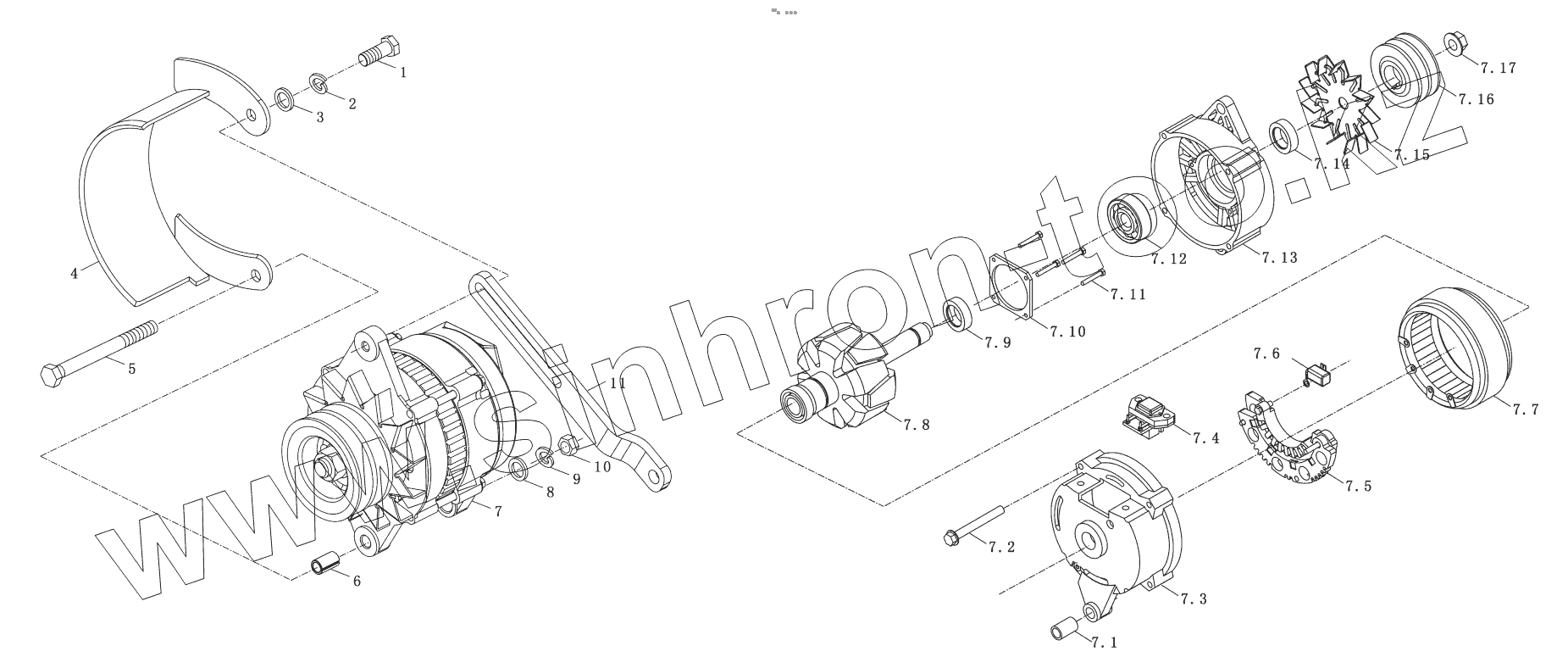

Каталог запасных частей к технике: YTO LR4M5-T73EXA-U2. Alternator and Bracket Assy
1
2
3
4
5
6
7
7.1
7.2
7.3
7.4
7.5
7.6
7.7
7.8
7.9
7.10
7.11
7.12
7.13
7.14
7.15
7.16
7.17
8
9
10
11
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | GB22 | Bolt M10x85-8.8-Zn.D | |
| 2 | GB/T93 | Spring washer 8 | |
| 3 | GB/T93 | Spring washer 8 | |
| 4 | 4RT7.620100 | Generator protective | |
| 5 | 6RQ.620054 | Bolt | |
| 6 | JFZ1527-302 | Movable sleeve | |
| 7 | JFZ1512C | Alternator | |
| 7.1 | JFZ1716-4101 | Adjustment set | |
| 7.2 | JFZ198-0007 | M5x60 flange bolt | |
| 7.3 | JFZ235C3-4101 | After end cover | |
| 7.4 | JFB158-5000 | Brush voltage regulator assembly | |
| 7.5 | JF182B-4200 | Rectifier module | |
| 7.6 | JFZ172-7000 | Capacitance | |
| 7.7 | JF182B-3000 | Stator assembly | |
| 7.8 | JFB158-2000 | Rotor assembly | |
| 7.9 | JFZ184-0004 | Locating sleeve | |
| 7.10 | JFB151-1001A | Bearing cover | |
| 7.11 | GB9074.15-88-M5x16 | Screw | |
| 7.12 | NSK6303DDUC3HHA1S6 | Bearing | |
| 7.13 | JFZ1716-1110 | Front end cover | |
| 7.14 | JF132E-0004A | Locating sleeve | |
| 7.15 | JF132E-0001A | Fan | |
| 7.16 | JFZ1716-0003 | Pulley | |
| 7.17 | GB6173-86 | Hexagonal thin nut | |
| 8 | GB/T93 | Spring washer 8 | |
| 9 | GB/T93 | Spring washer 8 | |
| 10 | GB/T6170 | Nut M6-8-Zn.D | |
| 11 | 6RTF.620001B | Adjusting bracket, alternator |
