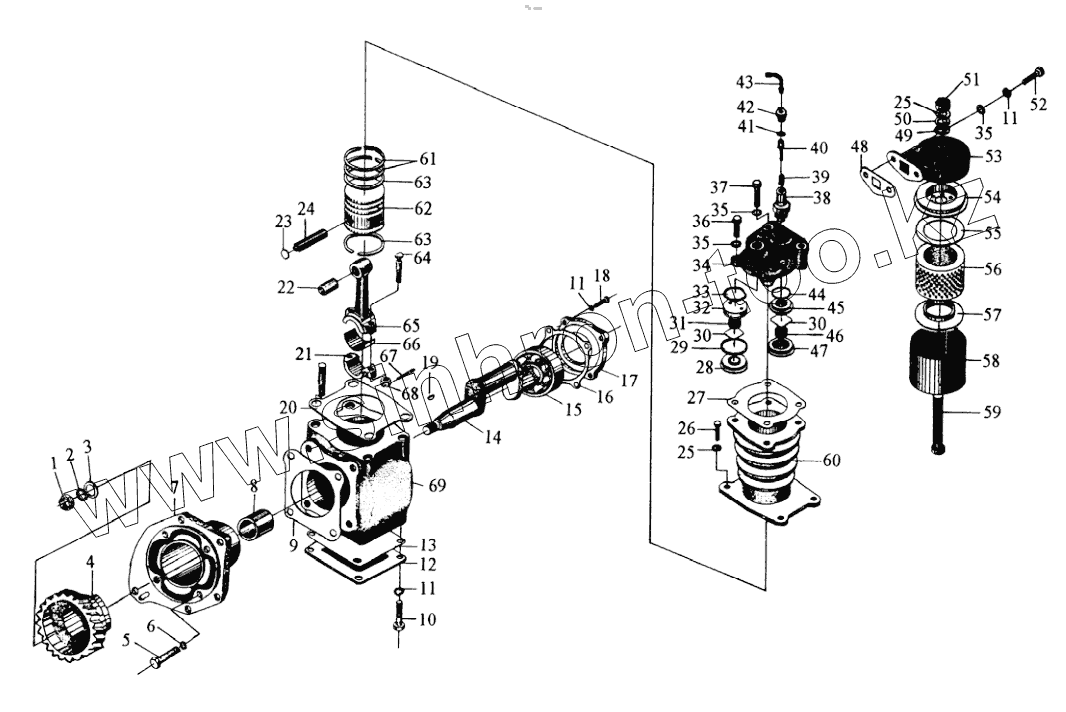

Каталог запасных частей к технике: YTO 4110. Air Compressor Assy
75-02-26C
Z-013/7
1
2
3
4
5
6
7
8
9
10
11
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
25
26
27
28
29
30
30
31
32
33
34
35
35
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
63
64
65
66
67
68
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 75-02-26C | 75-02-26C | Connecting rod bearing | |
| Z-013/7 | Z-013/7 | Air compressor assembly | |
| 1 | GB54-76 | Nut | |
| 2 | GB859-76 | Spring washer | |
| 3 | GB97-76 | Spring washer | |
| 4 | R060021A | Air compressor gear | |
| 5 | GB70-76 | Bolt | |
| 6 | GB859-76 | Spring washer | |
| 7 | LR-350904A | Front cover | |
| 8 | DIZ-350901-T004 | Front bearing of main shaft | |
| 9 | LR-350903 | Front gasket | |
| 10 | GB21-76 | Bolt | |
| 11 | GB93-76 | Spring washer | |
| 12 | LR-350906 | Oil pan | |
| 13 | LR-350907 | Gsaket | |
| 14 | LR-350908 | Crankshaft | |
| 15 | GB276-82 | Single-row radial ball bearing 6207 | |
| 16 | LR-350910 | Gasket | |
| 17 | LR-350909 | Rear cover | |
| 18 | GB21-76 | Bolt | |
| 19 | GB1099-79 | Woodruff key 4x16 | |
| 20 | DF-350901-1009 | Gasket | |
| 21 | DF-350903-2003 | Connecting rod cap | |
| 22 | DF-350903-2001A | Connecting rod bush | |
| 23 | GB893-76 | Retaining ring | |
| 24 | DF-350903-1002 | Piston pin | |
| 25 | GB93-76 | Spring washer | |
| 26 | GB21-76 | Bolt | |
| 27 | DF-350902-1002 | Cylinder head gasket | |
| 28 | DF-350902-1008 | Exhaust valve seat | |
| 29 | DF-350902-1009 | Seal ring, exhaust valve seat | |
| 30 | DF-350902-1005 | Valve diaphragm | |
| 31 | DF-350902-1011 | Exhaust valve spring | |
| 32 | DF-350902-1010 | Guide seat, exhaust valve | |
| 33 | DF-350902-1012 | Wave spring washer, exhaust Valve | |
| 34 | DF-350902-1001 | Cylinder head | |
| 35 | GB97-76 | Spring washer | |
| 36 | GB5782-86 | Bolt M8x55-10.9-Zn.D | |
| 37 | GB5782-86 | Bolt M8x55-10.9-Zn.D | |
| 38 | DF-350902-2003 | Release valve body | |
| 39 | DF-350902-2005 | Spring | |
| 40 | DF-350902-2004 | Valve lever | |
| 41 | Q72316 | Seal ring | |
| 42 | DF-350902-2002 | Dowel plug | |
| 43 | 55-3506111 | Elbow | |
| 44 | DF-350902-1004 | Seal ring, intake valve seat | |
| 45 | DF-350902-1003 | Intake valve seat | |
| 46 | DF-350902-1006 | Intake valve spring | |
| 47 | DF-350902-1007 | Guide seat, intake valev | |
| 48 | DF-350905-1007 | Gasket, air cleaner | |
| 49 | DF-350905-1008 | Washer | |
| 50 | GB97-76 | Spring washer | |
| 51 | GB54-76 | Nut | |
| 52 | GB21-76 | Bolt | |
| 53 | DF-350905-1001 | Air cleaner bottom seat | |
| 54 | DF-350905-1002 | Barrier | |
| 55 | DF-350905-1003 | Upper gasket, air cleaner | |
| 56 | DF-350905-1004B | Filter element | |
| 57 | DF-350905-1006 | Bottom gasket, air cleaner | |
| 58 | DF-350905-1005B | Air cleaner body | |
| 59 | GB21-76 | Bolt | |
| 60 | DF-350901-1010 | Cylinder block | |
| 61 | DF-350903-1003 | Piston ring, compression | |
| 62 | DF-350903-1001 | Piston | |
| 63 | DF-350903-1004 | Piston ring, oil | |
| 64 | 55-3509048 | Connecting rod bolt | |
| 65 | DF-350903-2002 | Connecting rod | |
| 66 | DF-350903-2004 | Connecting rod bearing | |
| 67 | GB91-76 | Pin | |
| 68 | GB58-76 | Nut | |
| 69 | LR-350905 | Crankshaft box |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
