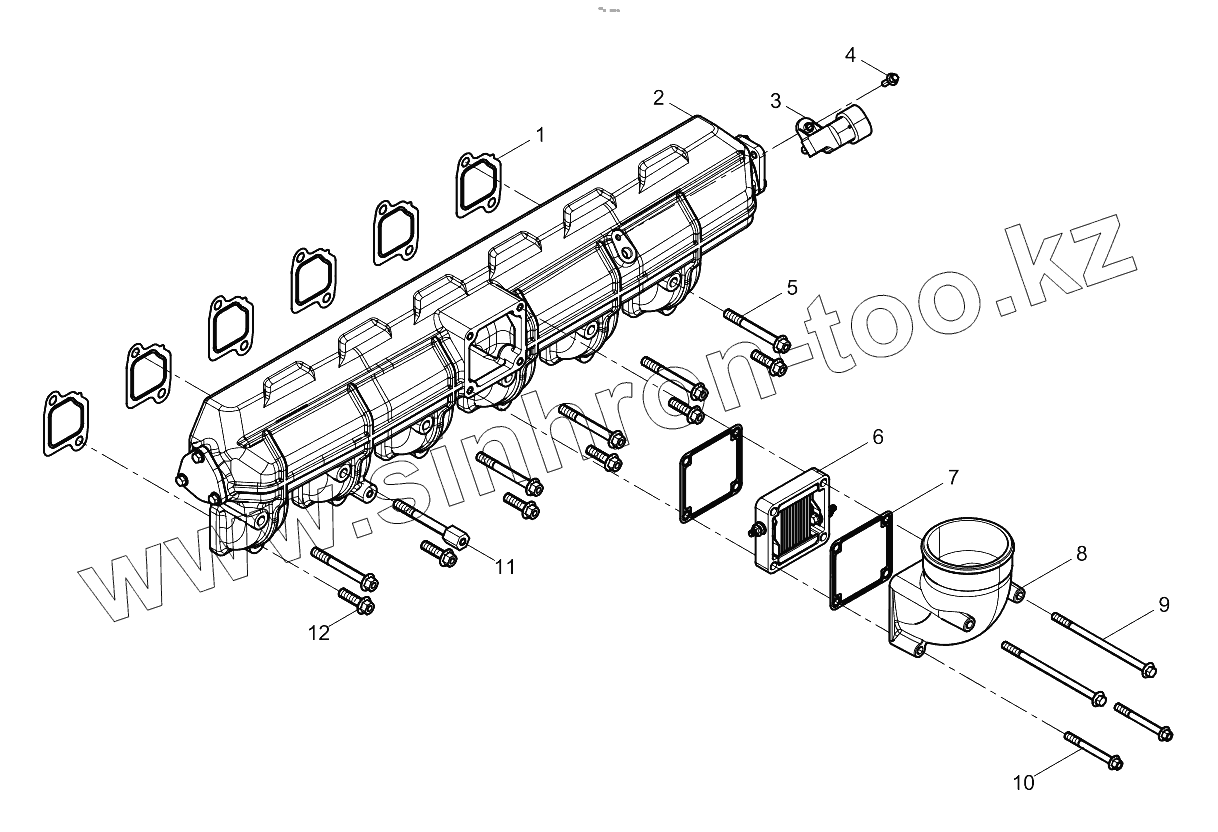

Каталог запасных частей к технике: Weichai WP7 DHP07T0067. Intake Manifold Group

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано 226B 226B 226B 226B (2010) 4M06G17 4M06G22 6M11 DHM11D0002 (2010) 6M11 DHM11D0003 (2010) 6M11 DHM16D0001 6M11 DHM16D0002 6M11 DHM16D0006 BAUDOUIN 3M10 BAUDOUIN 4M06G33 BAUDOUIN 4M06G44 BAUDOUIN 4M06G50 WD10 DHD10C0009 WD10 G220E23 (2017) WD10G178E25 (Евро 2) (2013) WD10G220E21 (2013) WD10G220E21 (2017) WD10G220E22 WD10G220E23 (Евро 2) (2013) WD12.420 (2014) WD615 (Евро 2) (2006) WD615 (Евро 3) (2007) WD615G0165, WD10G0004 (2009) WP10 (Евро 2) (2007) WP10 DHL10Q0032 WP10 DHL10Q0213 WP10 DHP10Q0168 WP10 DHP10Q1242 WP10.336E40 WP10336E40 (Евро 4) (2013) WP10336N (Евро 3) (2013) WP10340E32 (Евро 2) (2013) WP10NG DHP10Q1667 WP12 (Евро 3) (2007) WP12 375E40 (Евро 4) (2013) WP12 DHP12N0219 WP12 DHP12Q0501 WP12.375E50 (2019) WP12.400E50 (2020) WP12NG380E51 (2020) WP13 DHP13Q0928 (2021) WP13 DHP13Q3390 WP2.1D18E2 (2013) WP4.1 DH4.1K0320 (2019) WP4.1 DHN4.1Q0006 (2020) WP6 DHB06D0018 WP6 DHB06G0131 WP6D132E200 WP6G125E22 (2013) WP6G140E22 (2013) WP6G175E201 (2015) WP7 WP7 DHP07T0067 (2023) WP7.300E51 WP8 DHP08Q0162 (2022)

Схема > Не выбрано Engine Block Group Crankcase assembly Crankcase pre-assembly Oil Seal Group Spray Nozzle Group Piston Nozzle Flywheel Housing Group Crankshaft Group Crankshaft Assembly Crankshaft Subassembly Main Bearing Group Thrust Plate Group Thrust Plate Set Flywheel Group Piston and Connecting Rod Group Piston Ring Set Connecting Rod Assembly Cylinder Head Group Cylinder Head Assembly Cylinder Head Subassembly Lift Lug Group Cylinder Head Cover Group Oil Filler Cover Assembly Oil-gas Separator Group Valve Train Group Integrated Rocker Arm Shaft Assembly Exhaust Rocker Arm Set Intake Rocker Arm Set Camshaft Assembly Gear Drive Group Idler Gear Assembly Gear Drive Group Idler Gear Set Crankshaft Pulley Group Oil Pan Group Oil Drain Plug Oil Dipstick Group Oil Pump Group Oil Strainer Group Filter Assembly Oil Cooler Group Oil Cooler and Filter Assembly Oil Filling Tube Group Pressure-limiting Valve Group Water Pump Group Water Pump Inlet Pipe Group Water Outlet Pipe Group Venting Pipe Group Thermostat Group Fan Bracket Group Fan and Hub Group Fuel Injection Pump Group Fuel Injection Pump Oil Pipe Group Fuel Injector Group Low Pressure Fuel Pipe Group Fuel Filter Group Fuel Filter Assembly High Pressure Fuel Pipe Group High-pressure Fuel Pipe Assembly Common Rail Group Common Rail Intake Manifold Group Intake Manifold Assembly Turbocharger Group Turbocharger Oil Pipe Group Compressor Pipe Group Exhaust Manifold Group Exhaust Manifold Heat Shield Assembly Exhaust Manifold Heat Shield Assembly Exhaust Manifold Heat Shield Assembly Hydraulic Pump Group Tensioner And Belt Group Starter Motor Group Engine Bracket Group Separate Delivery Parts Group Attached to Engine Connector Connector Assembly Connector Assembly Diagnosis Plug Matching Connector Parts Kit Group Fuel System Protector Electronic Control Unit Group Electronic Control System Harness Group Alternator Group

1

2

3

4

5

6

7

8

9

10

11

12

Позиция на иллюстрации	Заводской номер детали		Название детали
1	1001546931		Intake Manifold Gasket
2	1001693596		Intake Manifold Assembly
3	612630120004		Датчик
4	9000000328		Hexagon Flange Bolt
5	9000000536		Hexagon Flange Bolt
6	1001581592		Heater
7	612630120002		Прокладка
8	610800110225		Air intake joint pipe
9	331003000670		Hexagon Flange Bolt
10	9000000934		Hexagon Flange Bolt
11	1002085842		Intake Manifold Bolt
12	90011420014		Hexagon Flange Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
