WP6G175E201

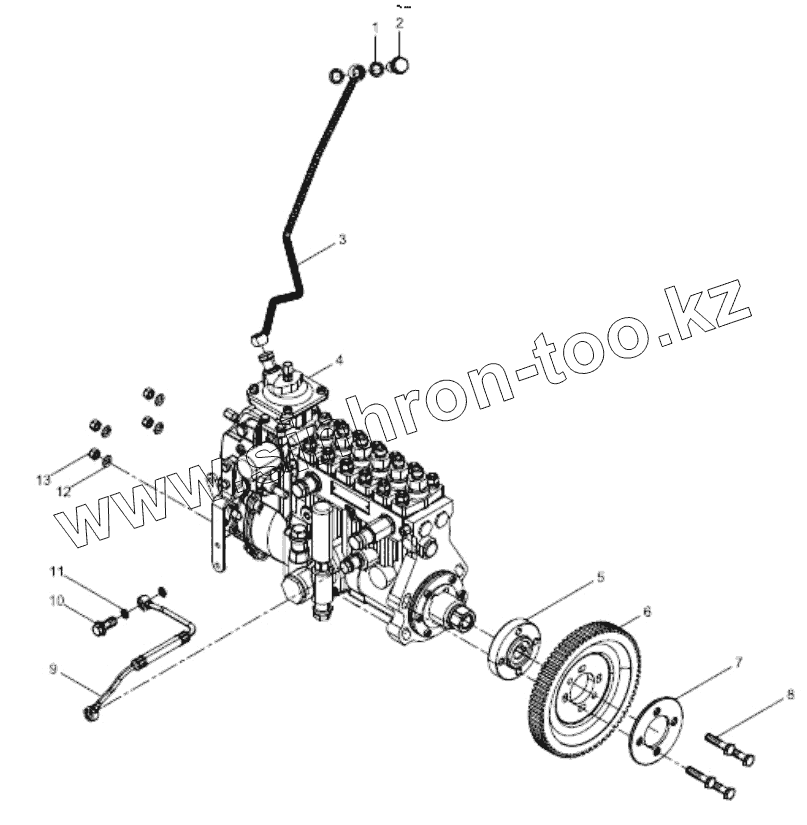

Fuel injection pump group
Каталог запасных частей к технике: Weichai WP6G175E201. Fuel injection pump group
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
226B
226B
226B
226B (2010)
4M06G17
4M06G22
6M11 DHM11D0002 (2010)
6M11 DHM11D0003 (2010)
6M11 DHM16D0001
6M11 DHM16D0002
6M11 DHM16D0006
BAUDOUIN 3M10
BAUDOUIN 4M06G33
BAUDOUIN 4M06G44
BAUDOUIN 4M06G50
WD10 DHD10C0009
WD10 G220E23 (2017)
WD10G178E25 (Евро 2) (2013)
WD10G220E21 (2013)
WD10G220E21 (2017)
WD10G220E22
WD10G220E23 (Евро 2) (2013)
WD12.420 (2014)
WD615 (Евро 2) (2006)
WD615 (Евро 3) (2007)
WD615G0165, WD10G0004 (2009)
WP10 (Евро 2) (2007)
WP10 DHL10Q0032
WP10 DHL10Q0213
WP10 DHP10Q0168
WP10 DHP10Q1242
WP10.336E40
WP10336E40 (Евро 4) (2013)
WP10336N (Евро 3) (2013)
WP10340E32 (Евро 2) (2013)
WP10NG DHP10Q1667
WP12 (Евро 3) (2007)
WP12 375E40 (Евро 4) (2013)
WP12 DHP12N0219
WP12 DHP12Q0501
WP12.375E50 (2019)
WP12.400E50 (2020)
WP12NG380E51 (2020)
WP13 DHP13Q0928 (2021)
WP13 DHP13Q3390
WP2.1D18E2 (2013)
WP4.1 DH4.1K0320 (2019)
WP4.1 DHN4.1Q0006 (2020)
WP6 DHB06D0018
WP6 DHB06G0131
WP6D132E200
WP6G125E22 (2013)
WP6G140E22 (2013)
WP6G175E201 (2015)
WP7
WP7 DHP07T0067 (2023)
WP7.300E51
WP8 DHP08Q0162 (2022)
Схема
>
Не выбрано
Engine block group
Cylinder block subassembly
Timing gear box group
Timing gear cover group
Intermediate gear
Nozzle assembly
Crankcase ventilation device assembly
Hydraulic pump cover assembly
Oil pan group
Crankshaft assembly
Main bearing set
Thrust main bearing bush assembly
Main bearing set
Thrust plate assembly
Flywheel assembly
Flywheel assembly
V belt pulley assembly with damper
Hub
Piston and connecting rod group
Piston and connecting rod group
Piston assembly
Connecting rod assembly
Connecting rod bearing set
Cylinder head assembly
Cylinder head subassembly
Cylinder head group
Rocker arm stand assembly
Rocker arm subassembly
Cylinder head cover group
Camshaft assembly
Valve mechanism assembly
Oil pump
Tensioner and belt group
Oil cooler assembly
Oil cooler assembly
Oil inlet pipe assembly
Oil pipe assembly of turbocharger
Fuel injection pump group
Injector assembly
Injector return pipe group
Fuel filter group
Fuel filter
High pressure fuel injection pipe group
Air inlet pipe assembly
Intake manifold subassembly
Air filter group
Air filter
Air compressor assembly
Air compressor assembly
Water pump assembly
Adapter assembly
Water pump pulley assembly
Water interlet joint pipe assembly
Exhaust manifold assembly
Silencer group
Turbocharger assembly
Generator bracket group
Generator group
Starter motor group
Pto assembly
Pto subassembly
Electromagnet assembly
Hydraulic pump group
Parts box group
Packing box chassis parts group
Fuel filter-water separator
Service kit
Cylinder head kit
Rocker arm kit
Cylinder liner kit
Piston kit
Camshaft bearing kit
Connecting rod kit
Main bearing kit
Oil sump
Nozzle
Sealing ring kit
1
2
3
4
5
6
7
8
9
10
11
12
13
Позиция на иллюстрации
Заводской номер детали
Название детали
1
4110000846102
Washer
2
4110000054114
Eye bolt
3
4110000909075
Pipe
4
4110001949009
Injection pump
5
4110000846109
Hub
6
4110000846107
Gear
7
4110000846140
Plate
8
4110000846095
Screw
9
4110000909085
Lubricating pipe
10
4110000054113
Eye bolt
11
4110001525019
Gasket
12
4110000054227
Washer
13
4110000054332
Nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
