WP4.1 DHN4.1Q0006
Integrated Urea Tank Assembly

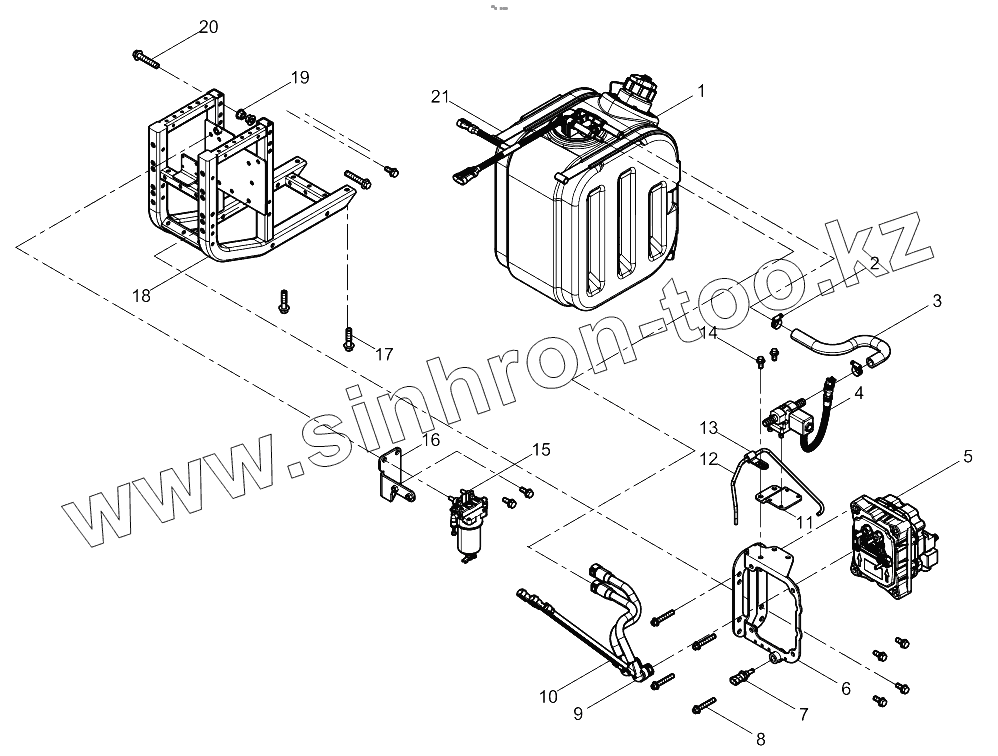

Каталог запасных частей к технике: Weichai WP4.1 DHN4.1Q0006. Integrated Urea Tank Assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
226B
226B
226B
226B (2010)
4M06G17
4M06G22
6M11 DHM11D0002 (2010)
6M11 DHM11D0003 (2010)
6M11 DHM16D0001
6M11 DHM16D0002
6M11 DHM16D0006
BAUDOUIN 3M10
BAUDOUIN 4M06G33
BAUDOUIN 4M06G44
BAUDOUIN 4M06G50
WD10 DHD10C0009
WD10 G220E23 (2017)
WD10G178E25 (Евро 2) (2013)
WD10G220E21 (2013)
WD10G220E21 (2017)
WD10G220E22
WD10G220E23 (Евро 2) (2013)
WD12.420 (2014)
WD615 (Евро 2) (2006)
WD615 (Евро 3) (2007)
WD615G0165, WD10G0004 (2009)
WP10 (Евро 2) (2007)
WP10 DHL10Q0032
WP10 DHL10Q0213
WP10 DHP10Q0168
WP10 DHP10Q1242
WP10.336E40
WP10336E40 (Евро 4) (2013)
WP10336N (Евро 3) (2013)
WP10340E32 (Евро 2) (2013)
WP10NG DHP10Q1667
WP12 (Евро 3) (2007)
WP12 375E40 (Евро 4) (2013)
WP12 DHP12N0219
WP12 DHP12Q0501
WP12.375E50 (2019)
WP12.400E50 (2020)
WP12NG380E51 (2020)
WP13 DHP13Q0928 (2021)
WP13 DHP13Q3390
WP2.1D18E2 (2013)
WP4.1 DH4.1K0320 (2019)
WP4.1 DHN4.1Q0006 (2020)
WP6 DHB06D0018
WP6 DHB06G0131
WP6D132E200
WP6G125E22 (2013)
WP6G140E22 (2013)
WP6G175E201 (2015)
WP7
WP7 DHP07T0067 (2023)
WP7.300E51
WP8 DHP08Q0162 (2022)
Схема
>
Не выбрано
Engine Block Group
Crankcase assembly
Crankcase pre-assembly
Oil Seal Group
Spray Nozzle Group
Flywheel Housing Group
Gear Housing Group
Gear Box Assembly
Second Order Balance Mechanism Group
Secondary Balance Machanism
Balance Shaft Unit Housing Set
Secondary Balance Machanism Driving Gear Set
Secondary Balance Machanism Driven Gear Set
Crankshaft Group
Crankshaft Subassembly
Main Bearing Group
Thrust Plate Group
Flywheel Group
Flywheel Assembly
Piston and Connecting Rod Group
Piston Ring Set
Connecting Rod Assembly
Cylinder Head Group
Cylinder Head Assembly
Cylinder Head Subassembly
Eye Ring Group
Cylinder Head Cover Group
Oil Filler Cap Set
Oil-gas Separator Oil-outlet Pipe Set
Valve Train Group
Camshaft Assembly
Integrated Rocker Arm Shaft Assembly
Intake Rocker Arm Set
Exhaust Rocker Arm Set
Gear Drive Group
Idler Gear Assembly
Idler Gear Assembly
Idler Gear Set
Crankshaft Pulley Group
Oil Pan Group
Oil Dipstick Group
Oil Pump Group
Oil Strainer Group
Oil Filter Group
Oil Cooler and Filter Assembly
Water Pump Group
Water Pump Inlet Pipe Group
Water Outlet Pipe Group
Thermostat Group
Fan Bracket Group
Fuel Injection Pump Group
Fuel Injection Pump
Fuel Injector Group
Fuel Injector
Low Pressure Fuel Pipe Group
High Pressure Fuel Pipe Group
High-pressure Fuel Pipe Assembly
Common Rail Group
Intake Manifold Group
Turbocharger Group
Turbocharger Oil Pipe Group
Compressor Pipe Group
Exhaust Manifold Group
Exhaust Manifold Heat Shield Assembly
Rear Exhaust Manifold Group
Exhaust brake butterfly valve heat shield assembly
Separate Delivery Parts Group Attached to Engine
SCR Box Assembly
Integrated Urea Tank Assembly
Urea Tank Assembly
Air Conditioning Compressor Group
Air Compressor Group
Air Compressor Assembly
Hydraulic Pump Group
Tensioner And Belt Group
Starter Motor Group
Engine Bracket Group
Parts Box Group
Fuel System Protector
Matching Connector
Vehicle Connector
Connector Assembly
Electronic Control Unit Group
ECU Bracket
Electronic Control System Harness Group
Alternator Group
Alternator Bracket Group
Fuel Injection Pump Oil Pipe Group
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Позиция на иллюстрации
Заводской номер детали
Название детали
1
612640130726
Urea Tank Assembly
2
90003989336
Хомут стяжной
3
1000568590
Water Pipe
4
612640130730
Cooling Water Solenoid Valve
5
1001767222
Urea Pump
6
1000557964
Urea Pump Braket
7
612630060035
Датчик
8
9000000003
Hexagon Flange Bolt
9
1000568113
Urea Inhale Pipe
10
1000568115
Urea Return Pipe
11
1000450100
Bracket
12
1000875103
Compressed Air Pipe
13
1000903453
Pipe Clamp
14
90011400008
Hexagon Flange Bolt
15
612640130429
Compressed Air Filter
16
1000568093
Bracket
17
90011420013
Hexagon Flange Bolt
18
1002854463
Urea Tank Bracket
19
90012290002
Hexagon Flange Nut
20
90011430025
Hexagon Flange Bolt
21
612640130764
Clamp Strip
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
