Каталог запасных частей к технике: Weichai WD10 DHD10C0009. High pressure pump assembly
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
BAW
Caterpillar
Cummins
DCEC
DongFeng
Doosan
FAW
Great Wall
Hitachi
HOWO
HSW
IVECO
Komatsu
LGMG
Perkins
Raywin
SDEC
Shaanxi
Valmet
Weichai
XINCHAI
YTO
Yuchai
ZF
Алтайдизель
Барнаултрансмаш
ВТЗ
ГАЗ
ЗиД
ЗМЗ
Камский автозавод
ММЗ
СМД
ТМЗ
УМЗ
ЧТЗ
ЮМЗ
ЯЗДА
ЯМЗ
Модель
Не выбрано
226B
226B
226B
226B (2010)
4M06G17
4M06G22
6M11 DHM11D0002 (2010)
6M11 DHM11D0003 (2010)
6M11 DHM16D0001
6M11 DHM16D0002
6M11 DHM16D0006
BAUDOUIN 3M10
BAUDOUIN 4M06G33
BAUDOUIN 4M06G44
BAUDOUIN 4M06G50
WD10 DHD10C0009
WD10 G220E23 (2017)
WD10G178E25 (Евро 2) (2013)
WD10G220E21 (2013)
WD10G220E21 (2017)
WD10G220E22
WD10G220E23 (Евро 2) (2013)
WD12.420 (2014)
WD615 (Евро 2) (2006)
WD615 (Евро 3) (2007)
WD615G0165, WD10G0004 (2009)
WP10 (Евро 2) (2007)
WP10 DHL10Q0032
WP10 DHL10Q0213
WP10 DHP10Q0168
WP10 DHP10Q1242
WP10.336E40
WP10336E40 (Евро 4) (2013)
WP10336N (Евро 3) (2013)
WP10340E32 (Евро 2) (2013)
WP10NG DHP10Q1667
WP12 (Евро 3) (2007)
WP12 375E40 (Евро 4) (2013)
WP12 DHP12N0219
WP12 DHP12Q0501
WP12.375E50 (2019)
WP12.400E50 (2020)
WP12NG380E51 (2020)
WP13 DHP13Q0928 (2021)
WP13 DHP13Q3390
WP2.1D18E2 (2013)
WP4.1 DH4.1K0320 (2019)
WP4.1 DHN4.1Q0006 (2020)
WP6 DHB06D0018
WP6 DHB06G0131
WP6D132E200
WP6G125E22 (2013)
WP6G140E22 (2013)
WP6G175E201 (2015)
WP7
WP7 DHP07T0067 (2023)
WP7.300E51
WP8 DHP08Q0162 (2022)
Схема
>
Не выбрано
Engine Block Group
Pre-assembled cylinder block
Timing Gear Housing Group
Camshaft gear cover combination
Oil-gas Separator Group
Oil-gas separator assembly
Dipstick Group
Oil Tilling Tube Group
Flywheel Housing Group
Crankshaft Group
Crankshaft assembly
Flywheel Group
Piston and Connecting Rod Group
Piston ring assembly
Connecting rod assembly
Cylinder head assembly
Cylinder head subassembly
Cylinder Head Cover Group
Valve Train Group
Camshaft assembly
Intermediate gear assembly
Intake valve rocker arm
Exhaust valve rocker assembly
Water Outlet Pipe Group
Water Inlet Pipe Group
Water pump assembly
Oil pump assembly
Oil Pump Idle Gear Assembly
Oil filter assembly
Filter assembly
Oil Suction Strainer Group
Oil cooler assembly
Injector assembly
High Pressure Fuel Injection Pipe Group (01)
High pressure pipe assembly
High pressure pump assembly
Shut-down Device Group
Starter Motor Group
Intake Manifold Group
Air inlet pipe assembly
Exhaust Manifold Group
Oil Pan Group
Instrument assembly
High Pressure Fuel Injection Pipe Group
High pressure pipe assembly
High pressure pump assembly
Crankshaft Pulley Group
Thermostat Group
Tensioner and belt combination
Fuel Filter Group
Fuel filter-water separator
Fuel filter
Low Pressure Oil pipe Group
Generator Group
Generator Bracket Group
Turbocharger assembly
Turbocharger assembly
Turbocharger Oil pipe Group
Compressor Pipeline Group
Intercooler assembly
Intercooler assembly
Heat exchanger assembly
Heat exchanger assembly
Engine Bracket Group
Packing Box Chassis Parts Group
Packing Box Chassis Parts Group
Parts Kit Assembly
Stop booster tool
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19

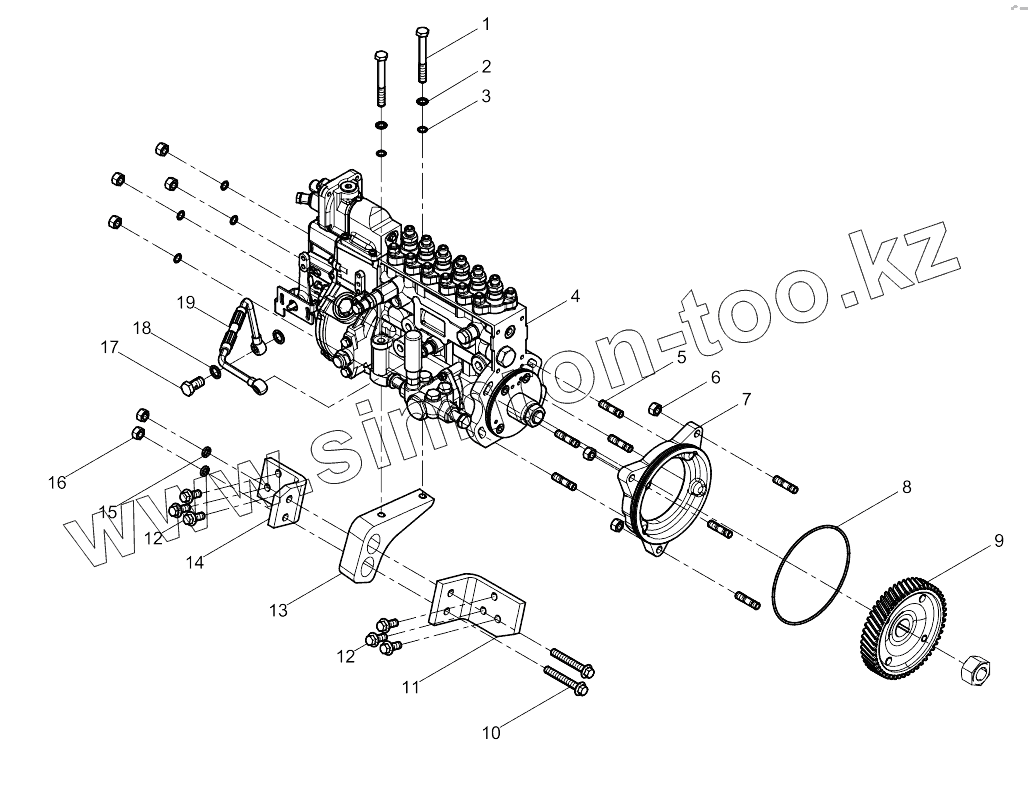

Позиция на иллюстрации
Заводской номер детали
Название детали
1
90003800579
Болт
2
18872339
Washer
3
90003930271
Шайба
4
612600082248Z
Injection pump
5
90003813532S
Stud
6
90003888452
Гайка
7
612600083244
Fuel Injection Pump Flange
8
612600083245
Seal Ring
9
612600081529
Injection pump gear
10
90011430013
Hexagon Flange Bolt
11
612600080682
Fuel Injection Pump Bracket
12
90011430008
Hexagon Flange Bolt
13
612600080363
Fuel Injection Pump Bracket
14
612600080364
Bracket
15
90003931122
Шайба
16
90003871305
Гайка
17
90003962607
Болт
18
612600080246
Seal washer
19
612600081470
Oil inlet pipe assembly
