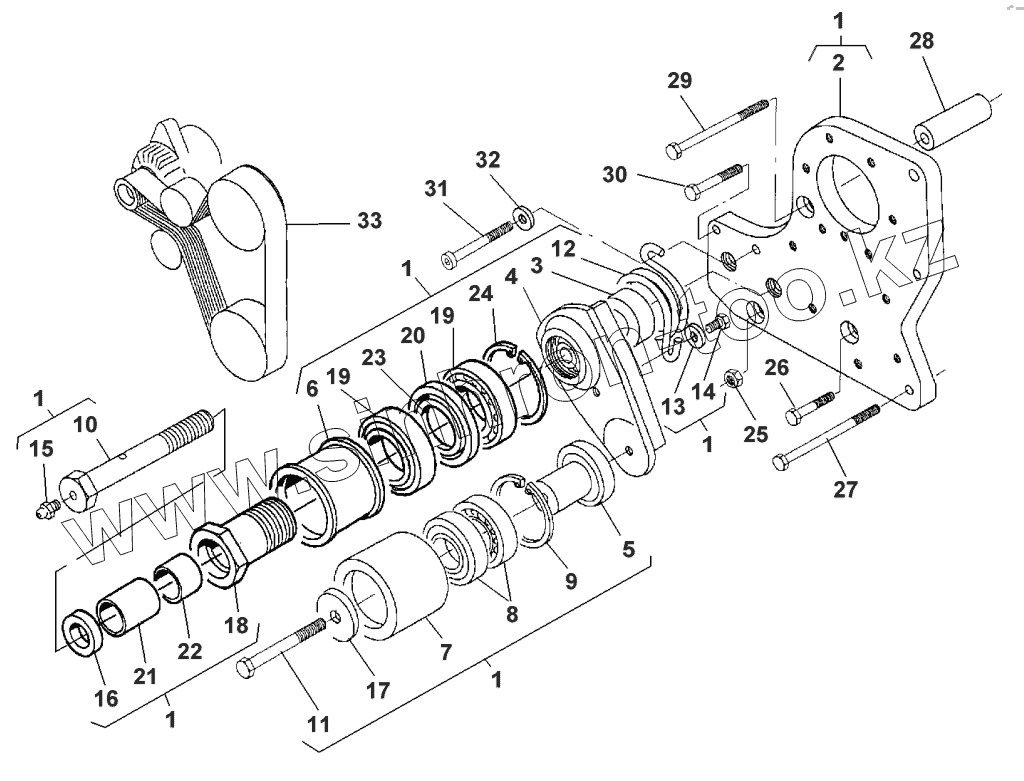

Каталог запасных частей к технике: Valmet 645 DSBIL. BELT TENSIONER
1
1
1
1
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836859350 | Tensioner | |
| 2 | V836855935 | Plate | |
| 3 | V836859348 | Shaft | |
| 4 | V836859347 | Support | |
| 5 | V836855789 | Shaft | |
| 6 | V836859353 | Roll | |
| 7 | V836855666 | Roll | |
| 8 | V610062055 | Bearing Assy | |
| 9 | V617330052 | Circlip | |
| 10 | V836859357 | Screw | |
| 11 | V529701880 | Screw | |
| 12 | V836855689 | Spring | |
| 13 | V836120989 | Washer | |
| 14 | V528801380 | Screw | |
| 15 | V644611006 | Greaser | |
| 16 | V836859356 | Plate | |
| 17 | V836855941 | Plate | |
| 18 | V836859349 | Shaft | |
| 19 | V610619084 | Bearing Assy | |
| 20 | V836859355 | Ring | |
| 21 | V836859364 | Bush | |
| 22 | V836859363 | Bush | |
| 23 | V836859354 | Ring | |
| 24 | V617330062 | Circlip | |
| 25 | V504801002 | Nut | |
| 26 | V529801430 | Screw | |
| 27 | V529801560 | Screw | |
| 28 | V836855934 | Sleeve | |
| 29 | V529801550 | Screw | |
| 30 | V529801550 | Screw | |
| 31 | V529801470 | Screw | |
| 32 | V836120989 | Washer | |
| 33 | V836855711 | Belt |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
