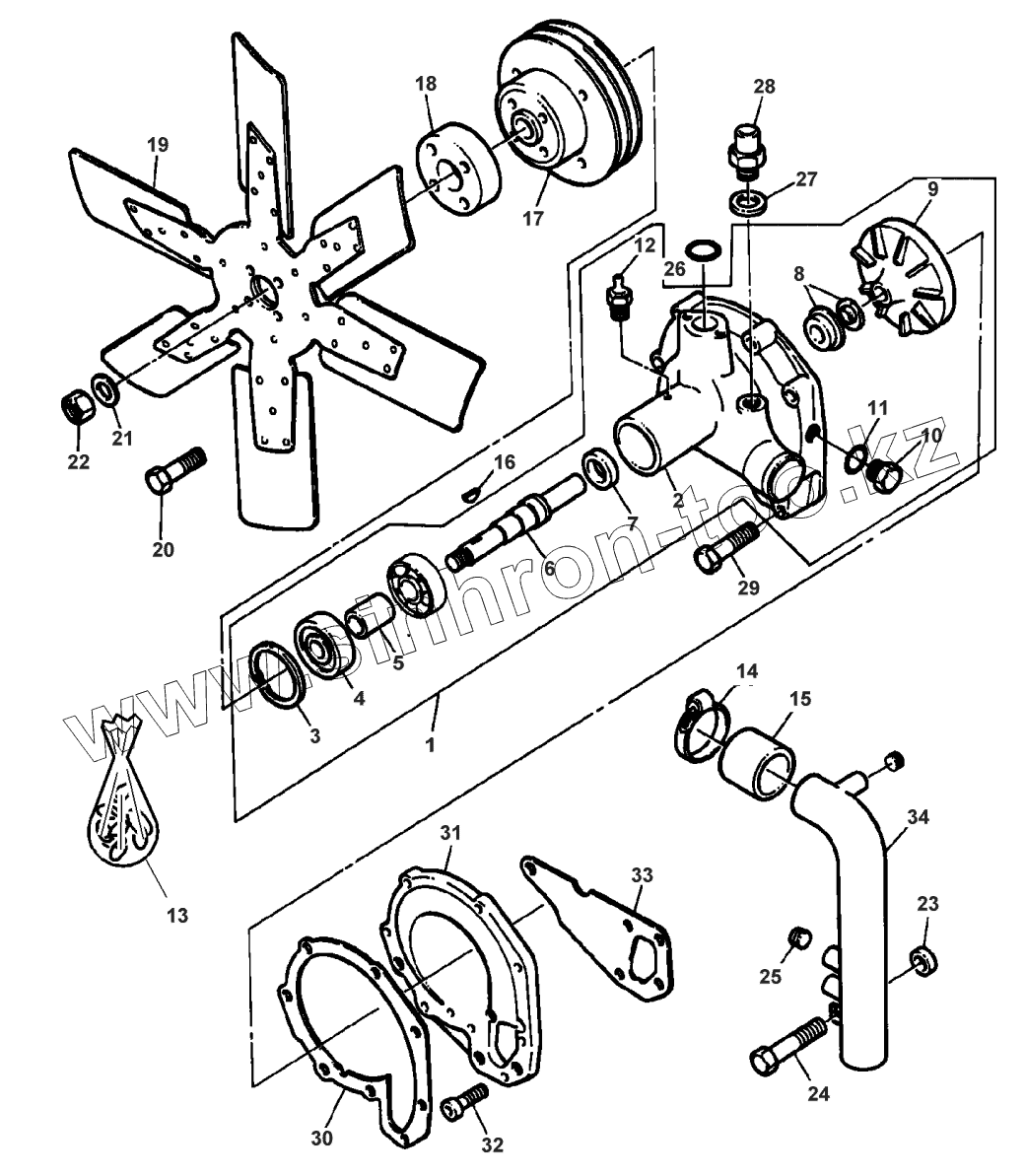

Каталог запасных частей к технике: Valmet 612 DSL. WATER PUMP - UP TO NO D 5221
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836352359 | Water Pump | |
| 2 | V836336048 | Housing | |
| 3 | V617330052 | Circlip | |
| 4 | GT1159 | Bear. 6304 Z | |
| 5 | V836119270 | Sleeve | |
| 6 | V836119259 | Shaft | |
| 7 | V614102636 | Gasket | |
| 8 | V835331202 | Seal | |
| 9 | V836336047 | Impeller | |
| 10 | V836019756 | Plug | |
| 11 | V615881822 | Seal | |
| 12 | V644441006 | Greaser | |
| 13 | V836316441 | Kit, Repair | |
| 14 | V602061668 | Clamp | |
| 15 | V836122248 | Hose | |
| 16 | V603305540 | Key | |
| 17 | V836324268 | Pulley | |
| 17 | V836322339 | Pulley | |
| 18 | V836336951 | Distance Piece | |
| 19 | V836331367 | Fan | |
| 20 | V529801470 | Screw | |
| 21 | V836122017 | Washer | |
| 22 | V510611402 | Nut | |
| 23 | V836338581 | Distance Piece | |
| 24 | V529801460 | Screw | |
| 25 | V640025018 | Plug | |
| 26 | V614602930 | O-Ring | |
| 27 | V615881822 | Seal | |
| 28 | V836119838 | Union | |
| 29 | V529801430 | Screw | |
| 30 | V836322188 | Gasket | |
| 31 | V836322187 | Cover | |
| 32 | V581804620 | Screw | |
| 33 | V836322189 | Gasket | |
| 34 | V836335402 | Pipe |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
