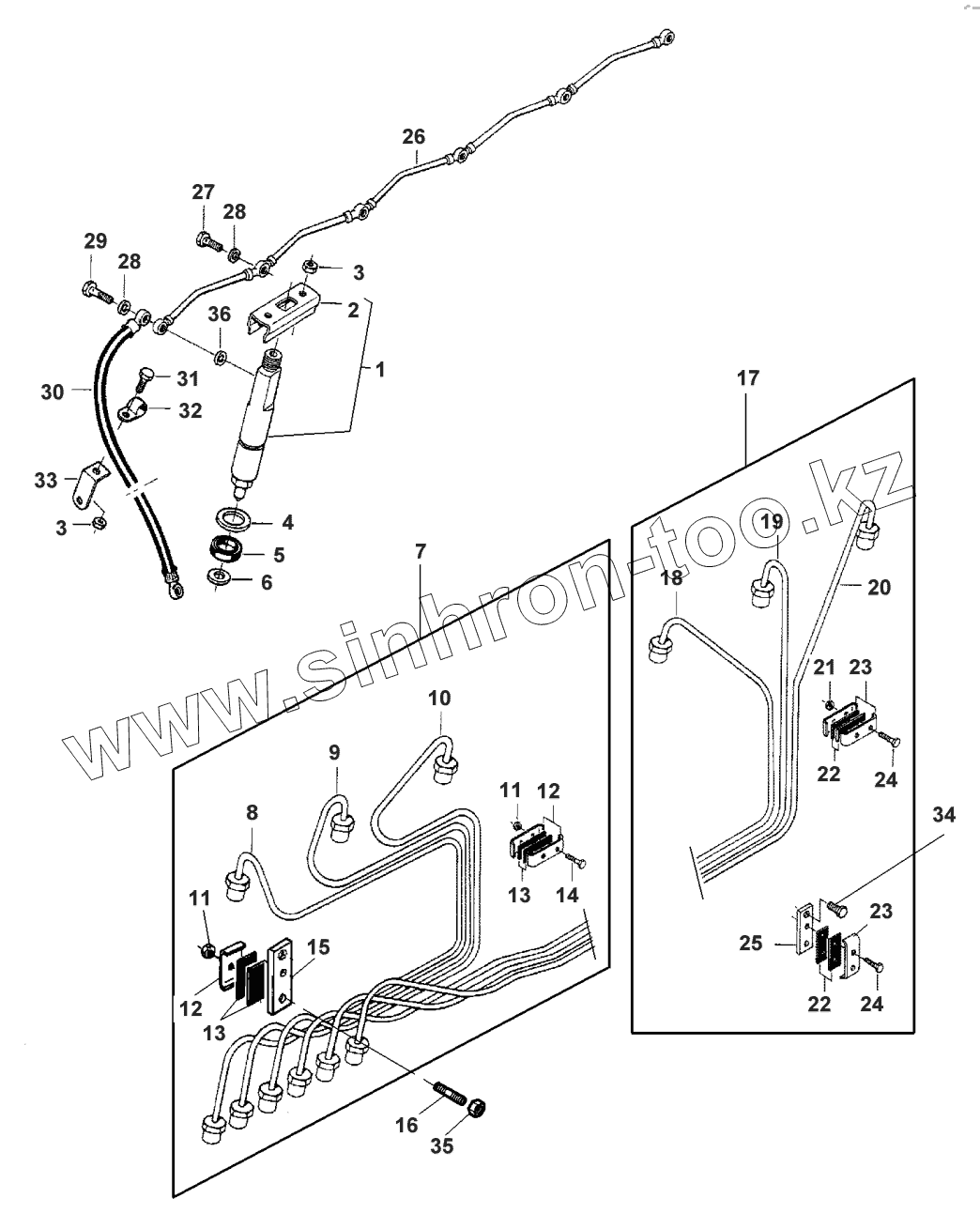

Каталог запасных частей к технике: Valmet 612 DSL. FUEL PIPINGS - MB 34/36 220 HP
1
2
3
3
4
5
6
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
26
27
28
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| V835336942 | V835336942 | Tube | |
| 1 | V836840397 | Atomiser | |
| 2 | V835331103 | Retainer | |
| 3 | V504800800 | Nut | |
| 4 | V835336275 | Washer | |
| 5 | V835336276 | Seal | |
| 6 | V899901495 | Washer | |
| 7 | V836346067 | Kit, Pipe | |
| 8 | V836346061 | Injection Pipe | |
| 9 | V836346062 | Injection Pipe | |
| 10 | V836346063 | Injection Pipe | |
| 11 | V504600502 | Nut | |
| 12 | V836324446 | Holding Fixture | |
| 13 | V836324443 | Rubber Strap | |
| 14 | V528800802 | Screw | |
| 15 | V836336921 | Support | |
| 16 | V546801820 | Stud | |
| 17 | V836346068 | Kit, Pipe | |
| 18 | V836346064 | Injection Pipe | |
| 19 | V836346065 | Injection Pipe | |
| 20 | V836346066 | Injection Pipe | |
| 21 | V504600502 | Nut | |
| 22 | V836324443 | Rubber Strap | |
| 23 | V836324446 | Holding Fixture | |
| 24 | V528800802 | Screw | |
| 25 | V836336921 | Support | |
| 26 | V836355330 | Tube | |
| 27 | V835331289 | Screw | |
| 28 | V615870710 | Seal | |
| 29 | V835336943 | Screw | |
| 30 | V836652377 | Pipe | |
| 31 | V528801360 | Screw | |
| 32 | V602060612 | Clamp | |
| 33 | V836124941 | Support | |
| 34 | V528801750 | Screw | |
| 35 | V504801002 | Nut | |
| 36 | V836355435 | Seal |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
