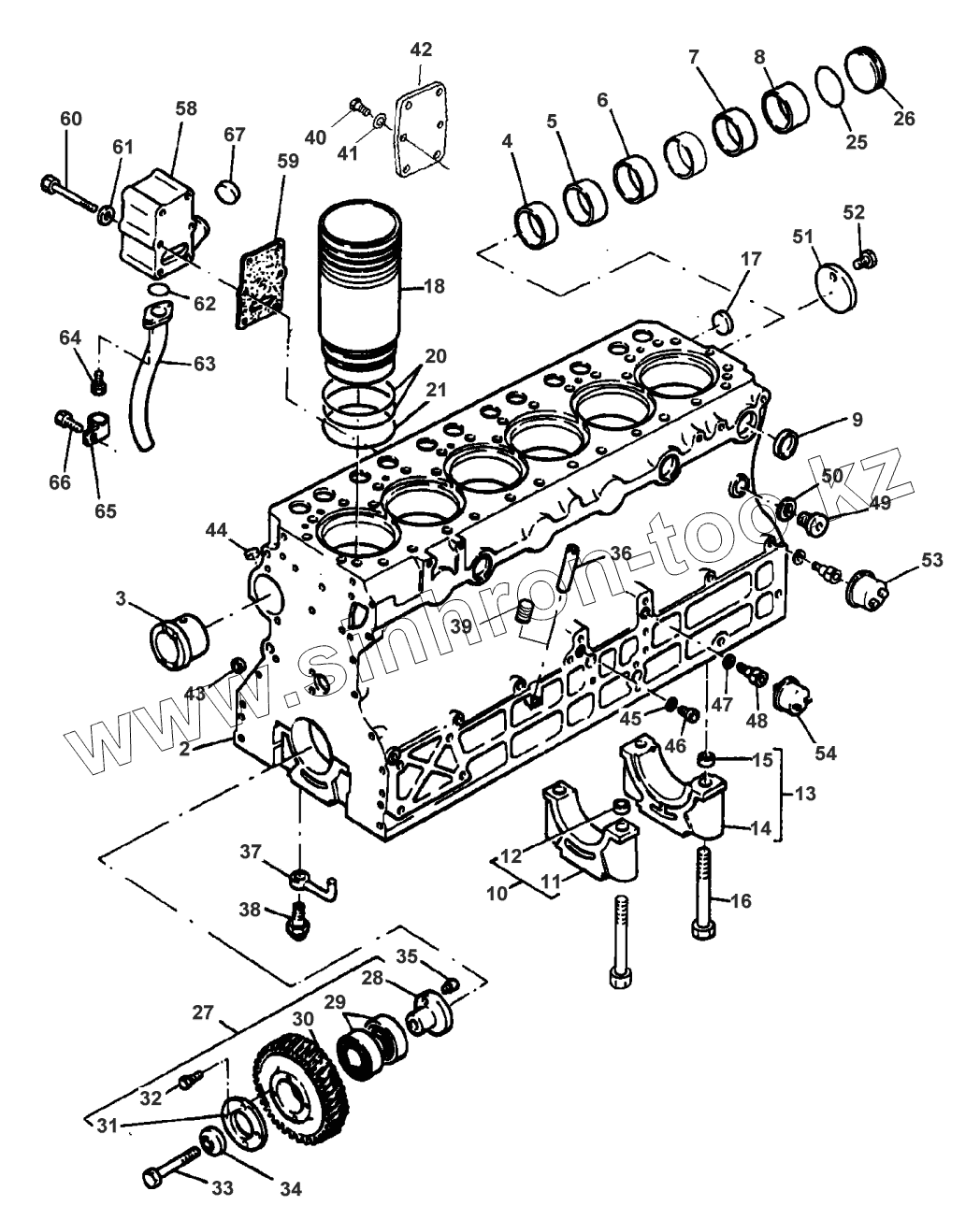

Каталог запасных частей к технике: Valmet 612 DSL. CYLINDER BLOCK
1
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
20
21
25
26
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
50
51
52
53
54
58
59
60
61
62
63
64
65
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| V835336463 | V835336463 | Parts Pack | |
| 1 | V836347916 | Cylinder Block | |
| 1 | 3638614М1 | Cylinder Block | |
| 3 | V835346889 | Bush | |
| 4 | V836322975 | Bush | |
| 5 | V836322608 | Bush | |
| 6 | V836322609 | Bush | |
| 7 | V836322608 | Bush | |
| 8 | V836322610 | Bush | |
| 9 | V640016040 | Plug | |
| 10 | V836324757 | Bearing Carrier | |
| 11 | Bearing Carrier | Bearing Carrier | |
| 12 | V836214478 | Bush | |
| 13 | V836324756 | Bearing Carrier | |
| 14 | Bearing Carrier | Bearing Carrier | |
| 15 | V836214478 | Bush | |
| 16 | V529903180 | Screw | |
| 17 | V640016032 | Plug | |
| 18 | 3637621М1 | Liner | |
| 18 | V836338438 | Liner | |
| 18 | V836338437 | Liner | |
| 18 | V836338436 | Liner | |
| 20 | V835322233 | O-Ring | |
| 21 | V835336903 | O-Ring | |
| 25 | V614605125 | O-Ring | |
| 26 | V836852744 | Plug | |
| 26 | V836852744 | Plug | |
| 27 | V836122760 | Gear | |
| 28 | V836122757 | Shaft | |
| 29 | V610071079 | Bearing | |
| 30 | V836122756 | Gear | |
| 31 | V836122759 | Flange | |
| 32 | V528801360 | Screw | |
| 33 | V529902720 | Screw | |
| 34 | V836122758 | Flange | |
| 35 | V836114523 | Pin | |
| 36 | V836014334 | Pipe | |
| 37 | V836338602 | Pipe | |
| 38 | V836338601 | Valve | |
| 39 | V640016012 | Plug | |
| 40 | V528801380 | Screw | |
| 41 | V500950800 | Washer | |
| 42 | V836846444 | Flange | |
| 43 | V640016016 | Plug | |
| 44 | V640025010 | Plug | |
| 45 | V615571014 | Seal | |
| 46 | V640325110 | Plug | |
| 47 | V615571014 | Seal | |
| 48 | V836120022 | Connection | |
| 49 | V836019756 | Plug | |
| 49 | V640325018 | Plug | |
| 50 | V615881822 | Seal | |
| 50 | V615881824 | Seal | |
| 51 | V836124210 | Plate | |
| 52 | V528802180 | Screw | |
| 53 | V654100109 | Sensor | |
| 54 | V654100109 | Sensor | |
| 58 | V836338604 | Breather | |
| 59 | V836322852 | Gasket | |
| 60 | V529801560 | Screw | |
| 61 | V500950800 | Washer | |
| 62 | V614603140 | О-Ring | |
| 63 | V836338493 | Pipe | |
| 64 | V528801360 | Screw | |
| 65 | V602074618 | Clamp | |
| 66 | V528801360 | Screw | |
| 67 | V640016036 | Plug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
