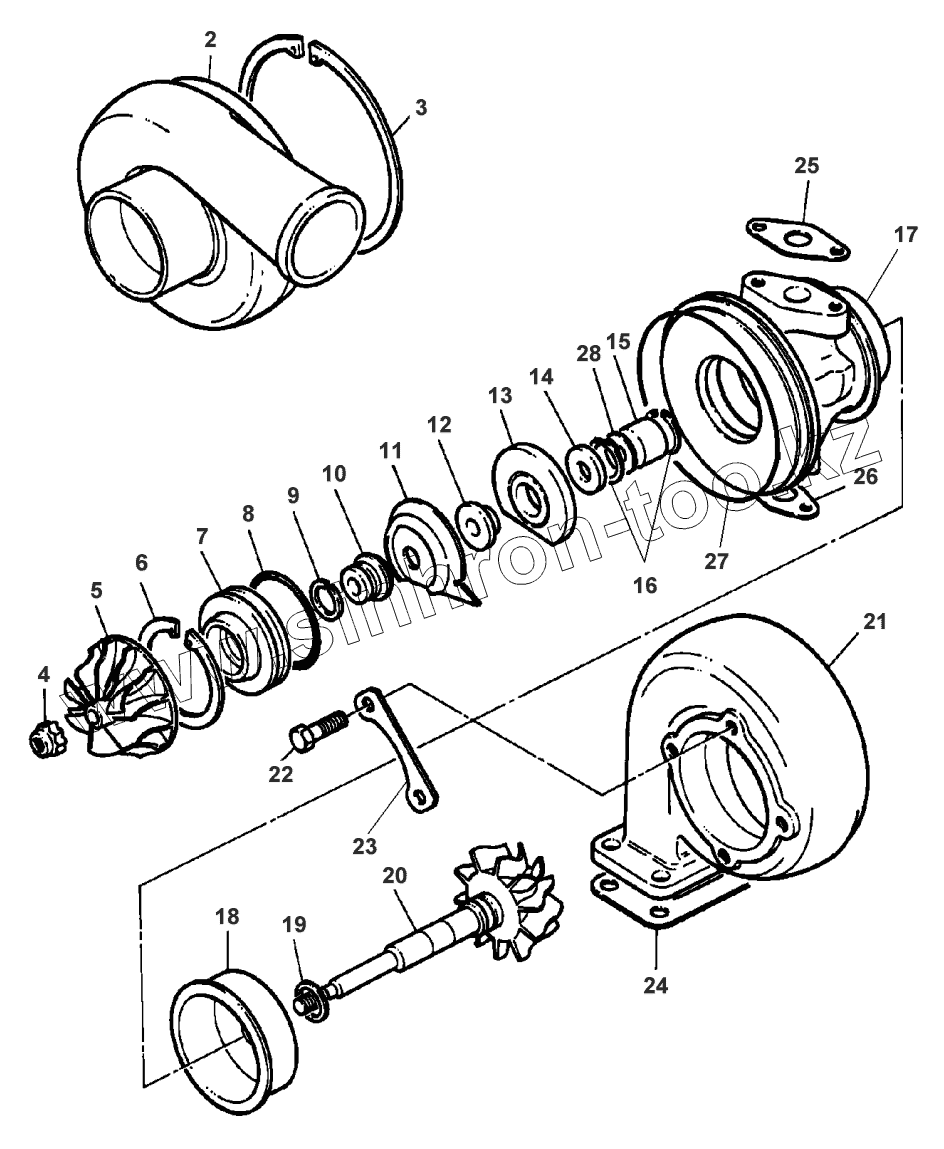

Каталог запасных частей к технике: Valmet 612 DSJL. TURBOCHARGER
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836340375 | Turbocharger | |
| 1 | V836339736 | Turbocharger | |
| 2 | V836339786 | Housing | |
| 3 | V836131912 | Clip | |
| 4 | V836339787 | Nut | |
| 5 | V836339788 | Compressor | |
| 6 | V835339516 | Clip | |
| 7 | V835339512 | Insert | |
| 8 | V835339517 | O-Ring | |
| 9 | V835339510 | Piston Ring | |
| 10 | V836339789 | Flinger | |
| 11 | V835339514 | Deflector | |
| 12 | V836339790 | Collar | |
| 13 | V836339791 | Bearing | |
| 14 | V836339792 | Thrust Washer | |
| 15 | V836339793 | Bearing | |
| 16 | V836339794 | Circlip | |
| 17 | V836339795 | Housing | |
| 18 | V836339796 | Flange | |
| 19 | V836339797 | Circlip | |
| 20 | V836339798 | Turbine Wheel | |
| 21 | V836339806 | Housing | |
| 21 | V836339805 | Housing | |
| 22 | V836339802 | Screw | |
| 23 | V836339800 | Plate | |
| 24 | V836316726 | Gasket | |
| 25 | V836308344 | Joint | |
| 26 | V836324580 | Joint | |
| 27 | V835332527 | O-Ring | |
| 28 | V836339801 | Washer | |
| 29 | V836339803 | Kit, Repair |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
