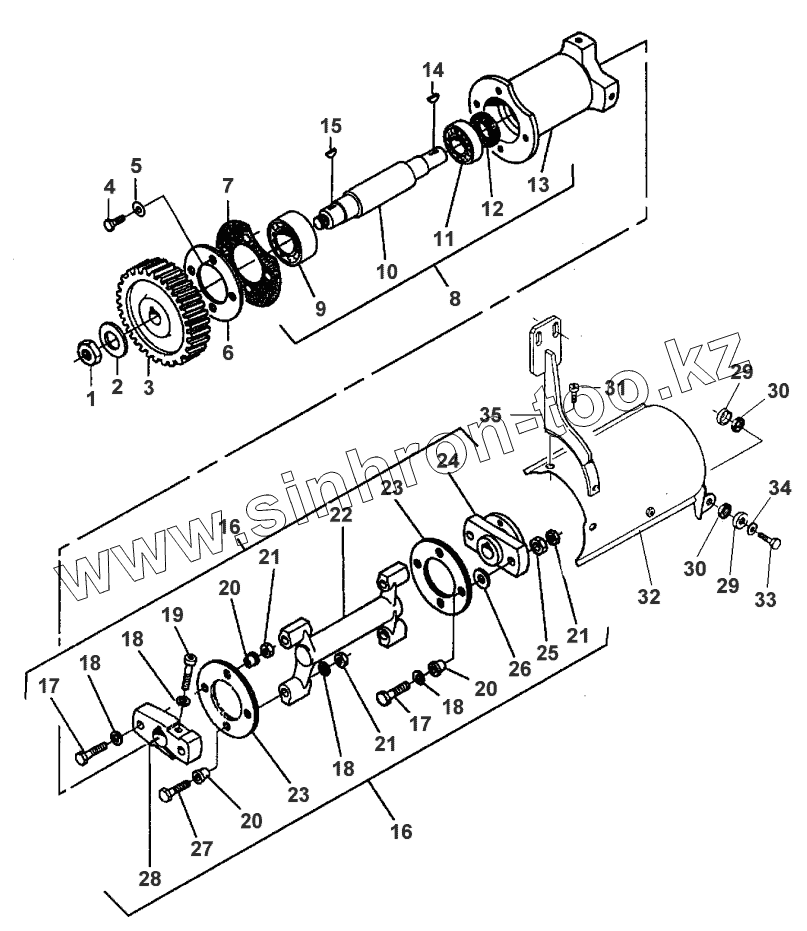

Каталог запасных частей к технике: Valmet 612 DSIL. INJECTION PUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
17
18
18
18
18
19
20
20
20
21
21
21
22
23
23
24
25
26
27
28
29
29
30
30
31
32
33
34
35
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V510611602 | Nut | |
| 2 | V836328602 | Washer | |
| 3 | V836355399 | Gear | |
| 4 | V528801400 | Screw | |
| 5 | V500950800 | Washer | |
| 6 | V836336668 | Washer | |
| 7 | V836336669 | Gasket | |
| 8 | V836336666 | Drive | |
| 9 | V610032070 | Bearing Assy | |
| 10 | V836328186 | Shaft | |
| 11 | V610062060 | Bearing Assy | |
| 12 | V614103047 | Gasket | |
| 13 | V836336667 | Hub | |
| 14 | V603305650 | Key | |
| 15 | V603305760 | Key | |
| 16 | V836328658 | Coupler | |
| 17 | V528801810 | Screw | |
| 18 | V500451000 | Washer | |
| 19 | V581705060 | Screw | |
| 20 | V836316809 | Bush | |
| 21 | V504801002 | Nut | |
| 22 | V836324786 | Spacer | |
| 23 | V836316806 | Disc | |
| 24 | V836316805 | Bearing Carrier | |
| 25 | V836316807 | Nut | |
| 26 | V836316808 | Washer | |
| 27 | V528901830 | Screw | |
| 28 | V836316810 | Bearing Carrier | |
| 29 | V836119855 | Washer | |
| 30 | V836012841 | Gasket | |
| 31 | V581804600 | Screw | |
| 32 | V836338556 | Cowl | |
| 33 | V528801410 | Adjusting Screw | |
| 34 | V500150842 | Washer | |
| 35 | V836355359 | Support |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
