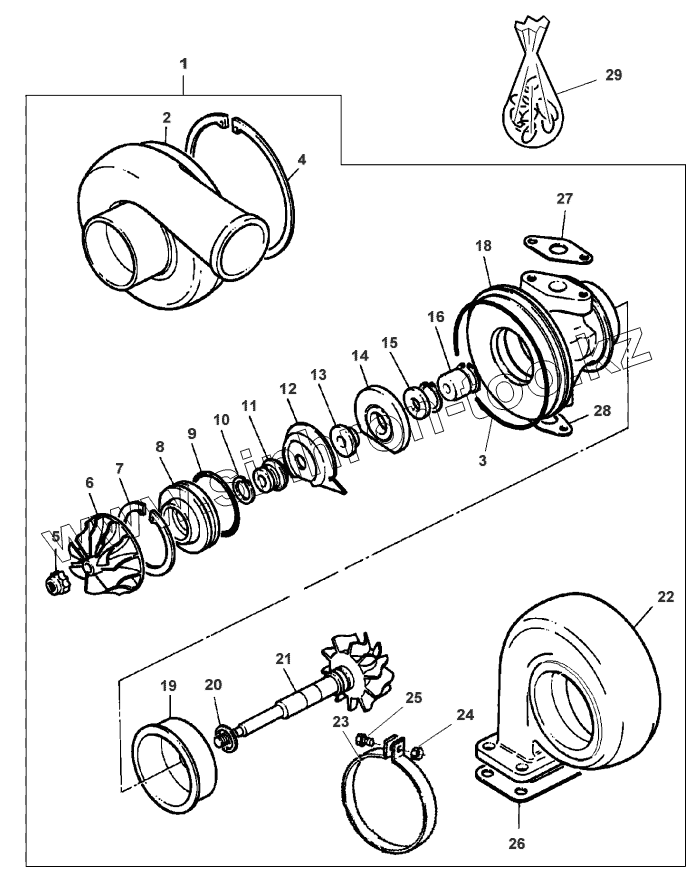

Каталог запасных частей к технике: Valmet 311 DSL. TURBOCHARGER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
18
19
20
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | V836539402 | Turbocharger | |
| 2 | V836539528 | Housing | |
| 3 | V835339527 | Gasket | |
| 4 | V836131912 | Clip | |
| 5 | V836131914 | Nut | |
| 6 | V836539529 | Compressor | |
| 7 | V835339516 | Clip | |
| 8 | V835339512 | Insert | |
| 9 | V835339517 | O-Ring | |
| 10 | V835339510 | Piston Ring | |
| 11 | V835339513 | Flinger | |
| 12 | V835339514 | Deflector | |
| 13 | V835339520 | Collar | |
| 14 | V836339791 | Bearing | |
| 15 | V835339521 | Thrust Washer | |
| 16 | V835339518 | Bearing | |
| 17 | V835339508 | Clip | |
| 18 | V835339515 | Housing | |
| 19 | V835339511 | Circlip | |
| 20 | V835339509 | Turbine Wheel | |
| 21 | V835339523 | Shaft | |
| 22 | V835339524 | Turbine Housing | |
| 23 | V835339522 | Clamp | |
| 24 | V835339507 | Nut | |
| 25 | V628801422 | Screw | |
| 26 | V836316726 | Gasket | |
| 27 | V836308344 | Joint | |
| 28 | V836324580 | Joint | |
| 29 | V835339783 | Kit, Repair |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
