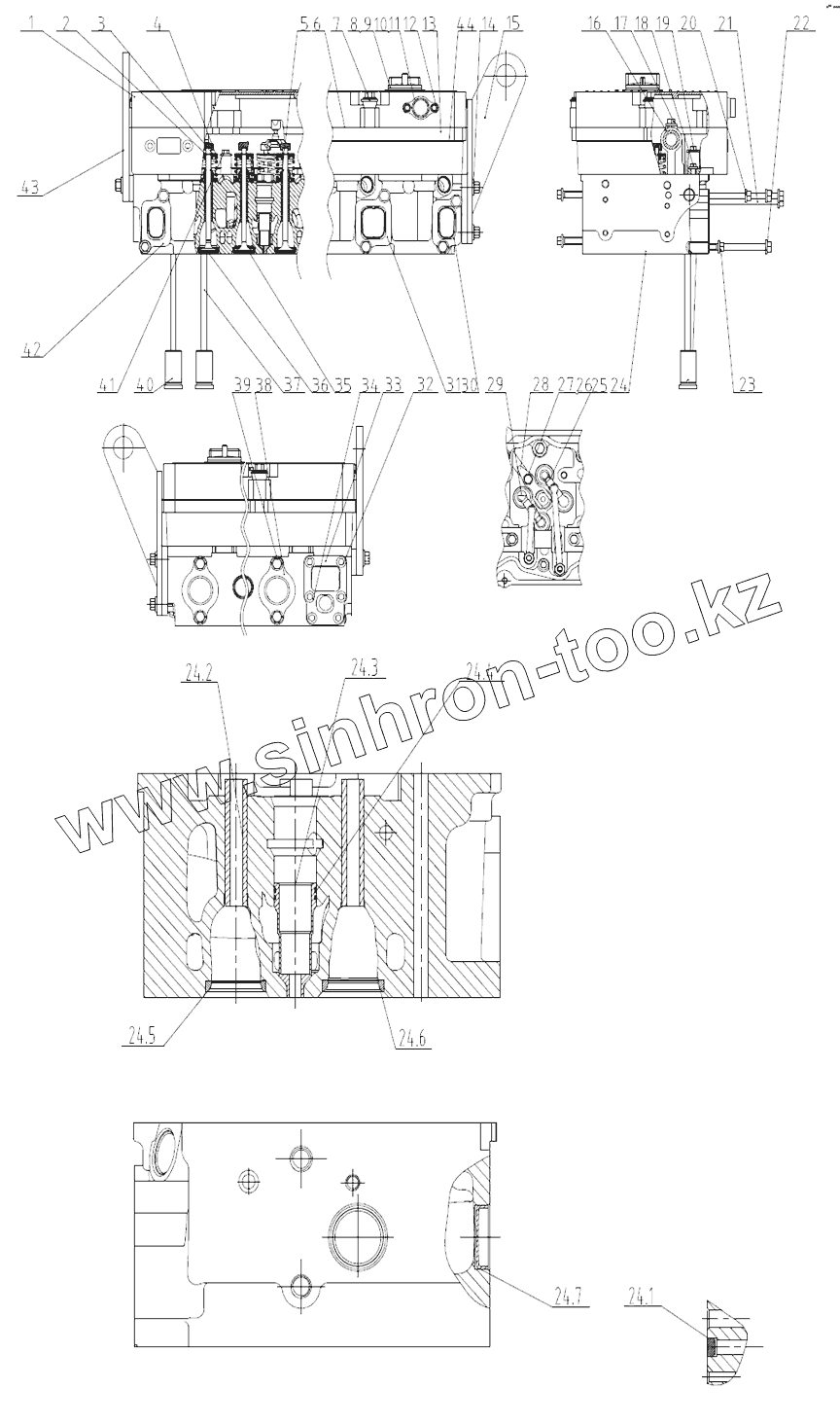

Каталог запасных частей к технике: SDEC SC9DF290Q4. CYLINDER BLOCK GROUP
32
25
26
27
28
29
30
31
33
34
35
36
37
38
39
40
41
42
43
44
14
2
3
4
5
6
7
8
9
10
11
12
13
1
15
16
17
18
19
20
21
22
23
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 32 | D04-152-900 | Hexagon bolts with flange | |
| 24.3 | D04-321-900 | Spacing sleeve, injector | |
| 24.4 | D04-323-01 | O-ring | |
| 24.5 | D04-102-901 | Valve seat inert, intake | |
| 24.6 | D04-103-900 | Valve seat insert, exhaust | |
| 24.7 | D04-167-01A | CUP PLUG | |
| 25 | D04-329-900 | Valve bridge, intake | |
| 26 | D03-112-01 | Bolt | |
| 27 | B00000973 | Spherical washer | |
| 28 | D04-147-900 | Clamp, injector | |
| 29 | D04-330-900 | Valve bridge, exhaust | |
| 30 | D04-131-902 | Gasket, air intake pipe | |
| 31 | D04-131-901 | Gasket, air intake pipe | |
| 24.2 | D04-104-900 | Valve guide | |
| 33 | D04-304-900 | Gasket, thermostat | |
| 34 | D02A-311-02 | Hexagon bolts with flange | |
| 35 | D04-110-901 | Valve, intake | |
| 36 | D04-111-900 | Valve, exhaust | |
| 37 | D04-128-900 | Push rod | |
| 38 | S00000500 | Gasket, exhaust manifold | |
| 39 | D04-145-30A | BOLT, EXHAUST MANIFOLD | |
| 40 | D04-127-30C | TAPPET | |
| 41 | B00002145 | HEX HEAD BOLT | |
| 42 | D04-131-900 | Gasket, air intake pipe | |
| 43 | D04-142-900 | Engine lifting eye, front | |
| 44 | D04-337-901 | Rocker arm case seal | |
| 14 | B00002054 | Hexagon bolts with flange | |
| 2 | D04-114-900 | Valve spring retainer | |
| 3 | D04-115-900 | Valve collet | |
| 4 | D04-113-900 | Valve spring | |
| 5 | D04-105-900 | Valve stem seal | |
| 6 | D04-135-901 | Valve cover seal | |
| 7 | S00000060 | Cushion assy, valve cover | |
| 8 | D04-139-02 | GASKET, OIL FILLER CAP | |
| 9 | D04-138-01A | CAP, OIL FILLER | |
| 10 | D04-012-900 | Outlet pipe assy | |
| 11 | D04-334-900 | Gasket | |
| 12 | B00002132 | HEX HEAD BOLT | |
| 13 | D04-328-902 | Intermediate cover | |
| 1 | D04-134-902 | Valve cover | |
| 15 | D04-143-900 | Engine lifting eye, rear | |
| 16 | D04-015-900 | Rocker arm shaft and support assembly | |
| 17 | B00002032 | Hexagon bolts with flange | |
| 18 | B00002134 | HEX HEAD BOLT | |
| 19 | B00002161 | Hexagon bolts with flange | |
| 20 | D04-307-901 | Bolt, air intake pipe | |
| 21 | D04-307-900 | Bolt, air intake pipe | |
| 22 | D04-307-01A | BOLT, INTAKE MANIFOLD | |
| 23 | B00002001 | BOLT, HEX FLANGE HEAD CAP | |
| 24 | D04-001-900 | Cylinder head assy | |
| 24.1 | D02A-309-01 | Заглушка |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
