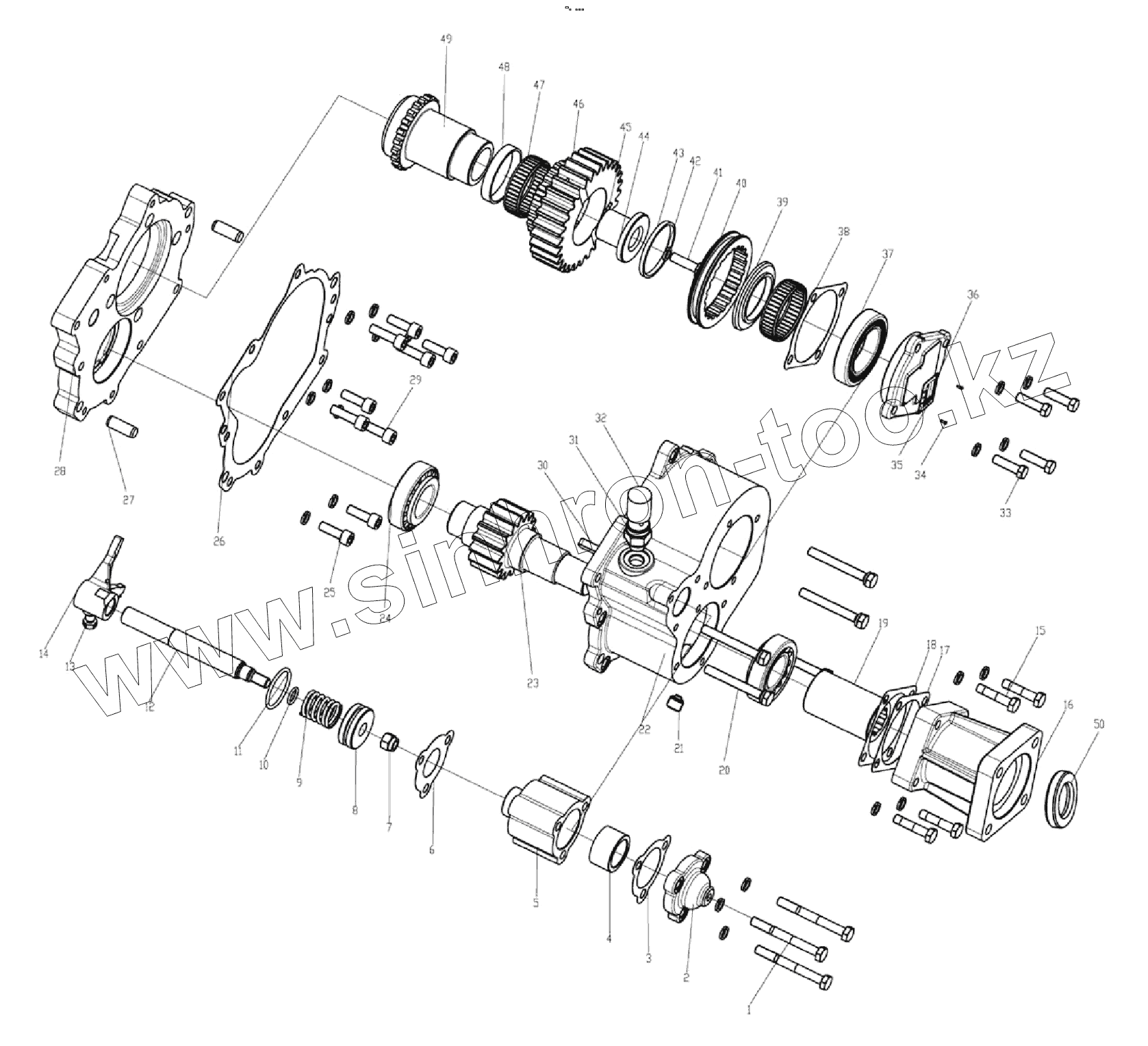

Каталог запасных частей к технике: LGMG AUTOMATIC TRANSMISSION 7JSD200K. QH70 G18196 Take power device
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 4110001003100 | Bolt | |
| 2 | 4110001003077 | Cover | |
| 3 | 4110000395234 | Gasket, cylinder cover | |
| 4 | 4110001003078 | Spacer sleeve | |
| 5 | 4110001003079 | Cylinder block | |
| 6 | 4110000395238 | Gasket cylinder | |
| 7 | 4110001003080 | Nut | |
| 8 | 4110001003081 | Piston | |
| 9 | 4110001003082 | Spring | |
| 10 | 4030000020 | O-ring | |
| 11 | 4110000395248 | O-ring | |
| 12 | 4110001003083 | Shaft | |
| 13 | 4110000395247 | Stop screw | |
| 14 | 4110001003084 | York | |
| 15 | 4110001003099 | Bolt | |
| 16 | 4110001003085 | Cover | |
| 17 | 4110000395231 | Gasket | |
| 18 | 4110000395228 | Adjusting washer | |
| 19 | 4110001003086 | Joint | |
| 20 | 4110001003087 | Hexangular bolts with glue and spring gasket | |
| 21 | 4110000395255 | Square-slot taper magnetic screw plug | |
| 22 | 4110001003088 | Cover | |
| 23 | 4110001003089 | Shaft | |
| 24 | 4110000395261 | Taper roller bearing | |
| 25 | 4110000395253 | Inner hex cylindrical screw | |
| 26 | 4110001003090 | Washer | |
| 27 | 4110001003091 | Pin | |
| 28 | 4110001003092 | Cover | |
| 29 | 4110001003093 | Screw | |
| 30 | 4110001003094 | Straight key | |
| 31 | 4110000329098 | Pressure switch | |
| 32 | 4110001003095 | Spacer sleeve | |
| 33 | 4110000395258 | Hex bolt | |
| 34 | 4110000395249 | Screw on rivet | |
| 35 | 4110000395225 | Id plate | |
| 36 | 4110000395221 | End cover | |
| 37 | 4110000395264 | Bearing | |
| 38 | 4110000395222 | Gasket end cover | |
| 39 | 4110000395220 | Retainer plate, bearing | |
| 40 | 4110000395233 | Clutch gear sleeve | |
| 41 | 4110000395257 | Hex bolt | |
| 42 | 4110001003097 | Pin | |
| 43 | 4110000395243 | Spacing sleeve, bearing, 4th gear | |
| 44 | 4110000395218 | Sleeve | |
| 45 | 4110000395044 | Spring column pin | |
| 46 | 4110000395219 | Input gear | |
| 47 | 4110000395265 | Needle bearing | |
| 48 | 4110000395217 | Spacing sleeve, bearing | |
| 49 | 4110000395216 | Hollow shaft | |
| 50 | 4110001003098 | Oil sea |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
