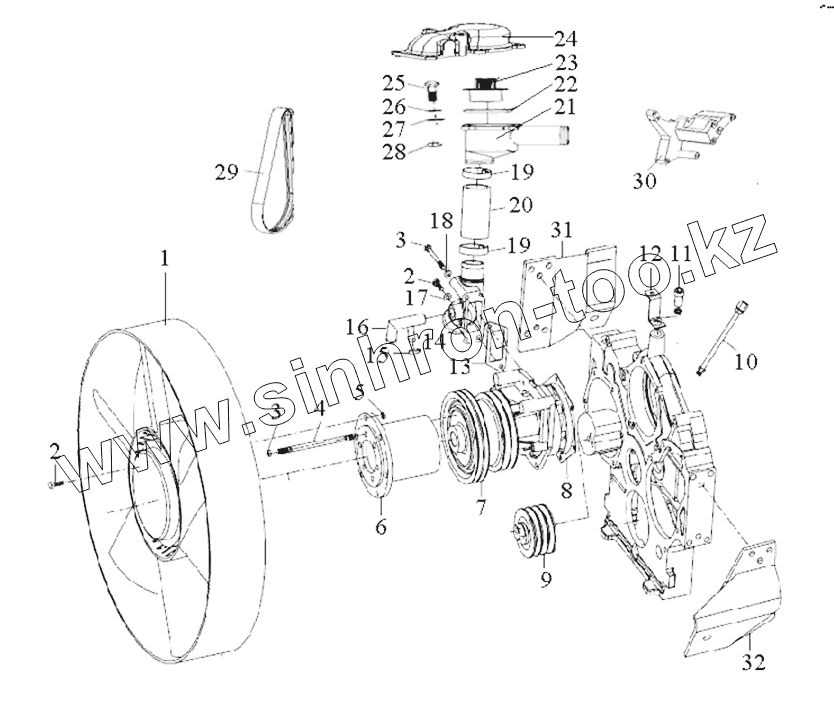

Каталог запасных частей к технике: HOWO WD615.47. 10A7A2 Cooling System
1
2
2
3
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
19
19
20
20
22
22
22
22
23
23
23
23
24
25
26
27
28
29
31
32
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | VG1246060030 | Si-Viscous fan-704 | |
| 2 | 190003802424 | Screw | |
| 3 | 190003888452 | Nut | |
| 4 | 190003810020 | Stud for Si-Viscous fan | |
| 5 | 190003888451 | Nut | |
| 6 | VG1038060243 | Flange for Si-Viscous fan | |
| 7 | VG1500060051 | Water pump assembly | |
| 8 | VG140608 | Gasket | |
| 9 | VG2600060313 | Tensioning roller | |
| 10 | VG2600060460 | Grease nozzle | |
| 11 | Q218B1625 | Screw | |
| 13 | VG14060024 | Gasket | |
| 14 | VG1560060023 | Connector | |
| 15 | 190003989336 | Хомут | |
| 16 | VG1560060004 | Pipe connecting piece | |
| 17 | 190003932023 | Spring washer | |
| 18 | 190014070002 | Washer | |
| 19 | 190003989308 | Hose clip | |
| 20 | VG61000060276 | Патрубок | |
| 21c | VG1047060005/1 | Thermostat assy | |
| 21d | VG1047060005/2 | Thermostat assy | |
| 21,1 | VG1500061203 | Housing | |
| 21,1 | VG1095061204 | Housing | |
| 22 | VG1047060004 | Washer | |
| 22 | VG1047060014 | Washer | |
| 23 | VG1047060003 | Thermostat core | |
| 23 | VG1047060013 | Thermostat core | |
| 24 | VG1500040105 | Pipe | |
| 25 | Q150B0830 | болт | |
| 26 | Q40308 | Пружинная шайба | |
| 27 | Q40108 | Шайба | |
| 28 | Q340B08 | гайка | |
| 29 | VG1069020010 | Belt for water pump | |
| 31 | VG1095060009 | Bracket | |
| 32 | VG1095060006 | Bracket |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
