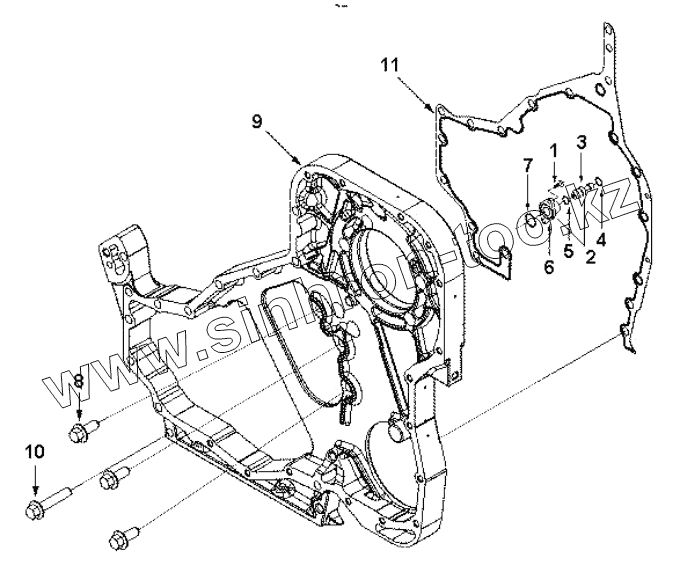

Каталог запасных частей к технике: DCEC 6CTA8.3-C190-II. BB 9881 Gear Room

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано BAW Caterpillar Cummins DCEC DongFeng Doosan FAW Great Wall Hitachi HOWO HSW IVECO Komatsu LGMG Perkins Raywin SDEC Shaanxi Valmet Weichai XINCHAI YTO Yuchai ZF Алтайдизель Барнаултрансмаш ВТЗ ГАЗ ЗиД ЗМЗ Камский автозавод ММЗ СМД ТМЗ УМЗ ЧТЗ ЮМЗ ЯЗДА ЯМЗ

Модель Не выбрано 4B3.9-G1 4B3.9-G12 (2018) 4B3.9-G2 (2014) 4BT3.9-G1 (2014) 4BTA3.9-G2 (2014) 6BTAA5.9-G12 (2016) 6CTA8.3-C190-II (2016) 6ZTAA13-G2 (2014) ISZ450 41 (2014)

Схема > Не выбрано AH 9141 Intake air preheater AP90256 Parameter plate BB 9110 Cylinder BB 9176 Cylinder block lubrication line BB 9202 Block Cooling Line BB 9881 Gear Room BR 9238 Crankcase Ventilation CH 9087 Coolant Auxiliary Connection Pipe DA 9728 Torsional Vibration Damper DF 9710 Front Gear Train Accessory Installation EC 9076 Thermostat ED 9071 Label EE 9342 Generators EH 9591 Generator Mounts FA 9313 Fan Driver FA 9739 Fan Drive Mount FE 9050 Booster compensation connection pipe FF 9340 Fuel Filter Locations FF 9489 Fuel filter connection line FH 9463 Flywheel housing FH 9777 Flywheel Housing Line FP92847 Fuel Pump Mount FP93751 Fuel Pump FS 9724 Fuel transfer pump FT 9142 Fuel Line FV 9373 Oil Shutoff Solenoid Valve FW 9826 Flywheel FW 90025 Flywheel mount GG 9779 Front gear housing cover GG 9804 Gear housing cover mount HC 9073 Heater Mount LA 9068 Engine Lifting Eyes LC 9227 Oil Cooler LF 9130 Oil Filter LG 9974 Oil Dipstick LO 9701 Oil LP 9725 Oil Pump OB 9329 Oil filling device OB 9337 Cylinder Block Refueling Accessory OP 9352 Oil Pan PA 9001 Accessory Drive Pulley PP40722 Performance Parts PP98458 Cylinder head line PP98560 Supercharger PP99853 Injector line RL 9732 Rocker Arm RP 9071 Engine Coolant Degasser SD 9113 Temperature switch SD 9448 Oil Pressure Sensor SM 9104 Starter Mount SS 9792 Paint ST 9540 Starter TB91070 Generator Adjustment Arm TB91072 Exhaust Manifold TB91073 Intercooler TK 9022 Torque Converter Cooling TL 9181 Throttle Control TP97824 Booster Line VC 9221 Valve Housing Cover WA 9754 Intercooler Line WF 9160 Rust Inhibitor Locations WI 9145 Inlet connection pipe WO 9052 Water outlet connection WP 9916 Belt Tensioner WP 9918 Water Pump WP 9969 Water Pump Drive XS 9478 Exhaust Connection

1

2

3

4

5

6

7

8

9

10

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	C3907998		SCREW, ROUND HEAD CAP
2	C3913995		Timing Xiao Seat
3	C3903924		PIN, TIMING
4	C3904849		RING, RETAINING
5	C3913994		SEAL, O RING
6	C3919683		HOUSING, TIMING PIN
7	C3915772		SEAL, RECTANGULAR RING
8	C3926846		SCREW, HEX FLANGE HEAD CA
9	C4992992		HOUSING, GEAR
10	C3943885		SCREW, HEX FLANGE HEAD CA
11	C3944293		GASKET, GEAR HOUSING

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
