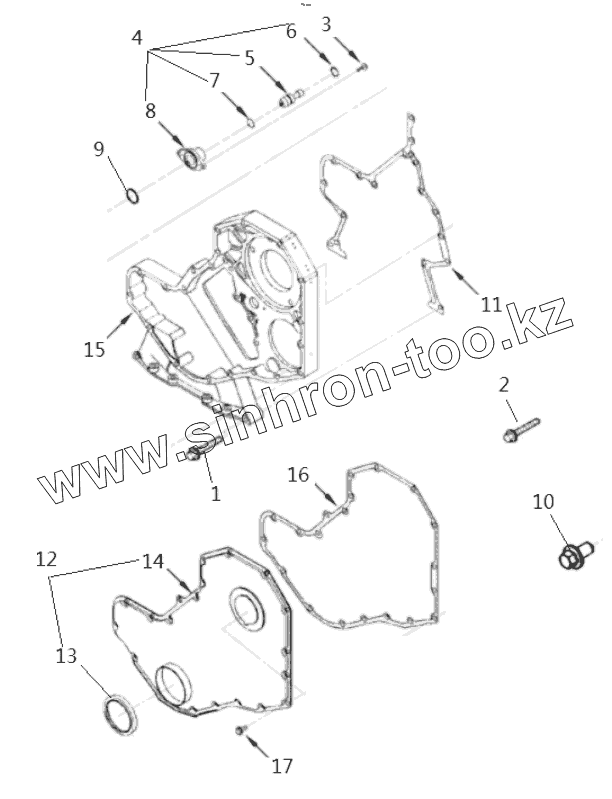

Каталог запасных частей к технике: DCEC 4B3.9-G12. BP 9122 Front gear chamber cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | C3900633 | SCREW, HEX FLANGE HEAD CA | |
| 2 | C3900633 | SCREW, HEX FLANGE HEAD CA | |
| 3 | C3907998 | SCREW, ROUND HEAD CAP | |
| 4 | C3913995 | Timing Xiao Seat | |
| 5 | C3903924 | PIN, TIMING | |
| 6 | C3904849 | RING, RETAINING | |
| 7 | C3913994 | SEAL, O RING | |
| 8 | C3919683 | HOUSING, TIMING PIN | |
| 9 | C3915772 | SEAL, RECTANGULAR RING | |
| 10 | C3924962 | SCREW, HEX FLANGE HEAD CA | |
| 11 | C3938156 | GASKET, GEAR HOUSING | |
| 12 | C4991493 | Gear chamber cover | |
| 13 | C4991305 | SEAL, OIL | |
| 14 | C4991307 | COVER, GEAR | |
| 15 | C5267782 | HOUSING, GEAR | |
| 16 | C5292292 | GASKET, GEAR COVER | |
| 17 | C5363403 | Hexagonal flange bolts |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
