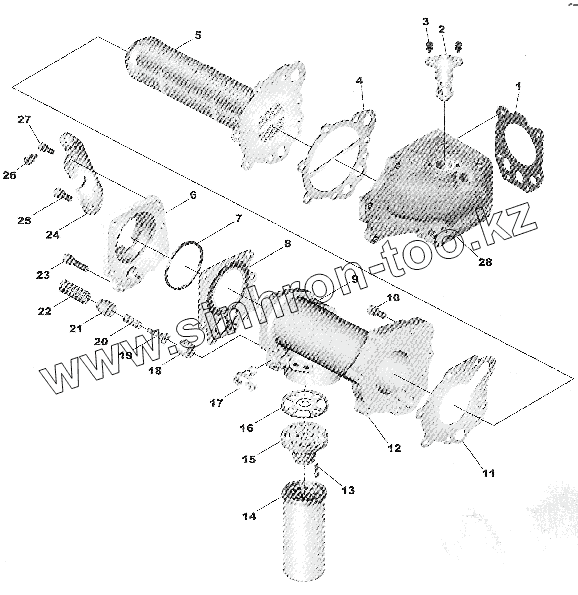

Каталог запасных частей к технике: Cummins NT855-C280 BC III. OIL COOLER

Тип техники

Марка

Модель

Схема

1

2

3

3

4

5

6

7

8

9

10

10

10

11

13

14

15

16

17

18

19

20

21

22

25

26

27

28

Позиция на иллюстрации	Заводской номер детали		Название детали
3044896	3044896		COVER, PROTECTIVE
3030808	3030808		SEAL, 0 RING
3030807	3030807		UNIT, SENDING
3044901	3044901		SCREW5CAPTIVE WASHER CAP
101996	101996		SCREW, PAN HEAD CAP
3053393	3053393		COOLER, LUB OIL
3045979	3045979		SEAL, O RING
3031005	3031005		SCREW, PAN HEAD CAP
3031956	3031956		COOLER5LUBE OIL MTG
3165997	3165997		DRAIN COCK
3008466	3008466		PLUG, PIPE
3013786	3013786		PLUG, PIPE
3017915	3017915		WASHER, PLAIN
3018697	3018697		BRACE, OIL COOLER
1	3008017		GASKET, OIL COOLER SUPPORT
2	3023512		VALVE, BYPASS
3	S604		SUPPORT, OIL GAUGE TUBE
3	S117		SCREW, HEXAGON HEAD CAP
4	3047464		GASKET, OIL COOLER CORE
5	3412285		CORE, COOLER
6	3069079		COVER, TOR CNV OIL COOLE
7	3018695		SEAL, RECTANGULAR RING
8	3069014		GASKET, LUB OIL CLR COVE
9	3052210		HOUSING, OIL COOLER
10	3010597		SCREW, CAPTiVE WASHER CAP
10	3010596		SCREW, CAPTIVE WASHER CAP
10	3044413		SCREW, CAPTIVE WASHER CAP
11	3047465		GASKET, LUB OIL CLR HSG
13	212535		SCREW TWELVE POINT CAP
14	3401544		Фильтр масляный
15	3918334		HEAD, LUB OIL FILTER
16	3070478		GASKET, FILTER HEAD
17	3035028		ASSEMBLY, SENSING UNIT
18	3030804		PISTON, BYPASS VALVE
19	3030806		PLUNGER, BYPASS VALVE
20	3039296		SPRING, COMPRESSION
21	3030805		PISTON, PRESSURE SENSING
22	3030803		SPRING, COMPRESSION
25	3035624		SCREW, CAPTIVE WASHER CAP
26	3040838		SCREW, CAPTIVE WASHER CAP
27	3040837		SCREW, CAPTIVE WASHER CAP
28	3027460		SUPPORT, OIL COOLER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
