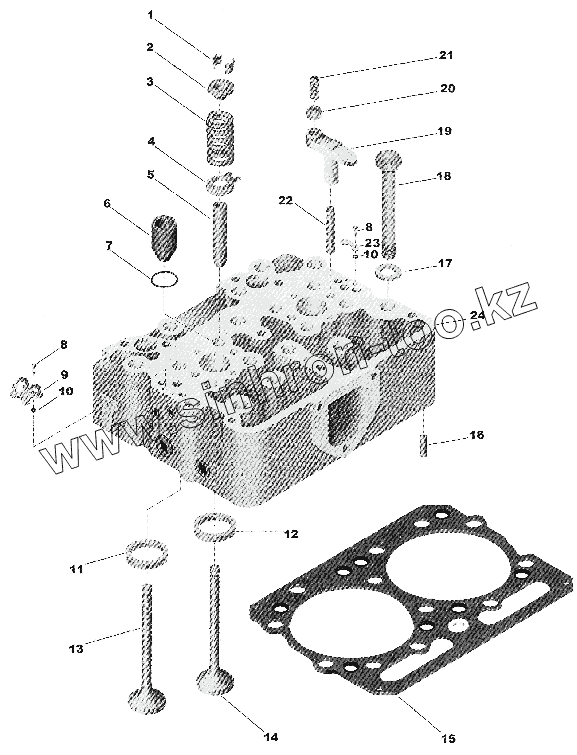

Каталог запасных частей к технике: Cummins NT855-C280 BC III. CYLINDER HEAD
1
2
3
4
5
6
7
8
8
9
9
10
10
11
12
13
14
15
17
18
19
20
21
22
23
24
24
24
24
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3030038 | 3030038 | CROSSHEAD | |
| S911В | S911В | PLUG, PIPE | |
| 3008470 | 3008470 | PLUG, PIPE | |
| 3008469 | 3008469 | Заглушка трубки | |
| 67861 | 67861 | PLUG, PIPE | |
| 1 | 127554 | COLLET, VALVE | |
| 2 | 170296 | GUIDE, VALVE SPRING | |
| 3 | 211999 | SPRING, VALVE | |
| 4 | 3042745 | GUIDE, VALVE SPRING | |
| 5 | 3006456 | GUIDE, VALVE STEM | |
| 6 | 3011934 | STEEVE, INJECTOR | |
| 7 | 3007759 | SEAL, O RING | |
| 8 | 70772 | SCREW, FILLISTER HEAD CAP | |
| 9 | 147100 | CROSSOVER, FUEL | |
| 9 | BM73331 | CROSSOVER, FUEL | |
| 10 | 131026 | SEAL, O RING | |
| 11 | 127930 | INSERT, VALVE | |
| 12 | 200354 | INSERT, VALVE | |
| 13 | 145701 | VALVE, EXHAUST | |
| 14 | 135957 | VALVE, INTAKE | |
| 15 | 4058790 | GASKET, CYLINDER HEAD | |
| 17 | 69699 | WASHER, PLAIN | |
| 18 | 3013623 | SCREW, HEXAGON HEAD | |
| 19 | 3028293 | CROSSHEAD, VALVE | |
| 20 | 203131 | Гайка | |
| 21 | 147389 | SCREW | |
| 22 | 123558 | GUIDE, VALVE CROSSHEAD | |
| 23 | 135308 | PLATE, COVER | |
| 24 | 3418678 | HEAD, CYLINDER | |
| 24 | 3418529 | HEAD, CYLINDER | |
| 24 | 3007716 | HEAD, CYLINDER | |
| 24 | 3027340 | HEAD, CYLINDER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
