Каталог запасных частей к технике: Cummins-4BT3.9. TURBOCHARGER

Тип техники

Марка

Модель

Схема

3524121

3802124

1

2

3

3

4

5

6

7

8

9

10

11

11

12

13

13

14

14

15

15

15

15

15

16

16

16

17

17

18

19

20

20

21

22

23

23

24

25

25

26

27

28

29

29

30

30

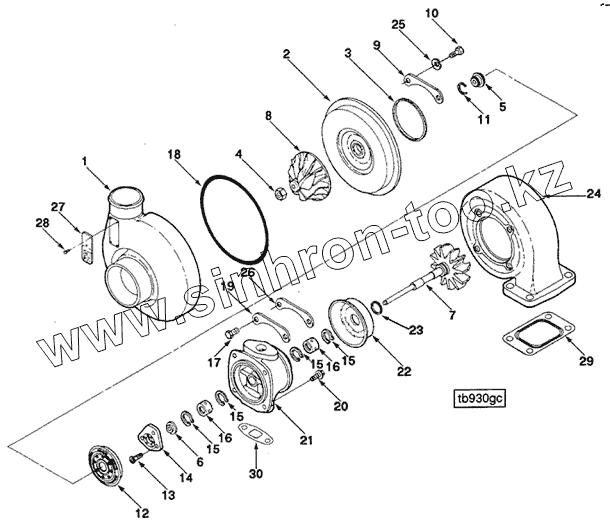

Позиция на иллюстрации	Заводской номер детали		Название детали
3524121	3524121		Turbocharger
3523176	3523176		Seal, Rectangular Ring
3802147	3802147		Kit, Turbo Repair
3523176	3523176		Seal, Rectangular Ring
3802124	3802124		Turbocharger
3523Э58	3523Э58		Seal, О Ring
3545652	3545652		Kit, Turbo Repair
3523323	3523323		Rotor Assembly
1	3521848		Housing, Compressor
2	3521121		Diffuser, Turbocharger
3	3502449		Seal, Rectangular Ring
3	3502449		Seal, Rectangular Ring
4	3503562		Nut, Lock
5	3503662		Slinger, Oil
6	3518Э80		Collar, Thrust
7	3519336		Shaft & Wheel
8	3521863		Impeller, Tur Compressor
9	3502734		Plate, Clamping
10	3759526		Screw, Hexagon Head Set
11	3758848		Seal, Split Ring
11	3758848		Seal, Split Ring
12	3503668		Baffle, Oil
13	3503347		Screw, Flat Head Cap
13	3503347		Screw, Flat Head Cap
14	3525739		Bearing, Tur Thrust
14	3525739		Bearing, Tur Thrust
15	3762259		Ring, Retaining
15	3762259		Ring, Retaining
16	3503100		Bearing, Turbocharger
16	3503100		Bearing, Turbocharger
17	3759917		Screw, Hexagon Head Set
17	3759917		Screw, Hexagon Head Set
18	3523958		Seal, O'Ring
19	3501188		Plate, Clamping
20	3527184		Screw, Hex Flange Head Cap
20	3527184		Screw, Hex Flange Head Cap
21	3520702		Housing, Tur Bearing
22	3519302		Shield, Turbocharger Heat
23	375S754		Seal, Split Ring
23	3756754		Seal, Split Ring
24	3524123		Housing, Turbine
25	3518004		Washer, Lock
25	3518004		Washer, Lock
26	3501102		Lock plate
27	3527619		Data plate
28	3519163		Screw, Drive
29	3901356		Gasket, Turbocharger
29	3901356		Gasket, Turbocharger
30	3914388		Gasket, Oil Drain
30	3914388		Gasket, Oil Drain

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
