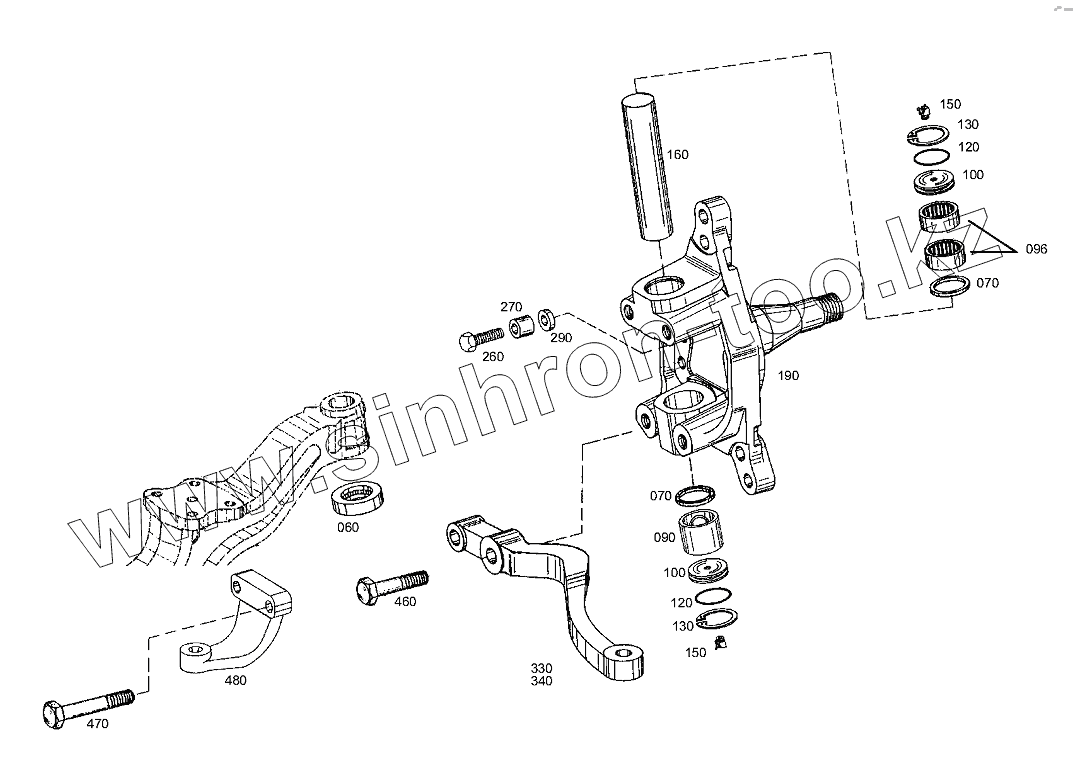

Каталог запасных частей к технике: ZF Мост передний ZF RL-85A. JOINT HOUSING
/4.gif)
060
070
070
090
096
100
100
120
120
130
130
150
150
160
190
260
270
290.010
330
340
460
470
480
480.001
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 060 | 0750.115.411 | AX.ROLLER BEAR. | |
| 070 | 0734.300.171 | SEALING RING | |
| 090 | 0730.260.702 | BUSH | |
| 096 | 0735.298.256 | NEEDLE SLEEVE | |
| 100 | 4474.385.002 | SEALING HOLDER | |
| 120 | 0634.304.270 | O-RING | |
| 130 | 0630.502.063 | Стопорное кольцо | |
| 150 | 0632.604.008 | LUBRIC.NIPPLE | |
| 160 | 4474.385.019 | PIVOT PIN | |
| 190 | 4474.385.134 | STEER.KNUCKLE | |
| 260 | 0736.010.072 | STOP SCREW | |
| 270 | 0730.161.039 | STOP BUSH | |
| 290.010 | 0730.161.034 | STOP WASHER | |
| 290.020 | 0730.161.035 | STOP WASHER | |
| 290.030 | 0730.161.036 | STOP WASHER | |
| 290.040 | 0730.161.077 | STOP WASHER | |
| 290.050 | 0730.161.078 | STOP WASHER | |
| 290.060 | 0730.161.079 | STOP WASHER | |
| 290.070 | 0730.161.080 | STOP WASHER | |
| 290.080 | 0730.161.081 | STOP WASHER | |
| 290.090 | 0730.161.082 | STOP WASHER | |
| 290.100 | 0730.161.083 | STOP WASHER | |
| 290.110 | 0730.161.084 | STOP WASHER | |
| 290.120 | 0730.105.643 | STOP WASHER | |
| 290.130 | 0730.105.644 | STOP WASHER | |
| 290.140 | 0730.105.645 | STOP WASHER | |
| 290.150 | 0730.105.774 | STOP WASHER | |
| 290.160 | 0730.105.646 | STOP WASHER | |
| 290.170 | 0730.105.773 | STOP WASHER | |
| 330 | 4474.385.041 | TRACK LEVER | |
| 340 | 4474.385.042 | TRACK LEVER | |
| 460 | 0636.011.558 | HEXAGON SCREW | |
| 470 | 0636.011.615 | HEXAGON SCREW | |
| 480 | 4474.385.043 | STEERING ARM | |
| 480.001 | 4474.485.049 | STEERING ARM |
