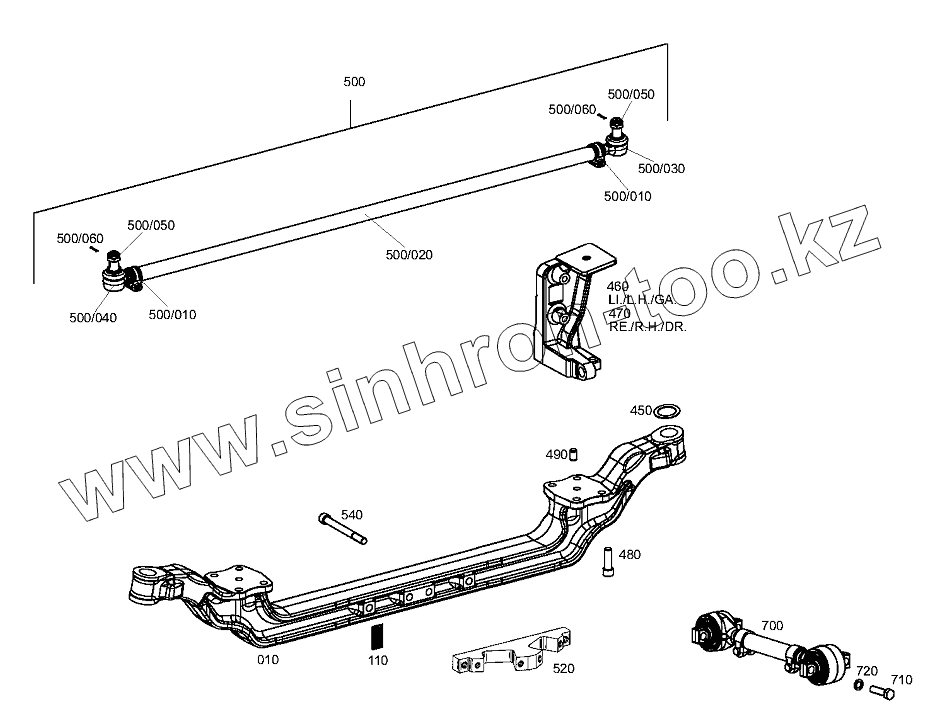

Каталог запасных частей к технике: ZF Мост передний ZF RL-85A. AXLE CASING
/3.gif)
010
110
450.010
450.020
450.030
450.040
450.050
450.060
450.070
450.080
450.090
450.100
450.110
450.120
450.130
450.140
450.145
450.150
450.160
450.170
460
470
480
490
500
500.010
500.010
500.010
500.020
500.020
500.030
500.040
500.050
500.050
500.060
500.060
520
540
700
710
720
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 010 | 4474.385.040 | AXLE CASING | |
| 110 | 0730.365.127 | TYPE PLATE | |
| 450.010 | 0730.105.918 | WASHER | |
| 450.020 | 0730.105.919 | WASHER | |
| 450.030 | 0730.105.920 | WASHER | |
| 450.040 | 0730.105.921 | WASHER | |
| 450.050 | 0730.105.922 | WASHER | |
| 450.060 | 0730.105.923 | WASHER | |
| 450.070 | 0730.105.924 | WASHER | |
| 450.080 | 0730.105.925 | WASHER | |
| 450.090 | 0730.105.926 | WASHER | |
| 450.100 | 0730.105.927 | WASHER | |
| 450.110 | 0730.105.928 | WASHER | |
| 450.120 | 0730.111.639 | WASHER | |
| 450.130 | 0730.111.640 | WASHER | |
| 450.140 | 0730.111.641 | WASHER | |
| 450.145 | 0730.111.642 | WASHER | |
| 450.150 | 0730.111.643 | WASHER | |
| 450.160 | 0730.111.644 | WASHER | |
| 450.170 | 0730.109.498 | WASHER | |
| 460 | 4474.385.038 | SPRING CARRIER | |
| 470 | 4474.385.044 | SPRING CARRIER | |
| 480 | 0636.115.146 | CAP SCREW | |
| 490 | 0631.302.112 | CYLINDRICAL PIN | |
| 500 | 0501.006.836 | TRACK ROD | |
| 500.010 | 0501.208.615 | CLIP | |
| 500.010 | 0501.321.099 | HEXAGON SCREW | |
| 500.020 | 0637.012.500 | HEXAGON NUT | |
| 500.020 | 0501.317.155 | PIPE | |
| 500.030 | 0501.211.834 | BALL JOINT | |
| 500.040 | 0501.211.835 | BALL JOINT | |
| 500.050 | 0637.009.502 | CASTLE NUT | |
| 500.060 | 0631.701.047 | SPLIT PIN | |
| 520 | 4474.385.075 | FIXING DEVICE | |
| 540 | 0636.101.929 | CAP SCREW | |
| 700 | 0501.214.561 | STRUT | |
| 710 | 0636.020.253 | HEXAGON SCREW | |
| 720 | 0730.101.840 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
