Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E3. CENTRAL LOCKING SYSTEM

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано N 116 (MAN) E3 (2008) N 116 (MAN) E3 (вар.) (2008) N 116 E2 (2000) N 3316 (DC OM 501 LA) E3 (2002) N 3316 (MAN D 2866 LOH 29) E3 (2002) N 3318 U E3 (2008) N 516 SHD (MAN) E2 (2002) N 516 SHD (MAN) E3 (2008) N 516 SHD (MB) E2 (2000) N 516 SHD (MB) E3 (2000) N 516 SHD (MB, DC) E2 (2002)

Схема > Не выбрано ENGINE ADD-ON PARTS ADD-ON PARTS FLAME STARTING SYSTEM ENGINE SUSPENSION ENGINE SUSPENSION ENGINE SUSPENSION ENGINE SUSPENSION ALTERNATOR ALTERNATOR BRACKET ALTERNATOR STARTER COMPRESSOR SUPPORT COMPRESSOR SPARE PARTS COMPRESSOR COMPRESSOR AIR COMPRESSOR POWER-STEERING PUMP V-BELT DRIVE ACCELERATOR CONTROL UNIT ENGINE BRAKE 3/2 DIRECTIONAL CONTROL VALVE 3/2 DIRECTIONAL CONTROL VALVE FUEL FILTER DIESEL FUEL LINE HEATER FUEL SYSTEM CHANGE OVER COCK FUEL TANK AUXILIARY FUELTANK EXHAUST SYSTEM SILENCER HEAT SHIELD AIR FILTER SYSTEM AIR FILTER SYSTEM RADIATOR RADIATOR WATER CIRCULATION WATER CIRCULATION AIR CIRCULATION AIR CIRCULATION COUPLING WITH PEDAL WITHOUT AVS COUPLING WITH PEDAL WITHOUT AVS ASSEMBLY CLUTCH GEARBOX GEARBOX GEARBOX GEARBOX SUPPORT SUPPORT GEARSCHIFT LEAVER SELECTOR SHAFT AND PARTS OIL COOLING (TRANSMISSION) RETARDER TELMA TELMA-COVERING RETARDER VOITH TRANSMISSION SUPPORT TRANSMISSION SUPPORT TRANSMISSION SUPPORT TRANSMISSION SUSPENSION TRANSMISSION SUSPENSION JOINT SHAFT REAR AXLE REAR AXLE PARTS REAR AXLE PARTS REAR AXLE PARTS CASING REAR AXLE PARTS REAR AXLE DISK BRAKE REAR AXLE DISK BRAKE REAR AXLE SUBFRAME REAR AXLE SUBFRAME SPRING BRIDLE PLATE FRONT AXLE FRONT AXLE PARTS FRONT AXLE PARTS DISK BRAKE FRONT AXLE DISK BRAKE FRONT AXLE STABILIZER DISK BRAKE TRAILING AXLE DISK BRAKE TRAILING AXLE TRAILING AXLE TRAILING AXLE TRAILING AXLE CARRIER FOR ARRESTING CYLINDER CASTER AXLE PARTS CASTER AXLE PARTS AIR BAGS AND AIR SPRING DISK AIR BAGS AND AIR SPRING DISK SHOCK ABSORBER SHOCK ABSORBER AIR SUSPENSION AIR SUSPENSION 3RD AXLE RELIEVE RAISE AND LOWER BRAKE SYSTEM BRAKE SYSTEM AIR DRYER COOLING COIL AIR TANK RUNNING BRAKE RUNNING BRAKE HAND BRAKE VALVE VALVE TRAILING AXLE VALVE TRAILING AXLE VALVE SUPPORT TRAILING AXLE CONSOLE FOR TEST CONNECTION BRAKE SYSTEM CONNECTION BRAKE HOSE FRONT AXLE STEARING WHEEL AND COVERING STEERING MECHANICS FRONT AXLE STEERING MECHANICS FRONT AXLE STEERING MECHANICS HYDRAULIC OIL RESERVOIR STEERING HYDRAULICS STEERING PARTS BEVEL BOX STEERING GEAR SERVOCOMTRONIC SPARE PARTS LIST WHEELS AND TYRES WHEELS AND TYRES ACCESSORIES WHEEL CAP STARLINER WHEEL CAP VEHICLE FRAME BATTERY MOUNTING BATTERY MOUNTING RESERVE TIRE STORAGE RESERVE TIRE STORAGE BACK CROSS BAR WINDOW PILLAR LATERAL PROFILE PARTS GENERAL DASH BOARD INSTRUMENTS INSTRUMENTS FOR DASH BOARD LEFT INTRUMENTS FOR DASH BOARD RIGHTH. DRIVER’S INSTRUMENTS SWITCH SWITCH SYMBOLS DASH BOARD MAIN SWITCHBOARD E-SWITCH CASE REAR E-SWITCH CASE REAR E-SWITCH CASE REAR EXTRA SWITCH PANELS EXTRA SWITCH PANELS SWITCH BOX OUTSIDE LIGHTING OUTSIDE LIGHTING INSIDE LIGHTING ENTRANCE ILLUMINATION LIGHTING UNIT FOR REAR SEATS LIGHTING INSIDE FOR INFORMATION WIPER SYSTEM BOTTOM WIPERS-WASHER SYSTEM LOCKING SYSTEM HEADLIGHT WASHER SYSTEM WIPER SYSTEM TOP TAB HOUSING JUNIOR-POWER-TIMER HOUSING PLUG HOUSING FLAT SLEEVE HOUSING FLAT PLUG HOUSING AMP CYLINDRICAL TYPE CONNECTION CABLE CORD COMPRESSED AIR HORN HORN BACKUPHORN VOLTAGE TRANSFORMER VOLTAGE TRANSFORMER BATTERY VENTILATOR BATTERY MAIN SWITCH BATTERY MAIN SWITCH PNEUM. ACCIDENT-DATA RECORDER RADIO, CD - PLAYER LOUDSPEAKER BASS SPEAKER CONTROL CAMERA BACKUP CAMERA ANTENNA ALARM SYSTEM VIDEO SYSTEM MONITOR MONITOR TFT-LCD 10,4dm MONITOR TFT-LCD 12,1dm MONITOR MICROPHONE NAVIGATION SYSTEM SHEETING OUTSIDE ENGINE ISOLATION SHEETMETAL DRIVER’S WINDOW SHEET METAL SLEEPING CABIN SHEETMETAL INSIDE SHEETMETAL LUGG. COMPARTMENT MUD FLAP MUD FLAP MOTOR ENCAPSULATION RADIATAOR ENCAPSULATION ISOLATION SYNTHETIC PARTS OUTSIDE ROOF/FRONT ADD ON PARTS REAR PART MOUNTING PARTS WHEEL HOUSE MOUNTING PARTS WHEEL HOUSE TALL WHEEL HOUSE REAR SYNTHETIC PARTS INSIDE STAIR FRONT STAIR REAR BATTERY-POST CAP SYNTHETIC PARTS INSIDE FRONT ANGLE COVER HEATING CIRCULATION INDEPENDENT CAR HEATING AIR - CONDITIONING - FRONTBOX TEDDY-CIRCULATING-AIR HEATING RADIATORS AIR CONDITIONING SYSTEM FILTER AIR CONDITIONING PARTS FOR CLIMATIC CONTROL OUTSIDESTRIP STRIP INSIDE EDGE PROTECTOR LUGGAGE ROOM STORAGE FLAP FRONT LUGGAGE DUMP LUGGAGE DUMP WITH MONITOR LUGGAGE DUMP STRIKER FOR LUGGAGE DUMP INSIDE COVER AND UPPER DECK FRON INSIDE COVER AND UPPER DECK FRONT INTERIOR ROOF INSIDE COVER MIDDLE INSIDE COVER MIDDLE SUN ROOF PILLAR TRIM DASHBOARD COMPONENTS DASH BOARD COMPONENTS STRIP INSIDE HANDRAILS HANDRAILS FLOOR CAP WOOD FLOORING WINDSHIELD-ROLLER WINDOW SHADE MIRRORS FIRE EXTINGUISHER KITCHEN KITCHEN WITH FRIDGE COFFEE - MACHINE COFFEE - MACHINE TM40 SPARE PARTS SPARE PARTS FOR COFFEE-PERCOLATOR SPARE PARTS FOR COFFEE-PERCOLATOR HOT WATER HEATER ELECTRIC RESERVOIR HOT WATER WATER RESERVOIR HOT AIR OVEN TOILET REFRIGERATOR WITH COMPRESSOR FRADIATOR ASSEMBLY SKI CARRIER BOX COVERING FOR DRIVER CENTRALISED LUBRICATION SYSTEM ELECTRIC SCOOTER FRONT FLAP FRONT FLAP BUMPERS WINDSCREEN REAR WINDOWS SIDE WINDOWS SIDE WINDOWS SIDE WINDOWS SIDE WINDOWS WINDOWS DRIVER WINDOW WINDOW REPAIR MATERIAL FLAPS FLAPS FLAPS FLAPS SERVICE FLAP FRONT RIGHTHANDED LID FOR DRIVER’S STORAGE SPACE SERVICE FLAP REAR RIGHT LUGGAGE-COMPARTMENT FLAPS SERVICE DOOR REFRIGERATOR SERVICE DOOR REFRIGERATOR FLAPS FLAPS SERVICE FLAP SERVICE FLAP TANK FILLER FLAP LUGGAGE-COMPARTMENT FLAPS CPL. FLAP HANDLE EDGE PROTECTOR SECTION LUGGAGE COMPARTEMENT LID FRONT FLAP FRONT FLAP ENGINE DOOR CENTRAL LOCKING SYSTEM OUTWARD-SWINGING DOOR FRONT LH OUTWARD-SWINGING DOOR FRONT LH OUTWARD-SWINGING DOOR REAR LH OUTWARD-SWINGING DOOR REAR LH ROTARY COLUMN FRONT ROTARY COLUMN REAR SPINDLE DRIVE LH OUTWARD-SWINGING DOOR FRONT RH OUTWARD-SWINGING DOOR FRONT RH OUTWARD-SWINGING DOOR FRONT RH ROTARY COLUMN RH ROTARY COLUMN RH SPINDLE DRIVE RH SPINDLE DRIVE RH DOOR REAR RH DOOR REAR RH DOOR CONTROL UNIT DOOR CONTROL UNIT EMERGENCY LOOK EMERGENCY LOOK COVERING OUTSIDE HINGED DOOR LATCH EMERGENCY DOOR LOCKING SYSTEM DRIVER’S SEAT ISRI DRIVER’S SEAT RECARO FRONT PASSENGER’S SEAT SEATING PARTS SEAT RAIL TOOLBOX ACCESSORIE TOW ROD SAFETY SIGNS

1

2

3

4

5

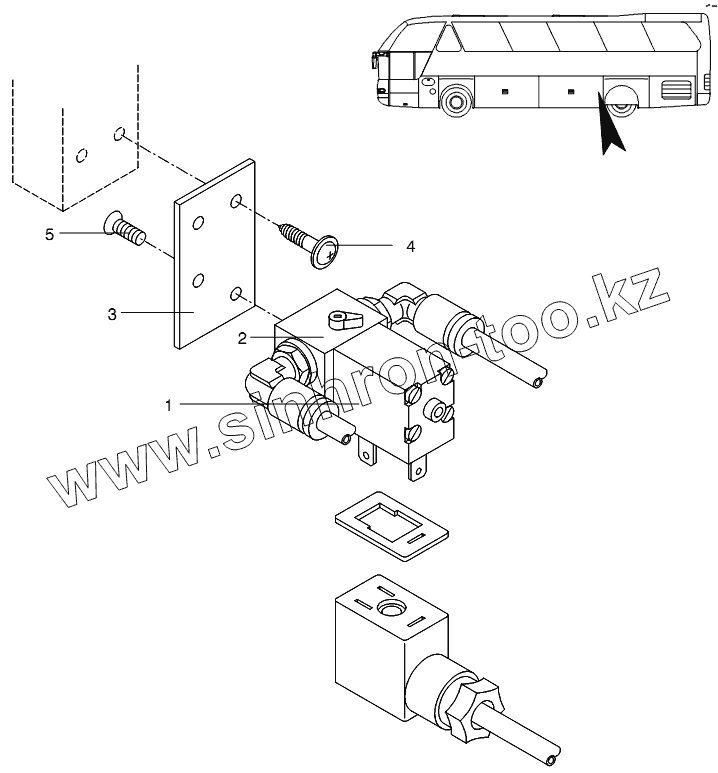

Позиция на иллюстрации	Заводской номер детали		Название детали
1	11034123		SOLENOID VALVE
2	11034128		CONNECTION BOARD
3	11034362		BASE PLATE FOR 3/2 WAY VALVE
4	11056704		SCREW
5	11056255		SCREW

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
