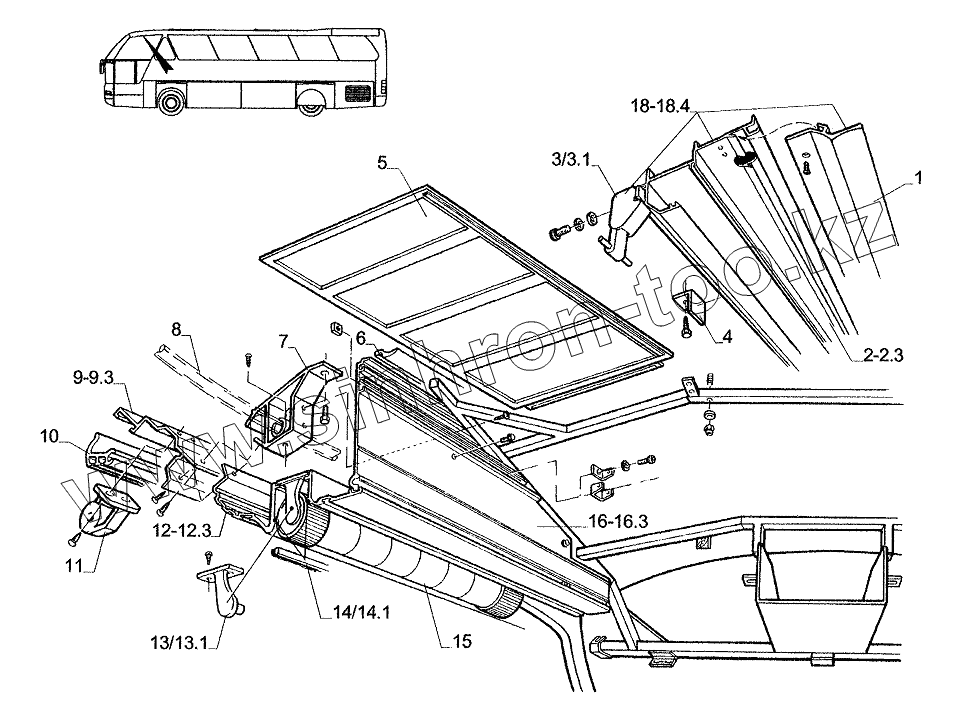

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. STRIP INSIDE-AIR PASSAGE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
2.1
22
2.3
3
3.1
4
5
6
7
8
9
9.1
9.2
9.3
10
11
12
12.1
12.2
12.3
13
13.1
14
14.1
15
16
16.1
16.2
16.3
18
18.1
18.2
18.4
Позиция на иллюстрации Заводской номер детали Название детали
1 COVERSTRIP COVER STRIP
2 LIGHTCHANNELTREADFRONTLEFT LIGHT CHANNEL TREAD FRONT LEFT
2.1 LIGHTCHANNELTREADBACKLEFT LIGHT CHANNEL TREAD BACK LEFT
22 LIGHTCHANNELTREADFRONTRIGHT LIGHT CHANNEL TREAD FRONT RIGHT
2.3 LIGHTCHANNELTREADBACKRIGHT LIGHT CHANNEL TREAD BACK RIGHT
3 STRIKER STRIKER
3.1 STRIKERONAIRCONDITIONER STRIKER ON AIR CONDITIONER
4 ANGLEPIECE ANGLE PIECE
5 AIRCHANNELCOVERING AIR CHANNEL COVERING
6 1901.041.10 RUBBER SECTION
7 BACKET BACKET
8 PLASTICTUBE PLASTIC TUBE
9 ROLLERBLINDTREADFRONTLEFT ROLLER BLIND TREAD FRONT LEFT
9.1 ROLLERBLINDTREADBACKLEFT ROLLER BLIND TREAD BACK LEFT
9.2 ROLLERBLINDTREADFRONTRIGHT ROLLER BLIND TREAD FRONT RIGHT
9.3 ROLLERBUNDTREADBACKRIGHT ROLLER BUND TREAD BACK RIGHT
10 2512.222.00 RAIL CURTAIN
11 HOLDERFORROLLERBUND HOLDER FOR ROLLER BUND
12 AIRCYLINDERTREADFRONTLEFT AIR CYLINDER TREAD FRONT LEFT
12.1 AIRCYLINDERTREADBACKLEFT AIR CYLINDER TREAD BACK LEFT
12.2 AIRCYLINDERTREADFRONTRIGHT AIR CYLINDER TREAD FRONT RIGHT
12.3 AIRCYUNDERTREADBACKRIGHT AIR CYUNDER TREAD BACK RIGHT
13 CYLINDERBEARINGSINGLE CYLINDER BEARING SINGLE
13.1 CYLINDERBEARINGDOUBLE CYLINDER BEARING DOUBLE
14 BRUSHSHORT BRUSH SHORT
14.1 BRUSHLONG BRUSH LONG
15 CYUNDERVENTILATOR CYUNDER VENTILATOR
16 REARWALLTREADFRONTLEFT REAR WALL TREAD FRONT LEFT
16.1 REARWALLTREADBACKLEFT REAR WALL TREAD BACK LEFT
16.2 REARWALLTREADFRONTRIGHT REAR WALL TREAD FRONT RIGHT
16.3 REARWALLTREADBACKRIGHT REAR WALL TREAD BACK RIGHT
17 2004.470.10 ROOF CHANNEL CPL. 4PIECES
17.1 2004.470.11 ROOF CHANNEL FR. LE.
17.2 2004.470.13 ROOF CHANNEL BACK LE
17.3 2004.470.12 ROOF CHANNEL FRO. Rl.
17.4 2004.470.14 ROOF CHANNEL BACK Rl.
18 1903.023.00 LIGHT CHANNEL CPL. 4PIECES
18.1 1903.023.40 LIGHT CHANNEL FR. LE.
18.2 1903.023.20 LIGHT CHANNEL BACK LE.
16.3 1903.023.30 LIGHT CHANNEL FRO. Rl.
18.4 1903.023.10 UGHT CHANNEL BACK Rl.
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
