Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. STEERING
1
2
3
3
4
4
5
5
5
6
6
6
7
7
8
9
10
11
12
13
13
14
15
16
16
16
16
16
17
17
17
17
17
18
18
18
18
18
18
18
19
19
19
19
19
19
20
20
20
20
20
20
21
22
23
24
25
26
27
28
29
30
30
30
30
30
31
31
31
31
31
32
33
34
35
36
37
38
39
39
40
40
40
40
41
42
43
44
45
46
47
48
49
50
51
52

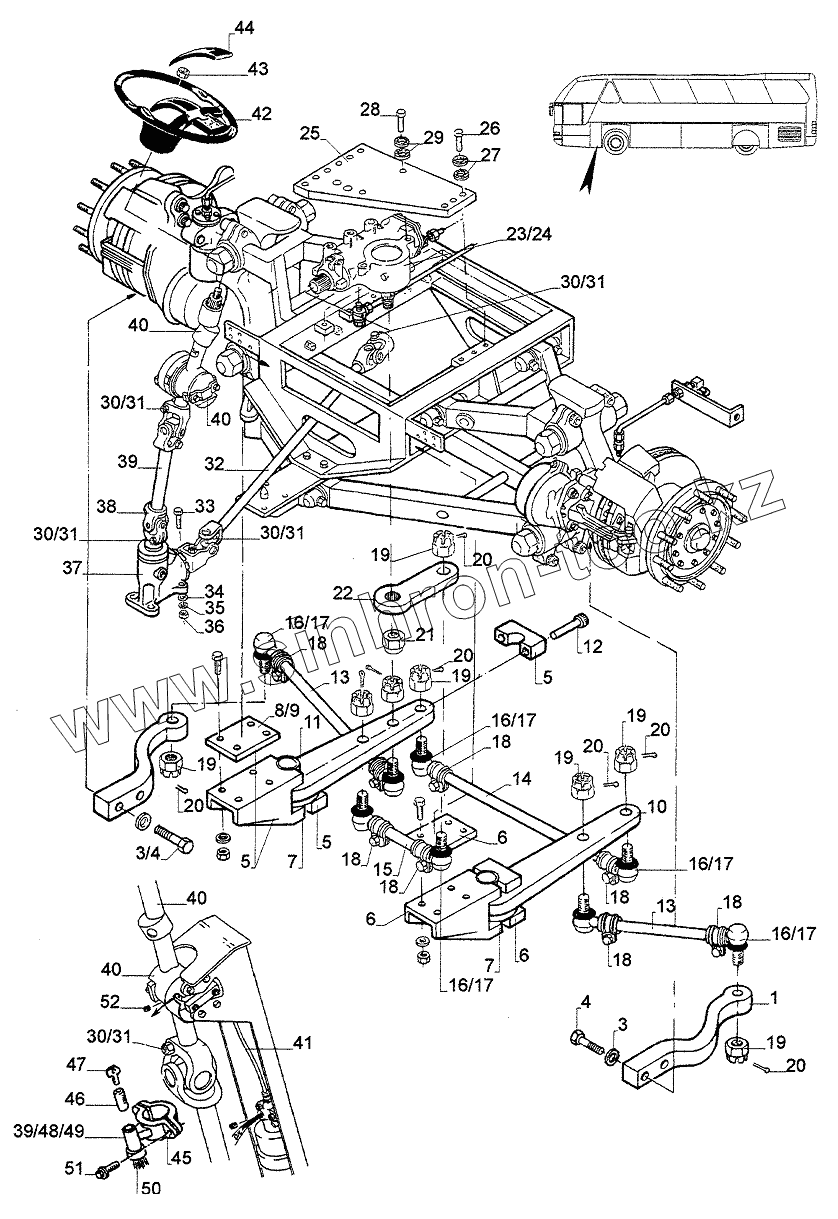

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1223.258.00 | STEERING ARM LEFT | |
| 2 | 1223.245.00 | STEERING ARM RIGHT | |
| 3 | 5009.105.00 | TAB WASHER | |
| 4 | 5070.073.10 | SCREW | |
| 5 | 1223.439.20 | BRACKET RIGHT | |
| 6 | 1223.439.40 | BRACKET LEFT | |
| 7 | RELAYLEVERBEARING | RELAY LEVER BEARING | |
| 8 | 5040.141.05 | SCREW | |
| 9 | 5095.314.06 | NUT | |
| 10 | 1223.439.10 | RЕLАY LЕVЕR | |
| 11 | 1223.439.00 | RЕLАY LЕVЕR | |
| 12 | 5035.263.05 | SCREW | |
| 13 | 1223.527.40 | TRACK ROD | |
| 14 | 1223.527.20 | TRACK ROD | |
| 15 | 1223.527.00 | TRACK ROD | |
| 16 | 1203.250.00 | TIE ROD END RIGHT | |
| 17 | 1203.252.00 | TIE ROD END LEFT | |
| 18 | 1203.252.02 | CLAMP | |
| 19 | 5065.008.00 | CRONE NUT | |
| 20 | 2604.994.43 | PIN | |
| 21 | 1221.642.10 | NUT | |
| 22 | 1223.139.00 | PITMAN ARM | |
| 23 | 1221.042.00 | STEERING GEAR | |
| 24 | 1221.044.00 | STEERING GEAR | |
| 25 | 0826.031.50 | STEARING GEAR PLATE | |
| 26 | 5080.033.55 | SCREW | |
| 27 | 5009.103.00 | TAB WASHER | |
| 28 | 5061.000.10 | SCREW | |
| 29 | 5009.103.10 | TAB WASHER | |
| 30 | 1201.100.50 | SCREW | |
| 31 | 1201.100.29 | NUT | |
| 32 | 1223.704.00 | STEERING SHAFT | |
| 33 | 5050.135.01 | SCREW | |
| 34 | 5010.007.01 | MEDIUM WASHER | |
| 35 | 5020.013.01 | SPRING RING | |
| 36 | 5060.007.01 | NUT | |
| 37 | 1221.221.00 | ANGLE DRIVE COLUMN | |
| 38 | 1221.217.20 | CROSS JOINT | |
| 39 | 1221.217.00 | STEERING SPINDLE | |
| 40 | 1221.216.00 | STEERING COLUMN | |
| 41 | 1221.216.83 | PLUG CONNECTION | |
| 42 | 1203.135.01 | STEERING WHEEL | |
| 43 | 1203.161.00 | STEERING COLUMN | |
| 44 | 1203.137.00 | COVERING | |
| 45 | 1203.118.51 | СLАМР F. SТЕАRING LОСК | |
| 46 | 1203.118.52 | LOCK KEY WITH KEY | |
| 47 | 1203.118.60 | IGNIТIОN КЕY | |
| 48 | 1203.118.50 | STEERING LOCK | |
| 49 | 1203.118.53 | IGNITION SWITCH | |
| 50 | 1203.118.61 | STEERING LOCK | |
| 51 | 1203.118.54 | SCREW | |
| 52 | 1203.118.63 | THREADED PIN |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
