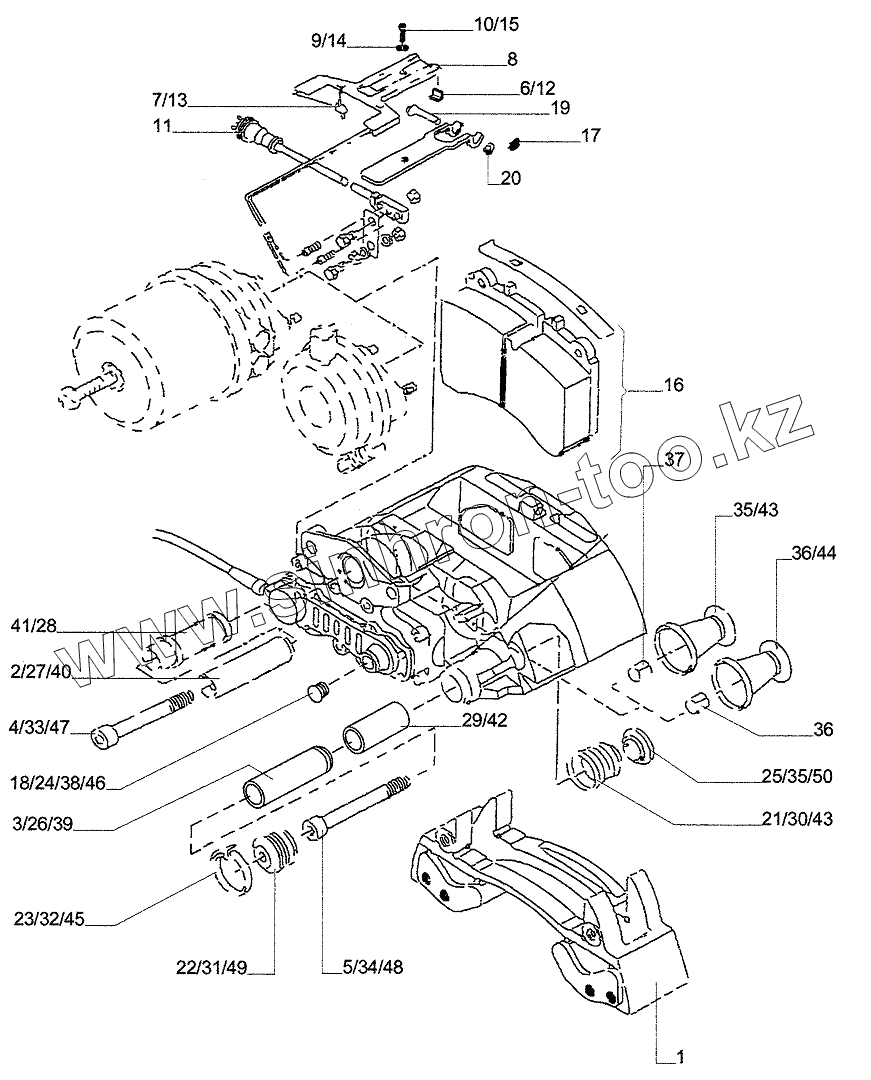

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. REAR AXLE DISK BRAKE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
38
39
40
42
43
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
0721.384.00 0721.384.00 BRAKE UNING KIT CPL.
WEARSENORCPL.FIG.NO.1010-1040 WEARSENORCPL.FIG.NO.1010-1040 WEAR SENOR CPL. FIG.NO.1010-1040
0821552.00 0821552.00 WEARSENSOR CPL. FIG.NO.950-1000
1 BRAKEANCHORPLATE BRAKE ANCHOR PLATE
2 GUIDEBUSH GUIDE BUSH
3 GUIDEBUSH GUIDE BUSH
4 WASHER washer
5 WASHER washer
6 WEARSENSOR WEARSENSOR
7 WEARSENSOR WEARSENSOR
8 CABLEDUCD CABLE DUCD
9 SPRINGWASHER SPRING WASHER
10 WASHER washer
11 BRAKEWEARINDICAT. BRAKE WEAR INDICAT.
12 WEARSENSOR WEARSENSOR
13 WEARSENSOR WEARSENSOR
14 SPRINGWASHER SPRING WASHER
15 WASHER washer
16 BRAKELINING BRAKE LINING
17 SPRINGCOTTERPIN SPRING COTTER PIN
18 CAP CAP
19 PIN PIN
20 WASHERSEALINGKIT WASHER SEALING KIT CPL.
21 BELLOWS BELLOWS
22 BELLOWSCAP BELLOWS CAP
23 SHEETCLAMP SHEET CLAMP
24 CAP CAP
25 BELLOWSGUIDESET BELLOWS GUIDE SET CPL. FK3.NO.1150-1240
26 GUIDEBUSH GUIDE BUSH
27 GUIDEBUSH GUIDE BUSH
28 GUIDEBUSH GUIDE BUSH
29 BUSH BUSH
30 BELLOWS BELLOWS
31 BELLOWSCAP BELLOWS CAP
31 GUIDESLEEVE GUIDE SLEEVE
32 SHEETCLAMP SHEET CLAMP
33 WASHER washer
34 WASHER washer
35 BELLOWSPRESSUREPIECE BELLOWS PRESSURE PIECE CPL. FIG.NO.1250-1260
36 PRESSUREPIECE PRESSURE PIECE
37 DRYBUSHINGCA DRY BUSHING CAP CPL. FIG.NO.1270
38 CAPCALIPER CAP CALIPER CPL.R.H. CALIPER CPL.L.H FIG.NO.1280-1390
39 GUIDEBUSH GUIDE BUSH
40 GUIDEBUSH GUIDE BUSH
42 BUSH BUSH
43 BELLOWS BELLOWS
44 PRESSUREPIECE PRESSURE PIECE
45 SHEETCLAMP SHEET CLAMP
46 CAP CAP
47 WASHER washer
48 WASHER washer
49 BELLOWSCAP BELLOWS CAP
50 BELLOWS BELLOWS
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
