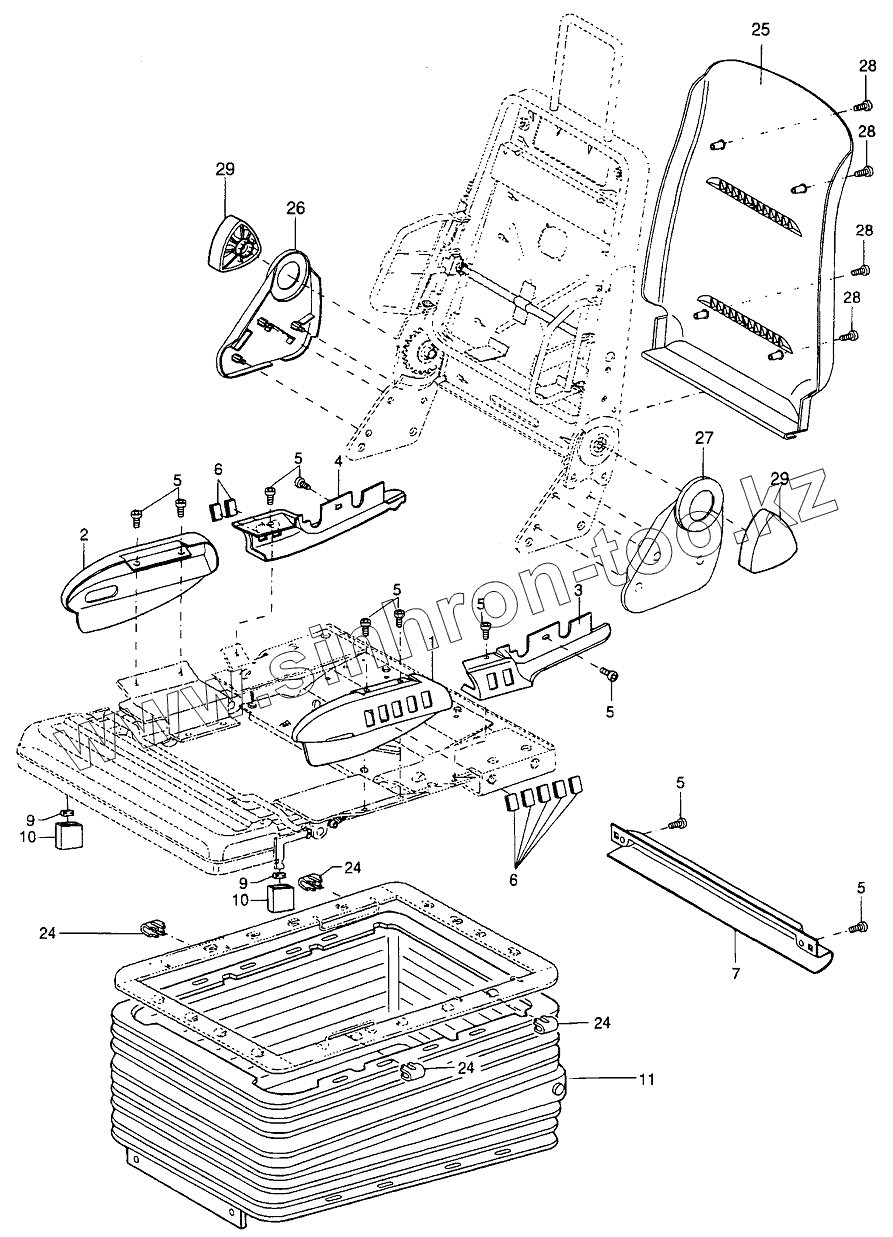

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. DRIVER SEAT RECARO

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
5
5
5
5
5
5
5
5
6
6
6
7
9
9
10
10
11
11
24
24
24
24
25
26
27
28
28
28
28
29
29
Позиция на иллюстрации Заводской номер детали Название детали
COVERBACKRESTSIDEPOLSTER COVERBACKRESTSIDEPOLSTER COVER BACKREST SIDE POLSTER
COVERBACKRESTSIDEPOLSTER COVERBACKRESTSIDEPOLSTER COVER BACKREST SIDE POLSTER
368238 368238 REPAIR KIT FRONT COVERS BACKREST
367963.006 367963.006 BACKREST CENTER SECTION COMPL.
368239 368239 REPAIR KIT PLASTIC COVERS BACKREST
368240 368240 REPAIR KIT COVER RIGHT, WHEN SWITCHES LH
1 368859 REPAIR KIT COVER LEFT, WHEN SWITCHES LH
2 FRONTCOVER,RIGHT FRONT COVER, RIGHT
3 BACKCOVER,LEFT BACK COVER, LEFT
4 BACKCOVER,RIGHT BACK COVER, RIGHT
5 WASHER washer
5 WASHER washer
6 COVERPLATESWITCH COVER PLATE SWITCH
6 COVERPLATESWITCH COVER PLATE SWITCH
7 364105 CABLE HOUSING REAR
9 CLIP CLIP
10 RELEASELEVER-RAKEADJ. RELEASE LEVER - RAKE ADJ.
11 306536 PROTECTIVE BELLOW FOR HEIGHT ADJUSTMENT
11 334630 PROTECTIVE BELLOW FOR HEIGHT ADJUSTMENT AND SUSPENSION
24 365068 PLASTIC CLIP-BELLOW
25 PLASTICCOVER,BACKREST PLASTIC COVER, BACKREST
26 COVER,LEFT COVER, LEFT
27 COVER,RIGHT COVER, RIGHT
28 SCREWSEATBASE SCREW SEAT BASE
29 365615 HANDWHEEL FOR BACKREST MANUAL
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
