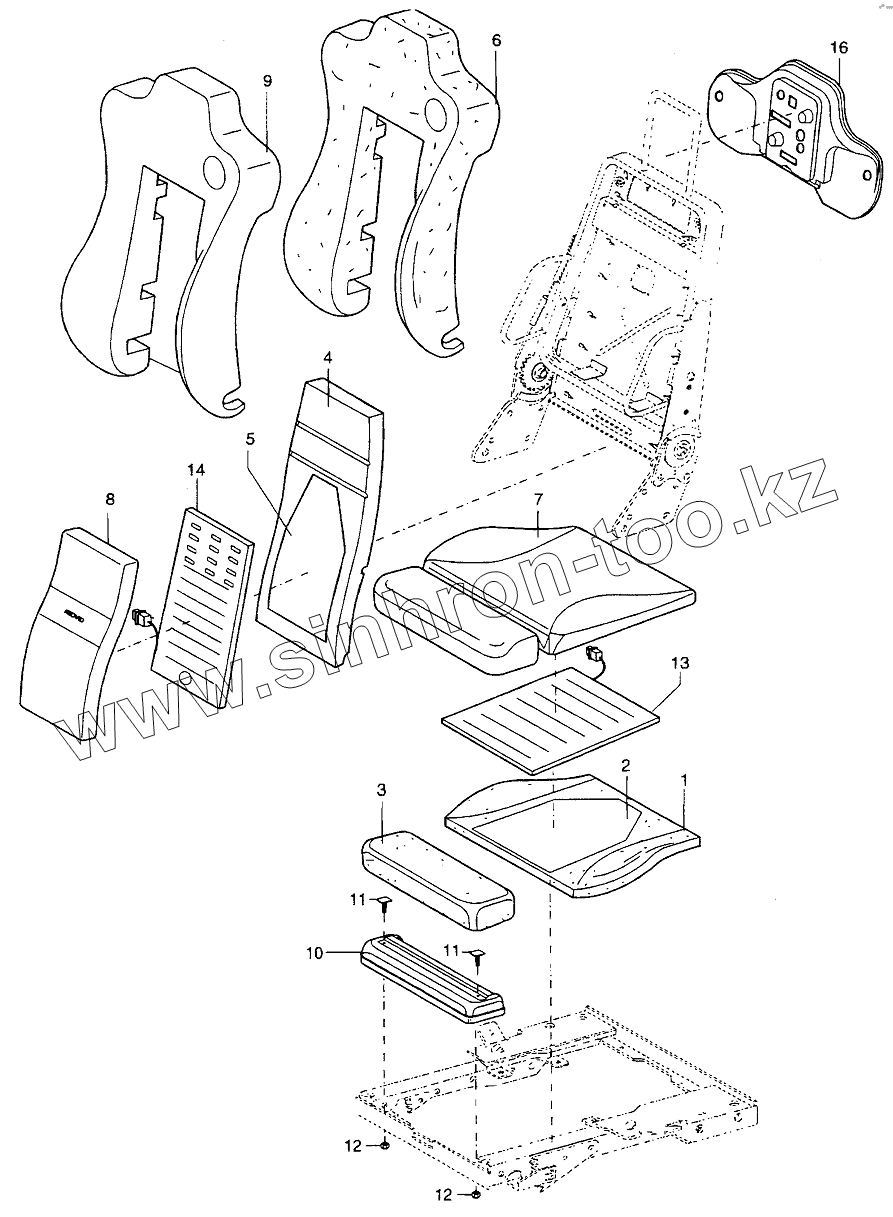

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. DRIVER SEAT RECARO

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
9
10
11
11
12
12
13
13
14
14
16
Позиция на иллюстрации Заводской номер детали Название детали
365052.007 365052.007 WITHOUT VENT AND HEATING
365052.006 365052.006 SEAT CUSHION COMPL.
365054.006 365054.006 SEAT CUSHION COMPL.
365054.007 365054.007 WITH VENT AND HEATING 12V
365053.007 365053.007 WITH VENT AND HEATING 24V
1 FOAMSEATCUSHION FOAM SEAT CUSHION
2 CUTOFFOAMPART CUT OF FOAM PART
3 FOAMTHIGHEXTENSION FOAM THIGH EXTENSION
4 FOAM BACKREST CENTR SECTION FOAM BACKREST CENTR SECTION
5 CUTOFAIRDUCTLAYER CUT OF AIR DUCT LAYER
6 4/564467 COVER BACKREST SIDE POLSTER FOAM PART LH/RH
7 FOAMSEATCUSHION FOAM SEAT CUSHION
8 FOAM BACKREST SECTION FOAM BACKREST SECTION
9 566252.006 COVER FOR RNA
9 466252.007 WHEN RETRACTOR LH
9 466252.006 COVER FOR RN+RNA+RNC
10 FRAMETHIGHEXTENSION FRAME THIGH EXTENSION
11 WASHERCOMPL. WASHER COMPL.
12 NUT NUT
13 HEATINGELEMENTCUSHION HEATING ELEMENT CUSHION
13 HEATINGELEMENTCUSHION HEATING ELEMENT CUSHION
14 HEATING ELEMENT BACKREST, 24V HEATING ELEMENT BACKREST, 24V
14 HEATING ELEMENT BACKREST, 12V HEATING ELEMENT BACKREST, 12V
16 467208 STYROFOAM HEADREST
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
