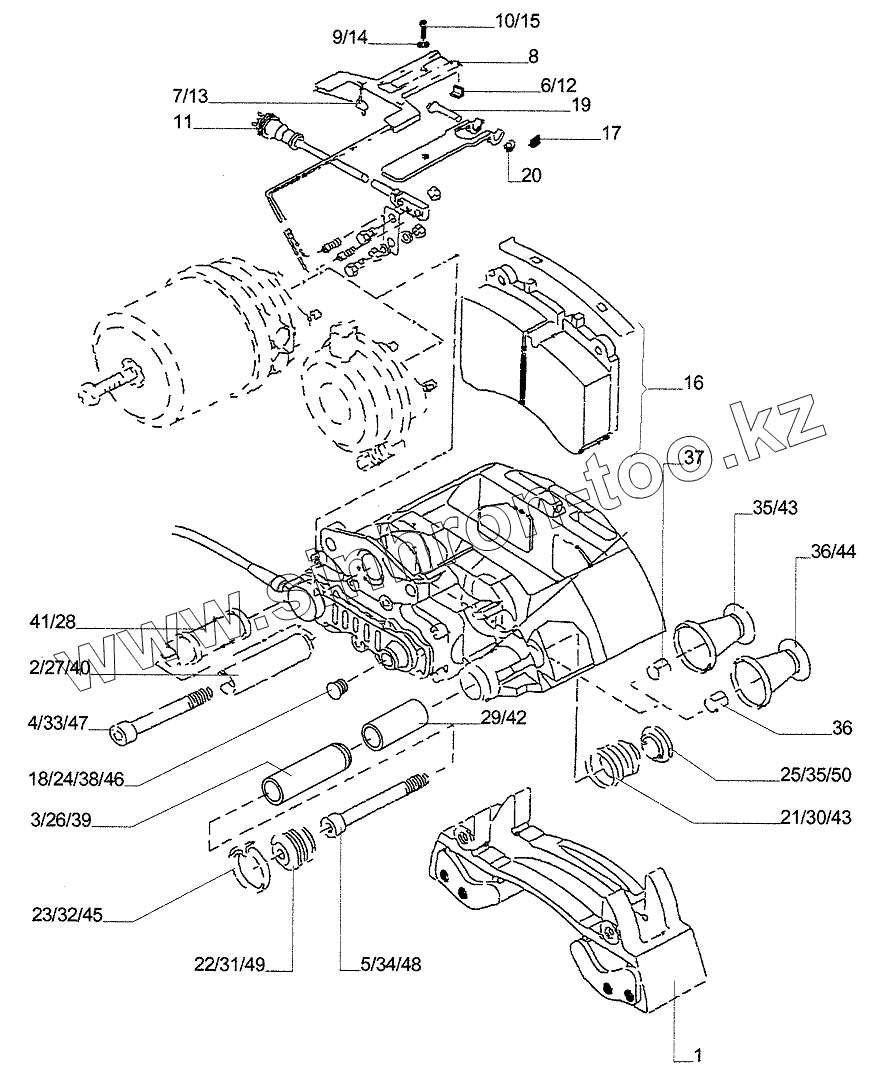

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. DISK BRAKE CASTER AXLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
35
36
36
37
38
39
40
41
42
43
43
44
45
46
47
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 0721.384.00 | 0721.384.00 | BRAKE UNING KIT CPL. | |
| PRESSUREPIECECPL. | PRESSUREPIECECPL. | PRESSURE PIECE CPL. | |
| CAPCPL. | CAPCPL. | CAP CPL. | |
| CALIPERCPL.R.H. | CALIPERCPL.R.H. | CALIPER CPL.R.H. | |
| CALIPERCPL.L.H | CALIPERCPL.L.H | CALIPER CPL. L.H | |
| GUIDESETCPL. | GUIDESETCPL. | GUIDE SET CPL. | |
| WEARSENORCPL. | WEARSENORCPL. | WEAR SENOR CPL. | |
| 0821.352.00 | 0821.352.00 | WEARSENSOR CPL | |
| 1 | BRAKEANCHORPLATE | BRAKE ANCHOR PLATE | |
| 2 | GUIDEBUSH | GUIDE BUSH | |
| 3 | GUIDEBUSH | GUIDE BUSH | |
| 4 | WASHER | washer | |
| 5 | WASHER | washer | |
| 6 | WEARSENSOR | WEARSENSOR | |
| 7 | WEARSENSOR | WEARSENSOR | |
| 8 | CABLEDUCD | CABLE DUCD | |
| 9 | SPRINGWASHER | SPRING WASHER | |
| 10 | WASHER | washer | |
| 11 | BRAKEWEARINDICAT. | BRAKE WEAR INDICAT. | |
| 12 | WEARSENSOR | WEARSENSOR | |
| 13 | WEARSENSOR | WEARSENSOR | |
| 14 | SPRINGWASHER | SPRING WASHER | |
| 15 | WASHER | washer | |
| 16 | BRAKELINING | BRAKE LINING | |
| 17 | SPRINGCOTTERPIN | SPRING COTTER PIN | |
| 18 | CAP | CAP | |
| 19 | PIN | PIN | |
| 20 | WASHERSEALING | WASHER SEALING KIT CPL. | |
| 21 | BELLOWS | BELLOWS | |
| 22 | BELLOWSCAP | BELLOWS CAP | |
| 23 | SHEETCLAMP | SHEET CLAMP | |
| 24 | CAP | CAP | |
| 25 | BELLOWS | BELLOWS | |
| 26 | GUIDEBUSH | GUIDE BUSH | |
| 27 | GUIDEBUSH | GUIDE BUSH | |
| 28 | GUIDEBUSH | GUIDE BUSH | |
| 29 | BUSH | BUSH | |
| 30 | BELLOWS | BELLOWS | |
| 31 | BELLOWSCAP | BELLOWS CAP | |
| 32 | SHEETCLAMP | SHEET CLAMP | |
| 33 | WASHER | washer | |
| 34 | WASHER | washer | |
| 35 | BELLOWS | BELLOWS | |
| 36 | PRESSUREPIECE | PRESSURE PIECE | |
| 37 | DRYBUSHING | DRY BUSHING | |
| 38 | CAP | CAP | |
| 39 | GUIDEBUSH | GUIDE BUSH | |
| 40 | GUIDEBUSH | GUIDE BUSH | |
| 41 | GUIDESLEEVE | GUIDE SLEEVE | |
| 42 | BUSH | BUSH | |
| 43 | BELLOWS | BELLOWS | |
| 44 | PRESSUREPIECE | PRESSURE PIECE | |
| 45 | SHEETCLAMP | SHEET CLAMP | |
| 46 | CAP | CAP | |
| 47 | WASHER | washer | |
| 48 | WASHER | washer | |
| 49 | BELLOWSCAP | BELLOWS CAP | |
| 50 | BELLOWS | BELLOWS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
