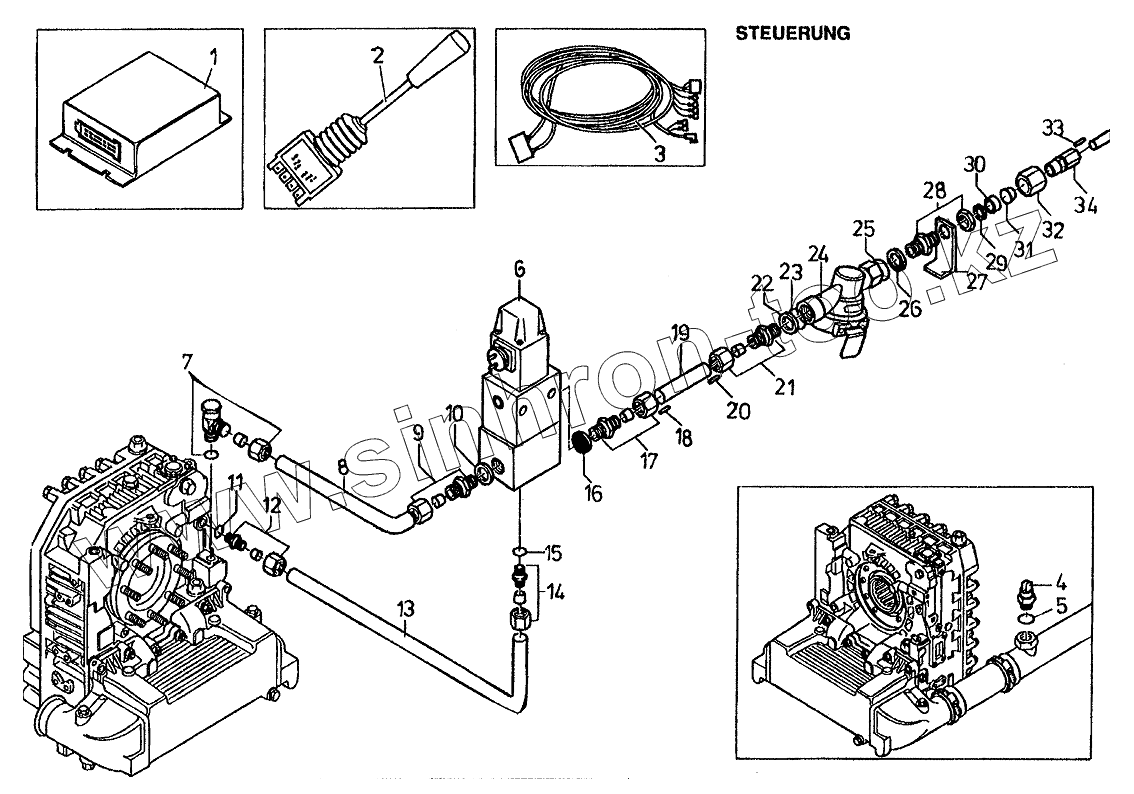

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. CONTROL

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
Позиция на иллюстрации Заводской номер детали Название детали
RING RING RING
0528.636.01 0528.636.01 SEALING RING
RING RING RING
UNIONNUT UNIONNUT UNION NUT
RING RING RING
RING RING RING
UNIONNUT UNIONNUT UNION NUT
RING RING RING
RING RING RING
UNIONNUT UNIONNUT UNION NUT
0528.639.00 0528.639.00 FLANGE
SLEEVE SLEEVE SLEEVE
0528.633.00 0528.633.00 O-RING
0528.640.30 0528.640.30 THRUST RING
LINEFILTERCOMPLETE LINEFILTERCOMPLETE LINE FILTER COMPLETE
FILTERINSERT FILTERINSERT FILTER INSERT
SEALINGRING SEALINGRING SEALING RING
screw screw screw
SEALINGRING SEALINGRING SEALING RING
0528.400.04 0528.400.04 HEXAGON NUT
0528.608.00 0528.608.00 FLANGE-COVER
0821.331.30 0821.331.30 CIRCLIP
0528.412.00 0528.412.00 O-RING
0528.411.00 0528.411.00 CIRCUP
0528.442.00 0528.442.00 HAND SWITCH
0528.629.00 0528.629.00 SCREWING
0528.408.00 0528.408.00 HEXAGON SCREW
0528.407.00 0528.407.00 WASHER
0528.436.00 0528.436.00 COMPENSATING WASHER
0528.010.00 0528.010.00 BOLT
0528.632.00 0528.632.00 SEALING RING
STICKER STICKER STICKER
0528.438.00 0528.438.00 RING
0528.009.00 0528.009.00 RETARDER
1 0528.437.00 CONTROL UNIT
2 0528.442.00 HAND SWITCH
3 0528.430.00 CABLE HARNESS
4 0508.403.00 TEMPERATURE PICKUP
5 0508.203.00 GASKET RING
6 0528.431.00 VALVE
7 0528.636.00 SCREWING
8 HOSELINE HOSE LINE
9 0528.630.00 SCREWING
10 0528.640.00 SEALING RING
11 0528.640.00 SEALING RING
12 0528.630.00 SCREWING
13 HOSELINE HOSE LINE
14 0528.630.00 SCREWING
15 0528.640.00 SEALING RING
16 0508.203.00 GASKET RING
17 0528.640.10 SCREWING
18 SLEEVE SLEEVE
19 PIPE BRASS PIPE
20 SLEEVE SLEEVE
21 SCREWING SCREWING
22 0528.640.30 THRUST RING
23 SEALINGRING SEALING RING
24 UNEFILTER UNE FILTER
25 SEALINGRING SEALING RING
26 0528.640.30 THRUST RING
27 ATT.FORPIPEFILTER ATT. FOR PIPE FILTER
28 BULKHEADSCREWING BULKHEAD SCREWING
29 screw screw
30 THRUSTRING THRUST RING
31 RING RING
32 UNIONNUT UNION NUT
32 UNIONNUT UNION NUT
33 SLEEVE SLEEVE
34 RESTRICTOR RESTRICTOR
142 UNIONNUT UNION NUT
212 UNIONNUT UNION NUT
