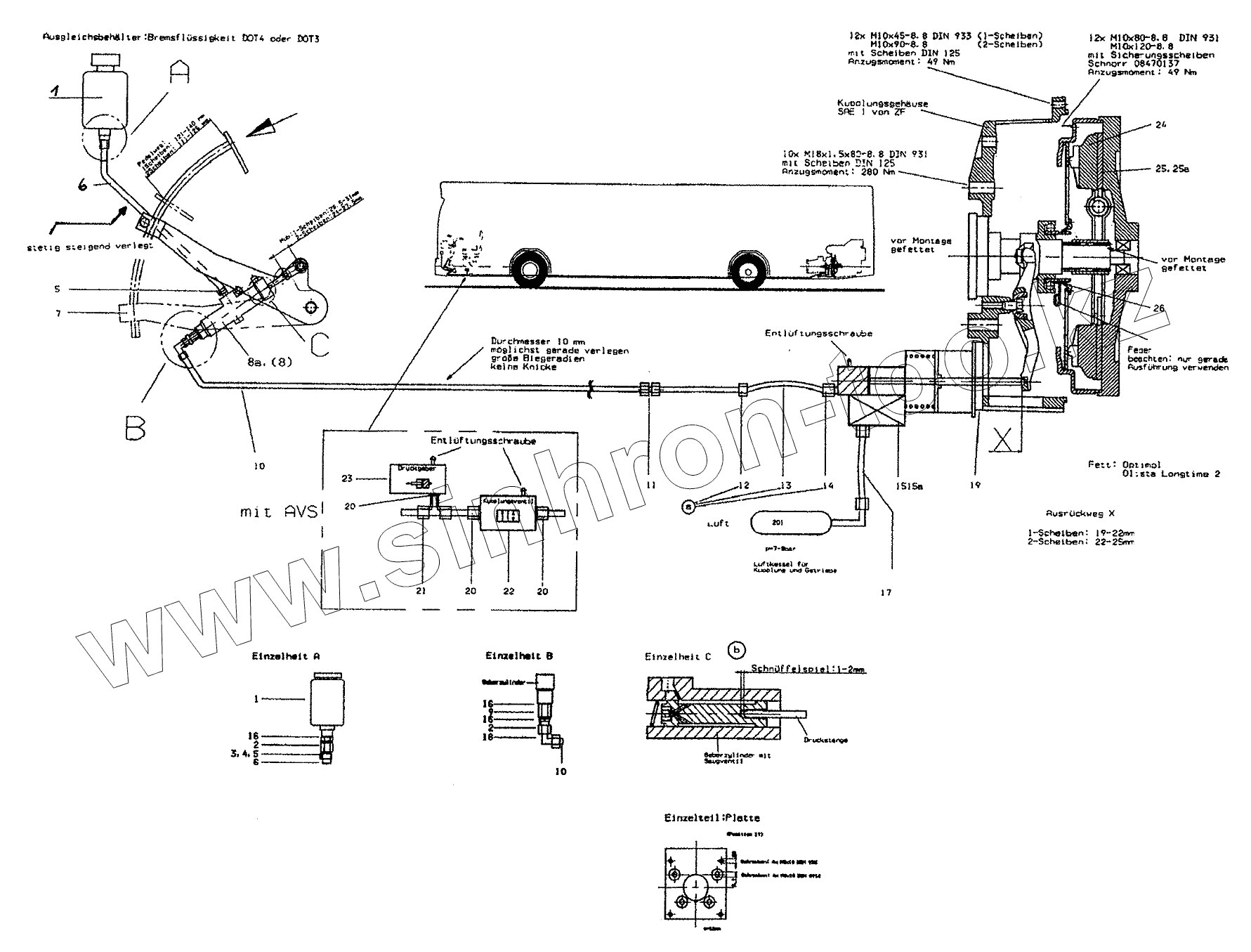

Каталог запасных частей к технике: Neoplan N 516 SHD (MB) E2. ASSEMBLY CLUTCH

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
3
4
5
5
6
6
7
8
8А
9
10
10
11
12
13
14
15
15А
16
16
16
17
18
19
20
20
20
21
22
23
24
25
25А
26
Позиция на иллюстрации Заводской номер детали Название детали
1 0403.254.00 COMPENSATING RESERVOIR W. HOLDER
2 1104.177.00 SCREW NECK
3 0110.700.07 HOSE NIPPLE
4 0110.842.00 SCREW CAP
5 1801.387.00 СLАМР
6 0402.093.00 PVCHOSE
7 0422.004.00 CLUTCH ACTUGATION
8 0403.103.00 CLUTCH TRANSMITTER CYLINDER
8А 0423.102.00 CLUTCH TRANSMITTER CYLINDER
9 1104.285.00 REDUCTION
10 1101.005.00 TUBE
11 1104.143.00 SCREWING
12 1104.388.00 FIТТING
13 0423.507.00 HYDRAULIC HOSE
14 1104.257.00 SCREWING
15 0423.211.00 CLUTCH CYLINDER
15А 0423.207.00 OUTPUT CYLINDER
16 1104.690.02 COPPER RING
17 0110.761.00 HOSE
18 1104.387.00 АNGLЕ SСRЕWING
19 0521.162.00 PLATE
20 1104.257.00 SCREWING
21 1104.358.00 МАLЕ SТUТ RUN ТЕЕ
22 0521.066.00 CLUTCH VALVE
23 0521.063.00 PRESSURE SENSOR
24 0421.019.00 PRESSURE PLATE
24.1 0421.019.00 PRESSURE PLATE
24.2 0421.019.00 PRESSURE PLATE
24.3 0421.018.00 PRESSURE PLATE
24.4 0421.016.00 PRESSURE PLATE
25 0421.327.10 DRIVING DISC
25А 0421.327.10 DRIVING DISC
25.1 0421.327.00 DRIVING DISC
25.2 0421.324.00 DRIVING DISC
25.3 0421.324.00 DRIVING DISC
25.4 0421.342.00 DRIVING DISC
26 0421.510.00 RELEASE BEARING
26.1 0421.510.00 RELEASE BEARING
26.2 0421.510.00 RELEASE BEARING
26.3 0421.510.00 RELEASE BEARING
26.4 0421.510.00 RELEASE BEARING
