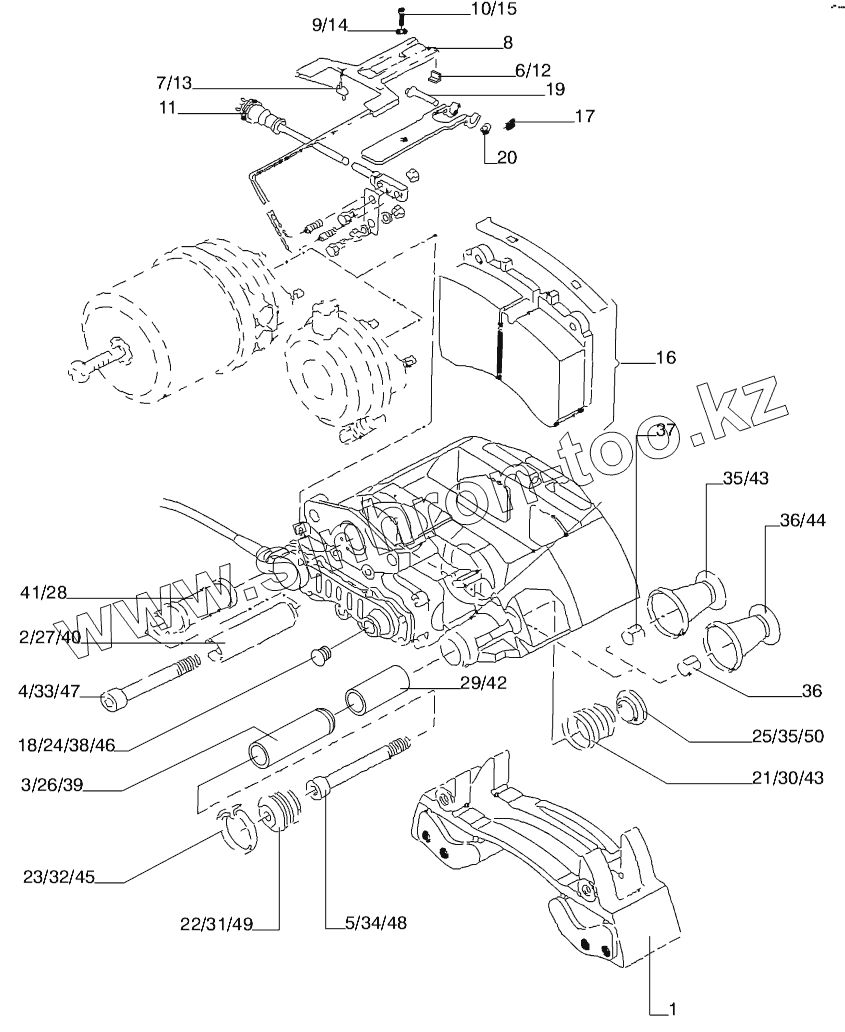

Каталог запасных частей к технике: Neoplan N 516 SHD (MB, DC) E2. REAR AXLE DISK BRAKE

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
11
12
13
14
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
32
33
33
34
34
35
35
35
36
36
36
37
37
38
38
39
39
40
40
42
43
43
44
45
46
47
48
49
50
Позиция на иллюстрации Заводской номер детали Название детали
caliperl.h caliperl.h caliper cpl.l.h
11014051 11014051 PRESSURE PIECE CPL.
caliperr.h. caliperr.h. caliper cpl.r.h.
11015471 11015471 WEARSENSOR CPL
CAP CAP CAP
11014055 11014055 SEALING KIT CPL.
11014060 11014060 CAP CPL.
pressure piece pressure piece pressure piece
11014053 11014053 CALIPER CPL.R.H.
11014054 11014054 CALIPER CPL.L.H
11015472 11015472 WEAR SENOR CPL.
11014055 11014055 SEALING KIT CPL.
1 brake anchor plate brake anchor plate
2 guide bush guide bush
3 guide bush guide bush
4 capscrew capscrew
5 capscrew capscrew
6 wear sensor wear sensor
7 wear sensor wear sensor
8 cable ducd cable ducd
9 spring washer spring washer
10 hexagon screw hexagon screw
11 brake wear indicat. brake wear indicat.
12 wearsensor wearsensor
13 wear sensor wear sensor
14 spring washer spring washer
15 11015470 BRAKE LINING KIT CPL.
16 brake lining brake lining
17 spring cotter pin spring cotter pin
18 CAP CAP
19 pin pin
20 washer washer
21 bellows bellows
22 bellows cap bellows cap
23 sheet clamp sheet clamp
24 CAP CAP
25 bellows bellows
26 guide bush guide bush
27 guide bush guide bush
28 guide bush guide bush
29 bush bush
30 bellows bellows
31 bellows cap bellows cap
31 guide sleeve guide sleeve
31 guide sleeve guide sleeve
32 sheet clamp sheet clamp
32 sheet clamp sheet clamp
33 cap screw cap screw
33 cap screw cap screw
34 cap screw cap screw
34 cap screw cap screw
35 bellows bellows
35 bellows bellows
36 pressure piece pressure piece
36 pressure piece pressure piece
37 dry bushing dry bushing
37 dry bushing dry bushing
38 CAP CAP
38 CAP CAP
39 guide bush guide bush
39 guide bush guide bush
40 guide bush guide bush
40 guide bush guide bush
42 bush bush
43 bellows bellows
44 pressure piece pressure piece
45 sheet clamp sheet clamp
46 CAP CAP
47 capscrew capscrew
48 capscrew capscrew
49 bellows cap bellows cap
50 bellows bellows
