Каталог запасных частей к технике: Neoplan N 516 SHD (MB, DC) E2. FLAPS

Тип техники

Марка

Модель

Схема

1

2

3.1

3.2

3.3

4.1

4.2

4.3

5.1

5.2

6.1

6.2

6.3

6.4

6.5

7.1

7.2

7.3

7.4

7.5

7.6

8.1

8.2

9.1

9.2

10

11.1

11.2

12.1

12.2

12.3

13.1

13.2

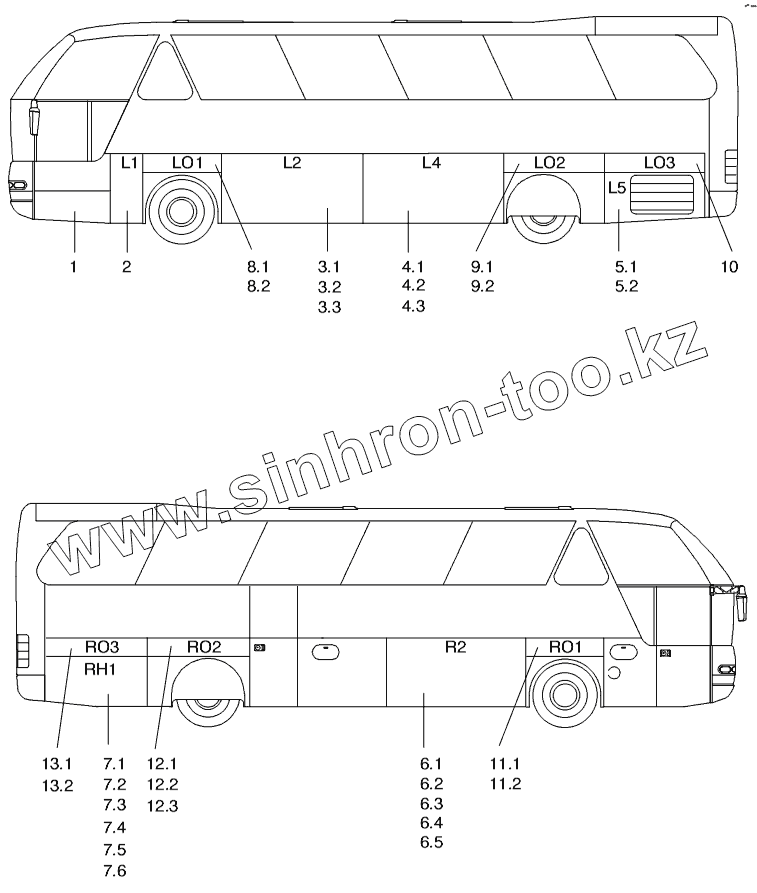

Позиция на иллюстрации	Заводской номер детали		Название детали
1	11045223		FLAP CASE SWIVEL BAR
2	11060053		SERVICE FLAP
3.1	11060777		LUGGAGE COMPARTMENT LID L2
3.2	11060119		LUGGAGE COMPARTMENT LID L2
3.3	11044691		LUGGAGE COMPARTMENT LID L2
4.1	11060452		LUGGAGE COMPARTMENT LID L4
4.2	11060778		LUGGAGE COMPARTMENT LID L4
4.3	11060057		LUGGAGE COMPARTMENT LID
5.1	11045299		LUGGAGE FLAP L5
5.2	11045298		LUGGAGE FLAP L5
6.1	11060781		LUGGAGE COMPARTMENT LID R2
6.2	11061660		LUGGAGE COMPARTMENT LID R2
6.3	11060057		LUGGAGE COMPARTMENT LID
6.4	11061188		LUGGAGE COMPARTMENT LID R2
6.5	11044700		LUGGAGE COMPARTMENT LID R2
7.1	11045301		CASE COVER RH1
7.2	11045300		LUGGAGE FLAP RH1
7.3	11045317		LUGGAGE FLAP RH1
7.4	11045302		LUGGAGE FLAP RH1
7.5	11044797		CASE COVER RH1
7.6	11044794		CASE COVER RH1
8.1	11060065		LUGGAGE COMPARTMENT FLAP L01
8.2	11069921		SERVICE FLAP
9.1	11060779		LUGGAGE COMPARTMENT LID
9.2	11069922		SERVICE FLAP
10	11069929		CASE COVER
11.1	11060059		CASE FLAP R01
11.2	11069925		SERVICE FLAP
12.1	11060773		LUGGAGE COMPARTMENT LID R02
12.2	11069926		LUGGAGE COMPARTMENT
12.3	11069927		LUGGAGE COMPARTMENT
13.1	11069928		CASE COVER
13.2	11069929		CASE COVER
11044800	11044800		SWING FLAP
1106333	1106333		SWING FLAP

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
