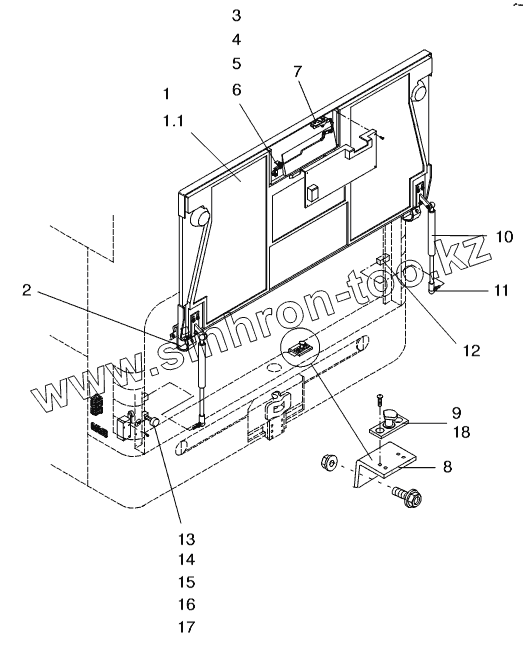

Позиция на иллюстрации
Заводской номер детали
Название детали
1
11045942
ENGINE DOOR
1.1
11045943
ENGINE DOOR
2
11023745
HINGE
3
BG 2302-01
CLOSING CYLINDER
4
11045837
LEVER
5
11045892
CLIP
6
11045836
LOCK
7
11045365
SPAGNOLET LOCK RIGHT
8
11078207
HOLDER
9
11045894
STRIKER PLATE
10
11045806
GAS-FILL.TELESC.STRUT
11
11053210
ANGLE JOINT
12
11001883
SQUARE EXTENSION
13
11055815
NUT
14
11009832
PRESSURE SCREW
15
11055511
SCREW
16
11054679
SPRING RING
17
11054594
WASHER
18
11078208
HOLDER
