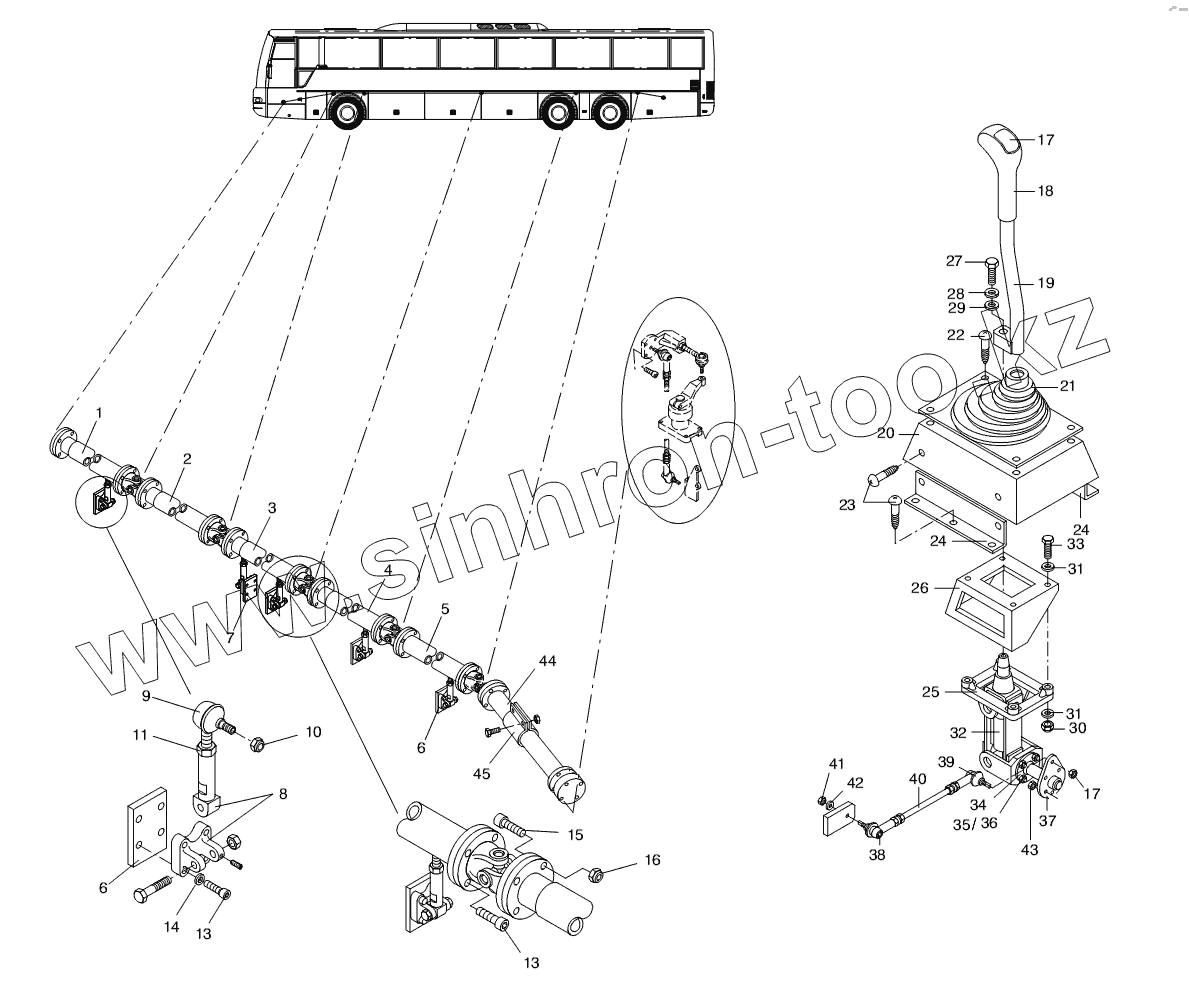

Каталог запасных частей к технике: Neoplan N 3318 U E3. SELECTOR SHAFT AND PARTS
1
2
3
4
5
6
6
7
8
9
10
11
13
13
14
15
16
17
17
18
19
20
21
22
23
24
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 11110715 | gearshift tube | |
| 2 | 11010346 | gearshift tube | |
| 3 | 11110721 | gearshift tube | |
| 4 | 11110720 | gearshift tube | |
| 5 | 11110717 | gearshift tube | |
| 6 | 11032751 | bracket | |
| 7 | 11032750 | bracket | |
| 8 | 11059541 | swinging forte bearing | |
| 9 | 11012055 | BALL-AND-SOCKET JOINT | |
| 10 | 11056445 | NUT | |
| 11 | 11055883 | NUT | |
| 13 | 11054815 | SCREW | |
| 14 | 11055815 | NUT | |
| 15 | 11054811 | screw | |
| 16 | 11056443 | NUT | |
| 17 | 11011390 | cover 6s-160 | |
| 18 | 11010547 | GEARSHIFT KNOB | |
| 19 | 11010572 | GEARSHIFT LEAVER | |
| 20 | 11010569 | COVER | |
| 21 | 11010481 | BELLOWS | |
| 22 | 11056954 | SCREW | |
| 23 | screw | screw | |
| 24 | angle | angle | |
| 25 | 11023102 | consumption | |
| 26 | 11070060 | bracket | |
| 27 | 11055556 | SCREW | |
| 28 | 11054681 | SPRING RING | |
| 29 | 11057127 | DISC | |
| 30 | 11056445 | NUT | |
| 31 | 11054600 | WASHER | |
| 32 | 14003433 | gearshift gate | |
| 33 | 11055575 | HEXAGON SCREW М8.8 | |
| 34 | 11012075 | FLANGE | |
| 35 | 11055517 | SCREW | |
| 36 | 11056443 | NUT | |
| 37 | 11012075 | FLANGE | |
| 38 | 11010216 | BALL-AND-SOCKET JOINT | |
| 39 | 11010219 | BALL-AND-SOCKET JOINT | |
| 40 | 11010238 | drow bar | |
| 41 | 11056445 | NUT | |
| 42 | 11054600 | WASHER | |
| 43 | 11056443 | NUT | |
| 44 | 11078770 | gearshift tube | |
| 45 | 11020281 | clamping |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
