Каталог запасных частей к технике: Neoplan N 3316 (DC OM 501 LA) E3. EXTRA SWITCH PANELS

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Golden Dragon Hyundai Ikarus Karosa King Long Neoplan Yutong ZF АМАЗ Богдан ЗИЛ КАВЗ Камский автозавод ЛАЗ ЛЗГМП ЛиАЗ Нефтекамский автозавод ПАЗ УралАЗ

Модель Не выбрано N 116 (MAN) E3 (2008) N 116 (MAN) E3 (вар.) (2008) N 116 E2 (2000) N 3316 (DC OM 501 LA) E3 (2002) N 3316 (MAN D 2866 LOH 29) E3 (2002) N 3318 U E3 (2008) N 516 SHD (MAN) E2 (2002) N 516 SHD (MAN) E3 (2008) N 516 SHD (MB) E2 (2000) N 516 SHD (MB) E3 (2000) N 516 SHD (MB, DC) E2 (2002)

Схема > Не выбрано ENGINE GENERAL ENGINE PARTS ENGINE PARTS FLAME STARTING SYSTEM ENGINE SUSPENSION ENGINE SUSPENSION ALTERNATOR BRACKET ALTERNATOR ALTERNATOR ALTERNATOR STARTER MOTOR COMPRESSOR COMPRESSOR COMPRESSOR COMPRESSOR POWER - STEERING PUMP V - BELT DRIVE CONTROL UNIT ACCELERATOR ENGINE BRAKE FUEL FILTER FUEL FILTER FUEL TANK FUEL TANK FUEL TANK FUEL TANK RESERVE TANK FUEL SYSTEM EXHAUST SYSTEM EXHAUST SYSTEM AIR FILTER SYSTEM COOLER COOLER COOLER COOLER COOLER COOLER COOLER WATER RESERVOIR WATER CIRCULATION WATER PIPING CHARGE - AIR CIRCULATION CHARGE - AIR CIRCULATION RETARDER COOLING RETARDER COOLING RETARDER COOLING CLUTCH PEDAL CLUTCH PEDAL ASSEMBLY CLUTCH GEARBOX GEARBOX PARTS GEARBOX PARTS SELECTOR SHAFT AND PARTS SELECTOR SHAFT AND PARTS SELECTOR SHAFT AND PARTS TACHO DRIVE RETARDER - TELMA RETARDER - TELMA RETARDER - VOITH GEARBOX CARRIER/MOUNTING GEARBOX CARRIER/MOUNTING GEARBOX CARRIER/MOUNTING GEARBOX CARRIER/MOUNTING DRIVE SHAFT REAR AXLE REAR AXLE PARTS REAR AXLE PARTS REAR AXLE PARTS CASING REAR AXLE PARTS REAR AXLE DISK BRAKE REAR AXLE DISK BRAKE REAR AXLE SUBFRAME REAR AXLE SUBFRAME REAR AXLE SUBFRAME FRONT AXLE FRONT AXLE FRONT AXLE PARTS FRONT AXLE PARTS DISK BRAKE FRONT AXLE DISK BRAKE FRONT AXLE STABILIZER TRAILING AXLE AIR BAGS AND AIR SPRING DISK AIR BAGS AND AIR SPRING DISK AIR BAGS AND AIR SPRING DISK AIR BAGS AND AIR SPRING DISK SHOCK ABSORBER AND MOUNT SHOCK ABSORBER AND MOUNT SHOCK ABSORBER AND MOUNT AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR SUSPENSION AIR DRYER BRAKE SYSTEM BRAKE SYSTEM TEST CONNECTION TEST CONNECTION BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM BRAKE SYSTEM RUNNING BRAKE RUNNING BRAKE RUNNING BRAKE RUNNING BRAKE RUNNING BRAKE RUNNING BRAKE RUNNING BRAKE BRAKE VALVE AIR DRYER PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK PLACEMENT FOR AIR TANK STEERING HYDRAULICS STEARING WHEEL AND COVERING STEARING WHEEL AND COVERING STEERING MECHANICS FRONT AXLE STEERING MECHANICS FRONT AXLE STEERING MECHANICS FRONT AXLE STEERING MECHANICS FRONT AXLE STEERING MECHANICS STEERING HYDRAULICS STEERING HYDRAULICS STEERING HYDRAULICS STEERING PARTS WHEELS AND TYRES WHEELS AND TYRES WHEELS AND TYRES WHEELS AND TYRES WHEELS AND TYRES WHEELS AND TYRES WHEEL CAPS WHEEL CAPS BATTERY TRAY BACK CROSS BAR BACK CROSS BAR BACK CROSS BAR BACK CROSS BAR PROFILE PARTS ANCILLARY PART DASH BOARD DASH BOARD DRIVER’S INSTRUMENTS DRIVER’S INSTRUMENTS DRIVER’S INSTRUMENTS DASH BOARD EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS EXTRA SWITCH PANELS LIGHTING OUTSIDE LIGHTING OUTSIDE INSIDE LIGHTING INSIDE LIGHTING LIGHTING INSIDE WIPERS - WASHER SYSTEM CABLE STRINGS CABLE STRINGS COMPRESSED AIR HORN BATTERY BATTERY BATTERY BATTERY BATTERY BEHR - QUIRL EXTRA ACCESSORIES RADIO, CD - PLAYER RADIO, CD - PLAYER LOUDSPEAKER LOUDSPEAKER LOUDSPEAKER LOUDSPEAKER CONTROL CAMERA BACKUP CAMERA ANTENNA ALERT SYSTEM VIDEO AND TV SYSTEM VIDEO AND TV SYSTEM MICROPHONE MICROPHONE EXTRA ACCESSORIES SHEET METAL OUTSIDE SHEET METAL OUTSIDE MUD FLAP MUD FLAP MUD FLAP MUD FLAP MUD FLAP MUD FLAP MUD FLAP SHEETMETAL DRIVER MOTOR ENCAPSULATION ISOLATION SYNTHETIC PARTS OUTSIDE SYNTHETIC PARTS OUTSIDE SYNTHETIC PARTS OUTSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE SYNTHETIC PARTS INSIDE HEATING CIRCULATION WATER HEATING DEVICE CIRCULATING PUMP AUXILIARY HEATING FRONTBOX FRONTBOX HEATING CIRCULATION TEDDY - CIRCULATING - AIR HEATING CONVECTOR / COVERING CONVECTOR / COVERING VENTILATION VENTILATION ROOF VENTILATORS AIR CONDITIONER AIR CONDITIONING SYSTEM AIR CONDITIONER INSIDE COVER HEATING CONTROL HEATING CONTROL STRIPS OUTDOOR LUGGAGE DUMP LUGGAGE DUMP INSIDE COVER INSIDE COVER INSIDE COVER INSIDE COVER INSIDE COVER SUN ROOF - DETAIL PARTS SUN ROOF - DETAIL PARTS SUN ROOF - DETAIL PARTS PILLAR TRIM PANEL PILLAR TRIM PANEL PILLAR TRIM PANEL DASH BOARD/LEFT DASH BOARD DASH BOARD/RIGHT DASH BOARD UPPDER DECK FRONT UPPDER DECK FRONT BARRIER BARRIER BARRIER BARRIER BARRIER BARRIER, HANDRAILS BARRIER, HANDRAILS FLOOR CAP FLOOR CAP FLOOR CAP FLOOR CAP FLOOR CAP FLOOR CAP FLOOR CAP FLOOR CAP BOTTOM COVER STORAGE BOX WINDSHIELD ROLLER BLIND WINDSHIELD ROLLER BLIND SIDE WINDOW ROLLER BLIND SUN SHADES OUTSIDE MIRROR LEFT OUTSIDE MIRROR RIGHT MIRROR RIGHT OUTSIDE MIRROR LEFT INSIDE MIRROR PAYTABLES DESTINATION BOX EMERGENCY HAMMER FIRE EXTINGUISHER KITCHEN TOILET - DETAIL PARTS N3316 TOILET - DETAIL PARTS N3316 SHD RL TOILET WATER TANK SKIING TRUNK SAFE DRIVER’S SLEEPING CABIN DRIVER’S SLEEPING CABIN DRIVER’S SLEEPING CABIN CENTR. LUBRICATION SYSTEM EXTRA ACCESSORIES EXTRA ACCESSORIES EXTRA ACCESSORIES EXTRA ACCESSORIES EXTRA ACCESSORIES SPECIAL EQUIPMENT BUMPERS BUMPERS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOWS WINDOW ACCESSORIES FLAP FLAP FLAP FLAP FLAP FLAP FLAP FLAP LUGGAGE - COMPARTMENT LID SERVICE - TAB SERVICE - TAB SERVICE - TAB LUGGAGE - COMPARTMENT LID LUGGAGE - COMPARTMENT LID LUGGAGE - COMPARTMENT LID SERVICE - TAB SERVICE - TAB SERVICE - TAB SERVICE - TAB FLAP ACCESSORIES FLAP ACCESSORIES FLAP ACCESSORIES FLAP ACCESSORIES TANK - WORK OUT TANK - WORK OUT ENGINE ROOM FLAP CENTRAL LOCKING SYSTEM DOORS DOORS DOORS DOORS OUTWARD SWINGING DOOR FRONT OUTWARD SWINGING DOOR OUTWARD SWINGING DOOR OUTWARD SWINGING DOOR OUTWARD SWINGING DOOR OUTWARD SWINGING DOOR FRONT OUTWARD SWINGING DOOR FRONT OUTWARD SWINGING DOOR OUTWARD SWINGING DOOR DOORS DOOR DOOR DOOR CONTROL UNIT DOOR CONTROL UNIT DOOR CONTROL UNIT DOOR CONTROL UNIT DOOR CONTROL UNIT DOOR CONTROL UNIT DOOR CONTROL UNIT EMERGENCY LOOK EMERGENCY LOOK EMERGENCY LOOK DOOR ACCESSORIES DRIVER’S SEAT RECARO DRIVER’S SEAT ISRI DRIVER’S SEAT ISRI CO - DRIVER SEAT CO - DRIVER’S SEAT SEATING PARTS SEAT RAIL TOOLS ACCESSORIES ACCESSORIES TOW ROD

1

1

2

3

3

4

5

6

7

8

9

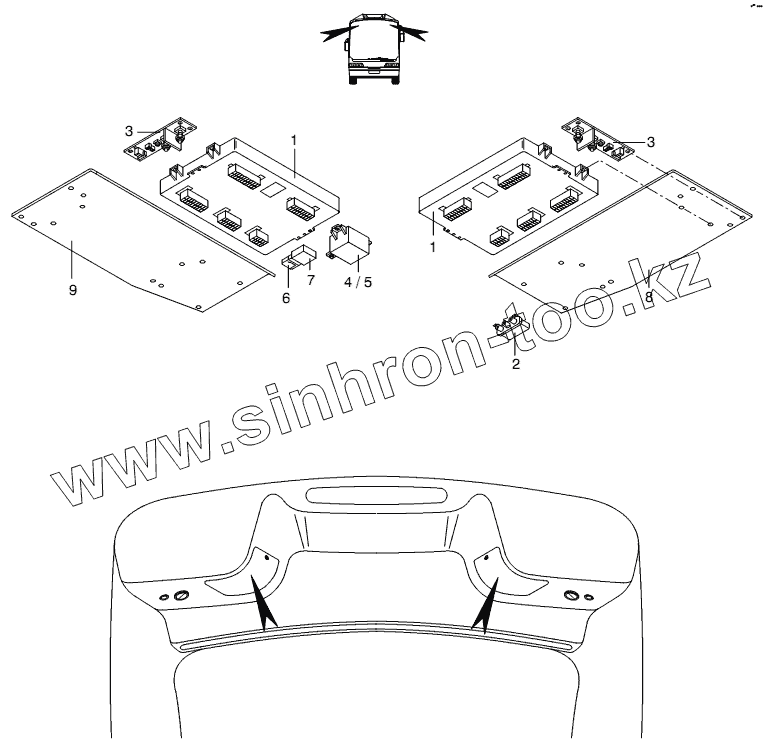

Позиция на иллюстрации	Заводской номер детали		Название детали
1	11024999		MULTIPLEX INTERFACE
2	11030026		radio antennae soft
3	11025078		central electric dispatcher
4	11025700		RELAY
5	11027088		RELAY BASE
6	11028823		FUSE 30 A
7	11028878		FUSE MOUNT
8	11025001		HOLDER LEFT
9	11025002		HOLDER RIGHT
