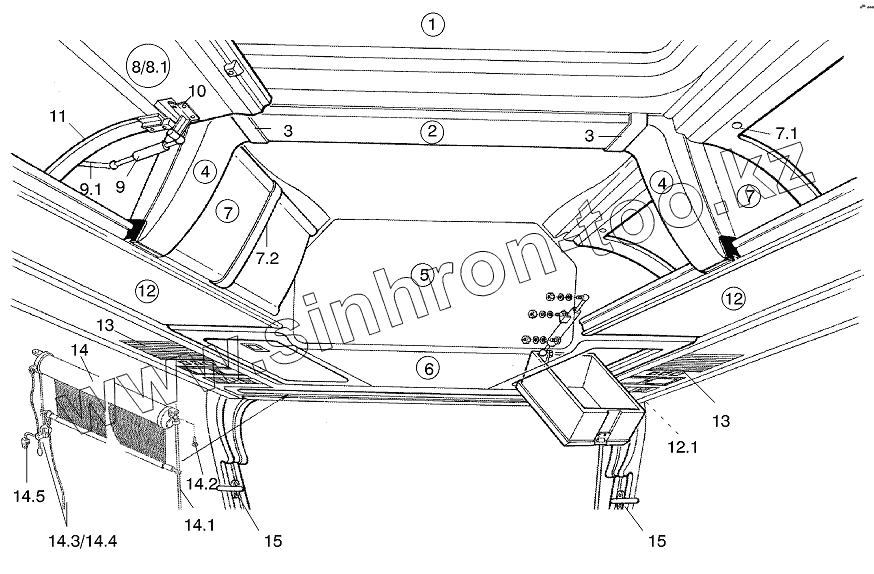

Каталог запасных частей к технике: Neoplan N 116 E2. UPPER DECK FRONT

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
4
5
6
7
7
7.1
7.2
8
8.1
9
9.1
10
11
12
12
12.1
13
13
13.1
13.2
13.3
13.4
14
14.1
14.2
14.3
14.4
14.5
15
15
Позиция на иллюстрации Заводской номер детали Название детали
1 2004.474.00 CENTER ROOF
2 1903.402.00 CENTER COVER
3 1903.405.00 RETAINER FOR INTERIOR LAMP
4 1903.404.10 COVER BRACKET
5 2004.499.20 GLASS FOR ROLLER BLIND
6 2004.499.50 ROLLER BLIND BOX VIDEO
7 2004.472.00 RETAINING AIR CHANNEL
7.1 2511.865.00 COVER, SILVER-GREY
7.2 1903.411.00 ADAPTER FOR FLAP
8 1903.015.00 LUGGAGE FLAP, LEFT
8.1 1903.014.00 LUGGAGE FLAP, RIGHT
9 1912.052.00 GAS SPRING
9.1 1903.020.00 BRACKET
10 1903.018.00 BRACKET WITH AXLE HOLDER
11 1903.019.00 BRACKET
12 1903.100.00 LUGGAGE SHELF PROFILE
12.1 CURTAIN CURTAIN SEE PRODUCTION CERTIFICATION OR EQUIPMENT
13 2004.601.00 SERVICE-SET WITH SPEAKERS, STOP BUTTON
13.1 2004.608.00 SERVICE-SET WITH SPEAKERS, POTI RELEAY, SERVICE BUTTON
13.2 2004.609.00 SERVICE-SET WITH TURNED AIR GUIDE
13.3 2004.611.00 SERVICE-SET WITH SPEAKERS, POTI, TURNED AIR GUIDE
13.4 2004.584.00 EXPANSION PLATE
14 1904.229.00 FRONT WINDOW ROLLO BLIND
14.1 1904.165.00 GUIDE BAR
14.2 5140.028.00 SCREW M5X16
14.3 1904.155.00 PULL-SHACKLE
14.4 1904.205.00 ROLLO BLIND BOX BRAK-KET
14.5 1904.210.00 BRACKET ANGLE
15 1906.412.01 CLIP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
